Drive Control
DC RS alpha
Issue 09/99
28
The three potentiometers P1 to P3 can be assigned to the motor parameters in any
way within the PLC-program. In case of standard programming they are assigned
as follows:
• P1: Speed of rotation
• P2: Ramp slope for the starting/stopping ramp and IxR compensation
(switchable via HE5)
• P3: Limit of motor current
1.2 Inputs/Outputs and BeCon Interface

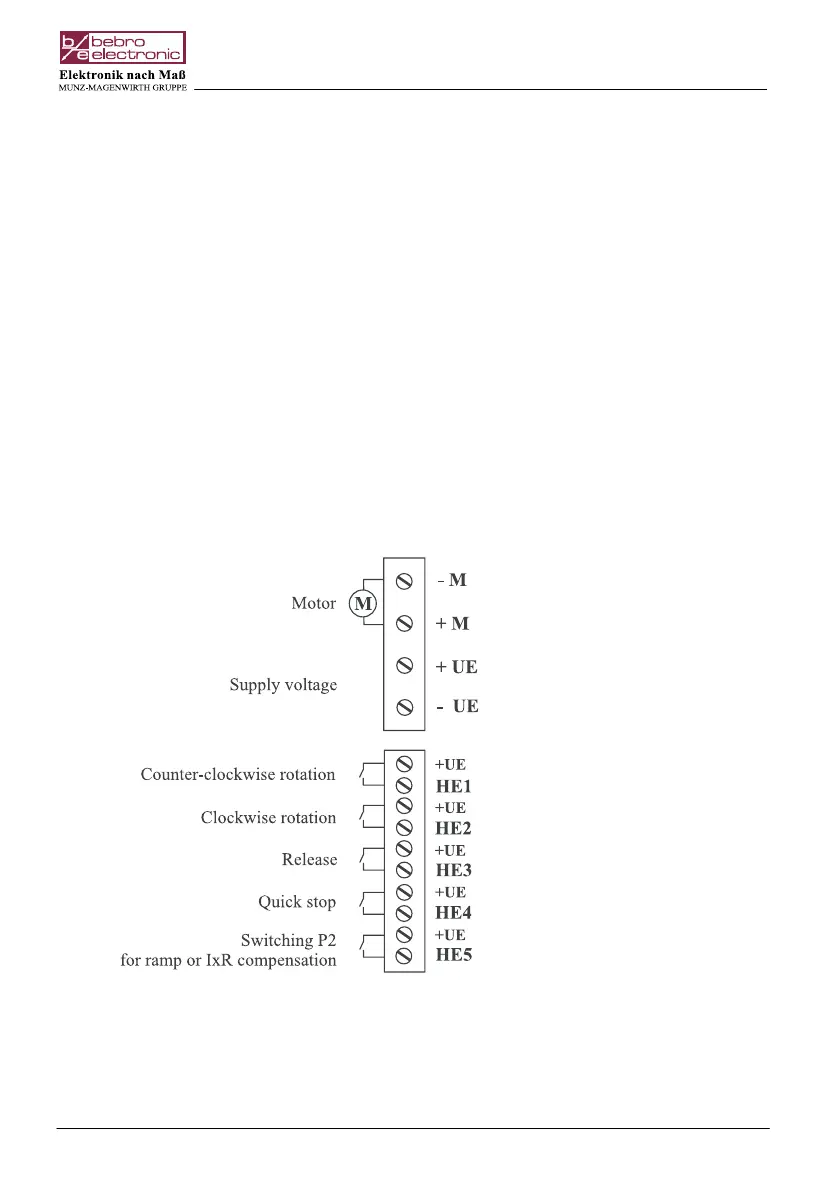

Assignment of inputs and outputs for standard programming
The following figure shows the usage of the inputs and outputs in case of
standard programming. For a detailed description of the inputs and outputs and
the possible usage refer to the following table.
