Becker Centronic TimeControl TC511 - Explanation of displays and buttons; Device interface overview

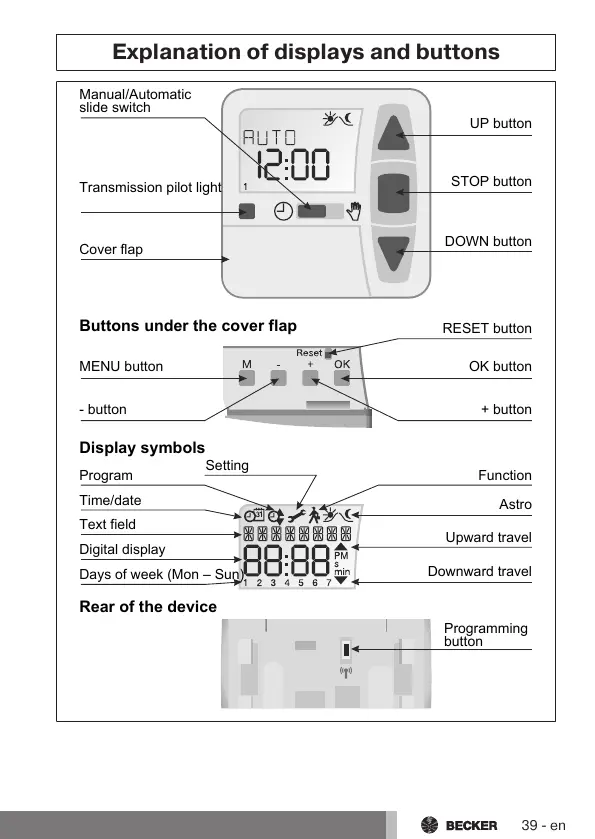

Explanation of displays and buttons
Manual/Automatic
slide switch
Transmission pilot light
Cover flap
Buttons under the cover flap
Display symbols
Rear of the device
MENU button
- button
Program
Time/date
Text field
Digital display
Days of week (Mon – Sun)
Setting
STOP button
UP button
DOWN button
RESET button
OK button
+ button
Function
Astro
Upward travel
Downward travel
Programming
button
