Type R35/8G R60/8G R120/3G
Nominal torque (Nm) 35 60 120
Output speed (min
-1
) 8 8 3
Final limit position range 36 revolutions
Mains voltage 12 V DC 24 V DC 24 V DC
Power consumption (W) 100 150 120
Nominal current consumption (A)
9 6,3 5
Operating mode
S2 4 Min.
Degree of protection
IP 44
Minimum barrel diameter (mm)
60 60 60
Information for the Electrician
Operation with individual switch
Subject to technical changes without notice
Becker tubular drives with mechanical limit switching must not be connected in parallel. For simultaneous control of several
drives use appropriate Becker controls.
Other devices or consumption units (lamps, relays, etc.) must not be connected directly to the drive connection cables. For
this purpose, the drives and additional units must be decoupled by relay controls. When installing the drive, an allpole separa-
tion capability from the mains with at least 3mm contact opening width per pole must be provided (VDE 0700).
Attention
Only use mechanically or electrically locked switching elements with a marked zero position! Protect the
electrical connections against dampness.
Becker tubular drives bear the CE mark. These drives comply with the valid EU guidelines and meet EMC regulations.
If the drive is operated with units containing sources of interference, the electrician must ensure suitable interference sup
-
pression for the relevant devices.

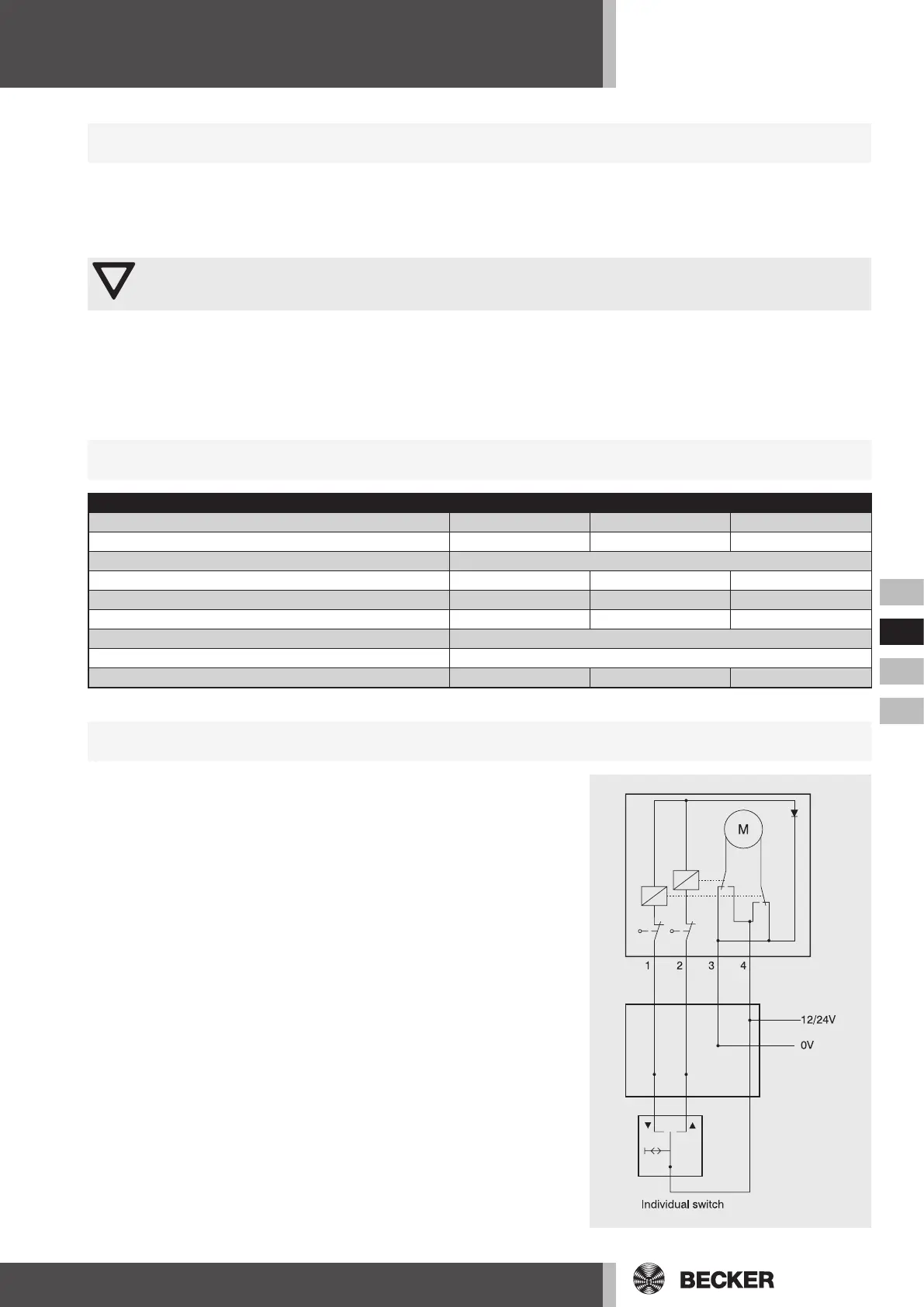

Technical data
