8

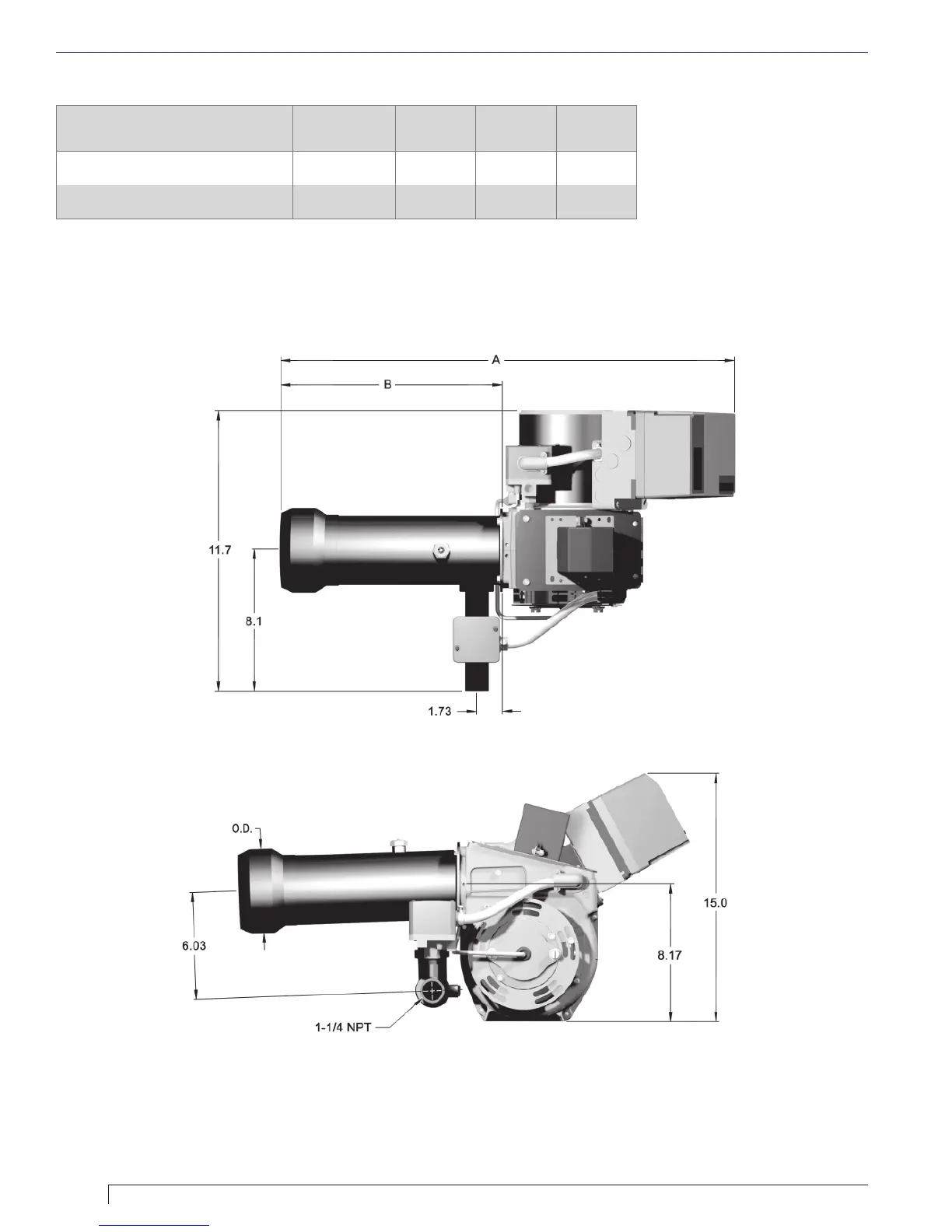

Figure 5. Burner Dimensions
Burner Model
Airtube
Dim.
A
Dim. B
O.D.
10.1 - 10.3, 10.1S - 10.3S
51927
25.0”
1
1.7”
4.43”
10.4 - 10.6, 10.4S - 10.6S
51961
25.7”
12.5”
4.61”
Section: Pre-installation Checklist
