Product Description
CP6700-0001-00x0/ CP6706-0001-00x0 7
2 Product Description
2.1 Product overview

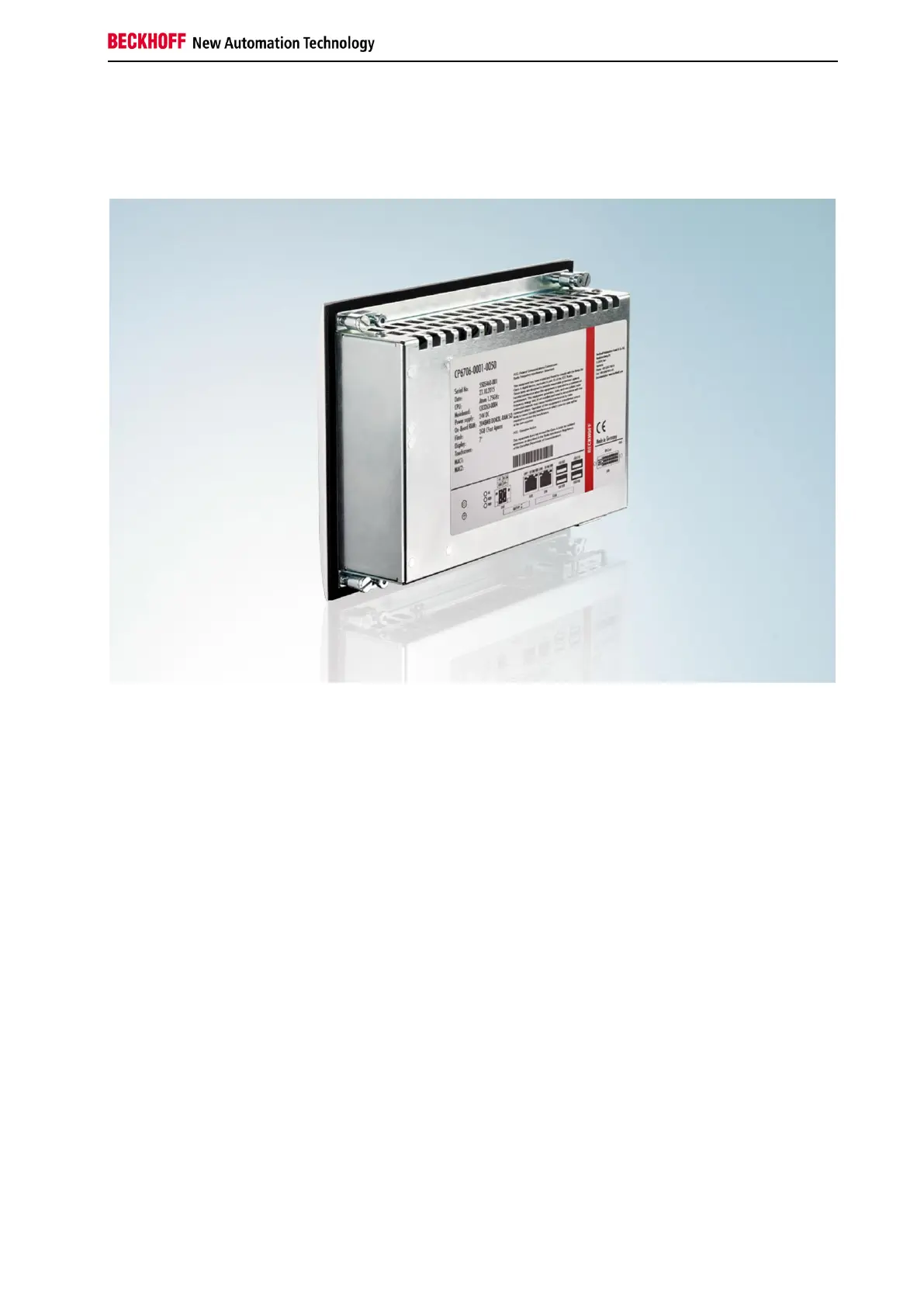

CP670x-0001-00x0 | “Economy” Panel PC
With its highly integrated 3½-inch motherboard, the CP6700-0001-00x0 and CP6706-0001-00x0 built-in
Panel PCs are ideally suited for use in machine construction and plant engineering, for example with the
TwinCAT automation software under Windows Embedded Compact 7 or Windows Embedded
Standard 7. The CP670x is conceived for installation in the front of a control cabinet and has a 7-inch or
10.1-inch touch screen display. Equipped with an Intel® Atom™ with up to four cores and a CFast card
the CP670x contains no rotary components. The CP670x is supplied with a 24 V power supply unit. The
CFast card and the lithium battery of the system clock are accessible from the rear in the connector
bracket.
The Panel PC offers the following benefits:
• aluminium front with steel sheet rear cover
• 10.1-inch TFT display, 1024 x 600 WSVGA (CP6700-0001-00x0)
or 7-inch TFT display, 800 x 480 WVGA (CP6706-0001-00x0)
• touchscreen
• all connectors at the bottom of the rear side
• 1 slot for one CFast card accessible from the rear side
• lithium battery of the system clock, accessible from the rear side
• pull-out clamping levers for fast installation without loose parts
• protection class front side IP 54, rear side IP 20
• operating temperature 0…55 °C.
