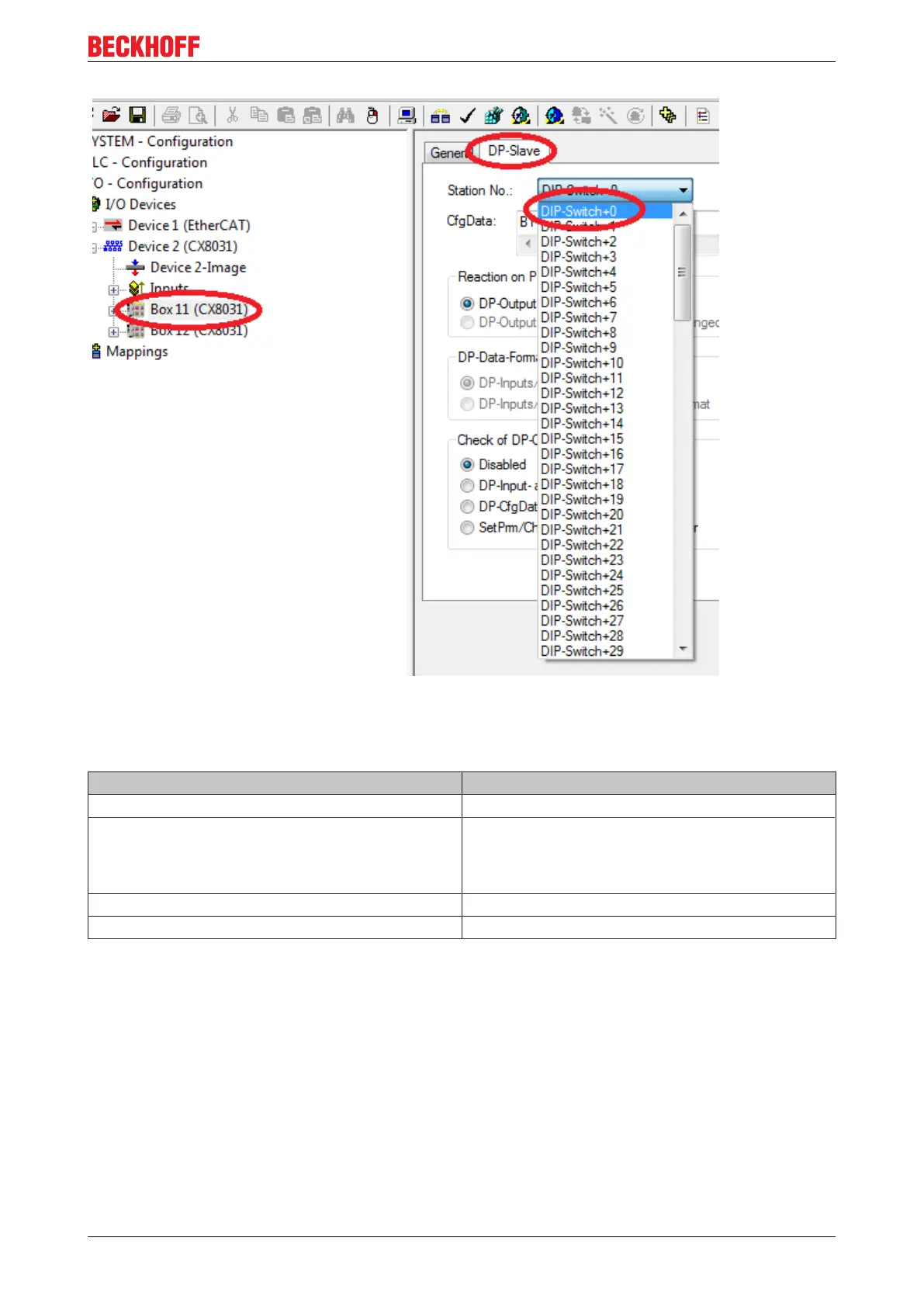

Parameterization and commissioning
CX8030 / CX8031
33
Version: 1.6
2-pole DIP switch (under the flap between the battery and the SD card slot)
Requirements
DIP switch (red)
Meaning
1 off and 2 off
normal mode, TwinCAT is started
1 on and 2 off
The CX mode starts in Config Mode; the flash
memory or, in the case of the CX80xx the SD card, is
reachable via the USB interface (for example for an
image update).
1 off and 2 on
Restore the registry
1 on and 2 on
No function so far
32
34
Table of Contents
Default Chapter
3
Table of Contents
3
1 Notes on the Documentation
5
Explanation of Symbols
6
Documentation Issue Status
7
2 For Your Safety
8
Intended Use
8
Staff Qualification
9
Safety Instructions
9
3 Transport and Storage
11
4 Product Overview
12
Cx80Xx - System Overview
12
CX8030, CX8031 - Introduction
14
Technical Data
16
Technical Data - PROFIBUS
17
Cx80Xx - Microsd Cards
19
5 Mounting and Wiring
20
Mounting
20
Dimensions
20
Installation on Mounting Rails
20
Wiring
23
Power Supply
23
Ethernet
25
Profibus
27
Changing the Battery
31
6 Parameterization and Commissioning
32
DIP Switch
32
Setting the IP Adress
34
IP Address
34
Setting the Address Via DHCP Server
34
Subnet Mask
34
Configuration
36
Cx80Xx - Operating System
36
Power Supply Terminal
38
Profibus
40
Web Services
45
Real Time Clock (RTC)
47
1-Second UPS (Uninterruptible Power Supply)
48
CPU Load
49
7 Programming
50
Library for Cx80Xx
50
Seconds UPS
50
Function Blocks
50
Data Types
53
Diagnostics
54
FUNCTION F_Cx80Xx_Address
54
Profibus
54
Cx8030
54
Cx8031
62
8 Ethernet X001 Interface
68
System Introduction
68
Ethernet
68
Topology Example
70
ADS-Communication
71
9 Profibus
73
System Overview PROFIBUS
73
Fieldbus Overview
76
Profibus Dp
80
Profibus Dpv1
81
Cables, Plugs and Switches
82
Topology
85
10 Error Handling and Diagnosis
86
LED Indicators
86
11 Appendix
89
First Steps
89
Image Update
94
Certification
96
Fcc
97
Bibliography
98
List of Abbreviations
99
Support and Service
100
