Programming
CX8030 / CX8031 55Version: 1.6

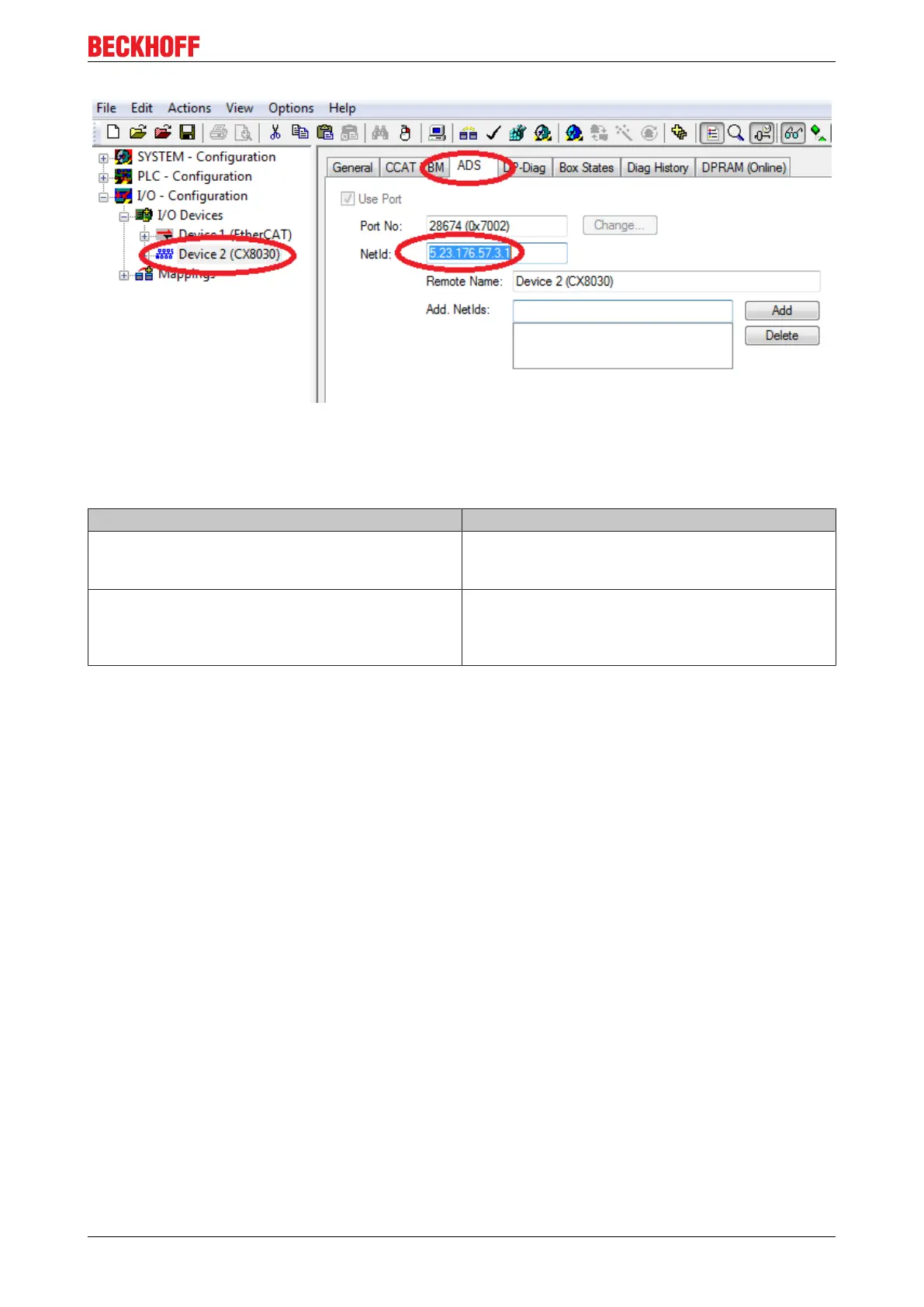

ADS Interface
All acyclic data are transmitted to or from the CX8030 via ADS-Read, ADS-Write or ADS-Write-Control. The
CX8030 has its own Net-ID and supports the following ports:
Port Description
200 Addresses the PROFIBUS interface itself, i.e. data
stored locally on the PROFIBUS interface, for which
usually no additional bus access is required.
0x1000 - 0x107E Addresses a connected PROFIBUS device, whereby
the address is calculated from port 0x1000 (or
0x1000 + slave address); always includes bus
access.
ADS-Read
An overview of the IndexGroups/IndexOffsets supported by the CX8030 during ADS-Read is provided below.
