Appendix
CX8030 / CX803192 Version: 1.6

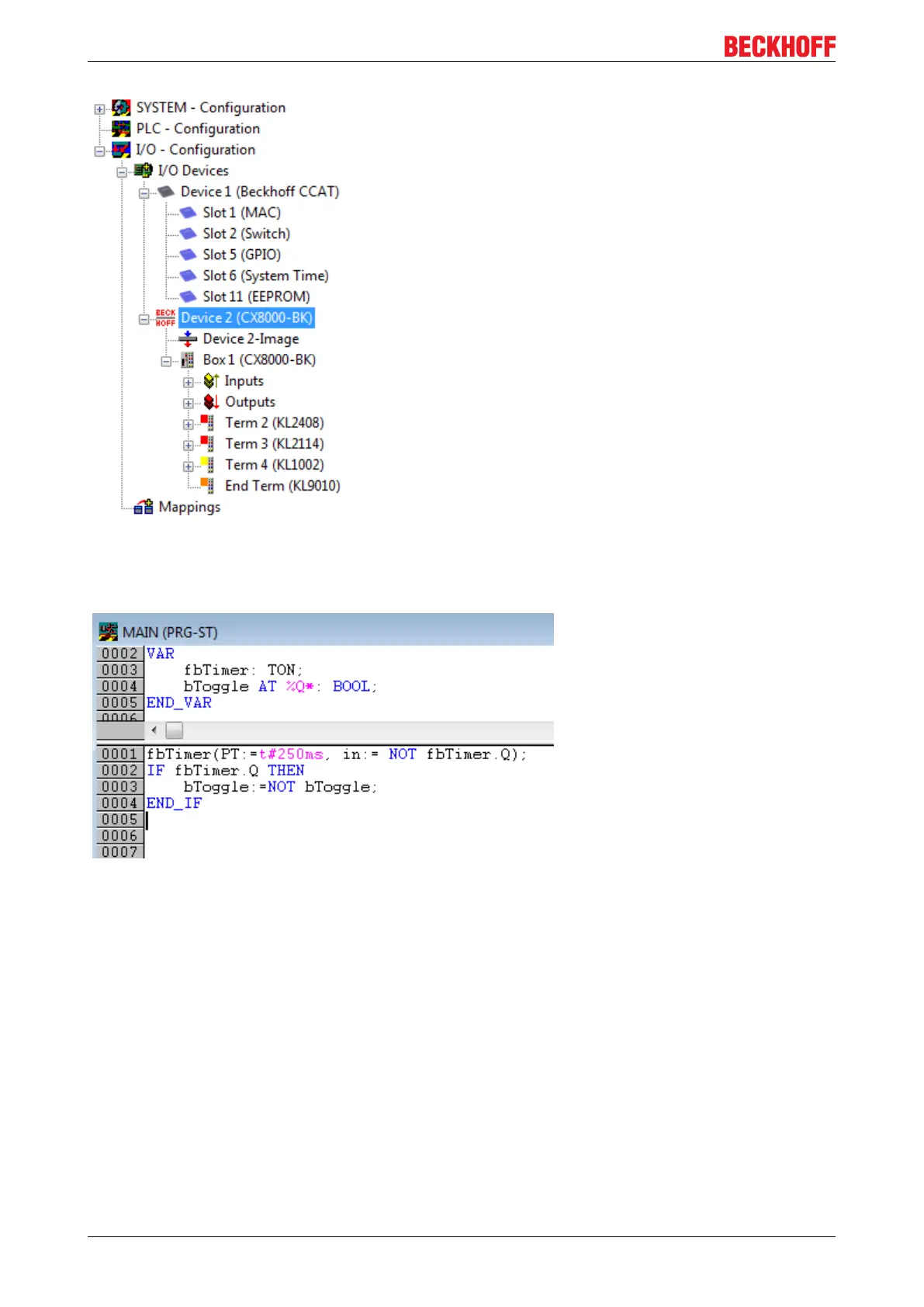

17. Now we come to the programming. To do this, open the PLC Control and select File -> New. The PLC
Control asks you for the target system. Select CX (ARM). Afterwards it asks you for the function block; set
the ST language (structured text). Now write a small program...
Translate the program. If it is error free (a warning must come, that it is OK) save the project under an
arbitrary name, translate it again and save it once again.
18: Switch once again to the System Manager and add the program under PLC - Configuration. A
FileName.typ file is sought.
19: Now open the project, then the task and then outputs, in which there must be a variable MAIN.bToggle.
You can link this with the hardware. To do this, click on "Linked to...".
