Appendix
CX8030 / CX8031 89Version: 1.6
11 Appendix
11.1 First steps
The following components are necessary for the first steps
• PC with TwinCAT 2.11 R3
• Ethernet cable
• Power supply (24 V
DC
), cabling material
• a KL2xxx or an EL2xxx, digital output terminal, end terminal
Note
Required TwinCAT version
TwinCAT 2.11 R3 is required for the programming of the CX80xx series. Older TwinCAT
versions and TwinCAT 3.x are not supported!
1. Connect K-bus or E-bus terminals to the controller.
2. Connect voltage to the CX80xx (see power supply [}23]).
3. Connect Ethernet (CX80xx X001) to your network or a direct connection to your PC (make sure in the
case of a peer-to-peer connection that the IP addressing in your PC is set to DHCP).
4. Wait a while, approx. 1 to 2 minutes; either the CX80xx will be assigned an address by the DHCP server
(usually fast) or, if it does not find a DHCP server, it uses a local IP address.
5. Switch on TC on the PC in Config Mode (TwinCAT icon blue) and start the System Manager

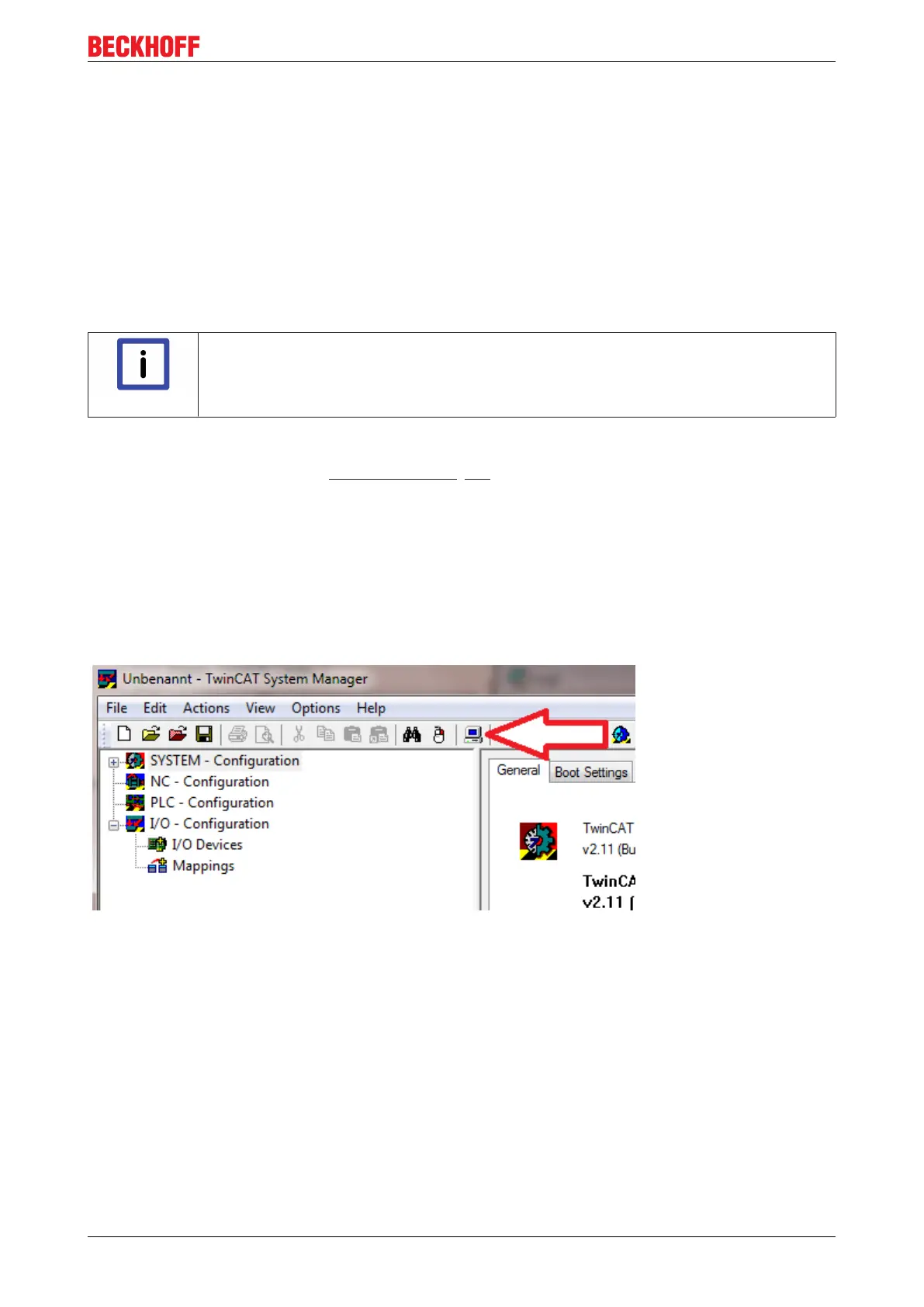

6. In the System Manager, click on the PC symbol (Choose Target System) or press >F8<
7. The following dialog box opens; click on Search (Ethernet).
