Parameterization and commissioning
EL6731 103Version: 2.8

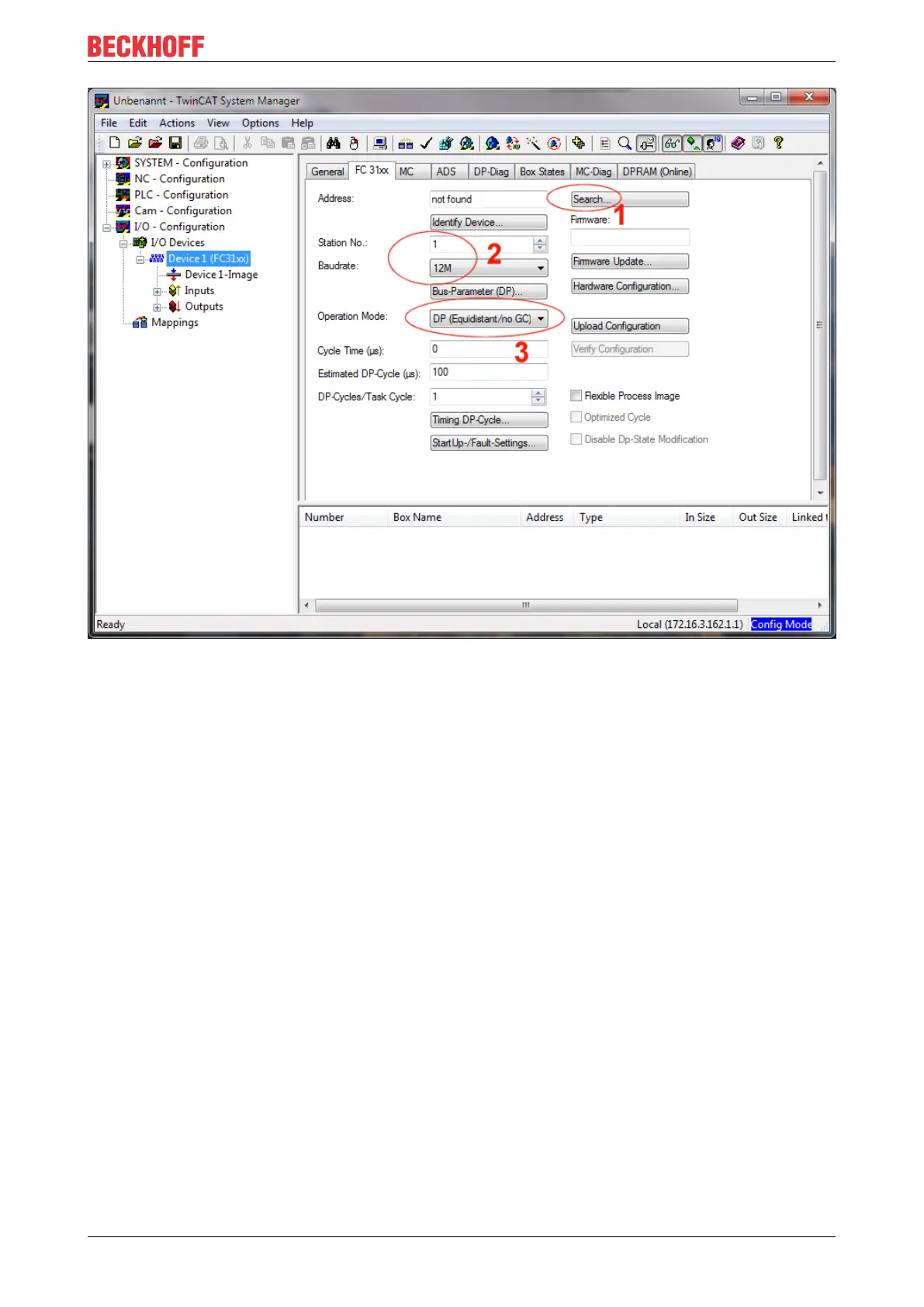

Fig.102: Configuration 1
(1) The card address must be determined later during commissioning. The firmware version of the FC310x
Profibus card should be 2.58 or higher, for the FC3151 2.5b or higher.
(2) The station address of the fieldbus master is preset to 1. Avoid address conflicts with other devices (e.g.
a programming device with the STARTER software) and check the baud rate setting (12M).
(3) The mode must be set to DP/MC (Equidistant).
