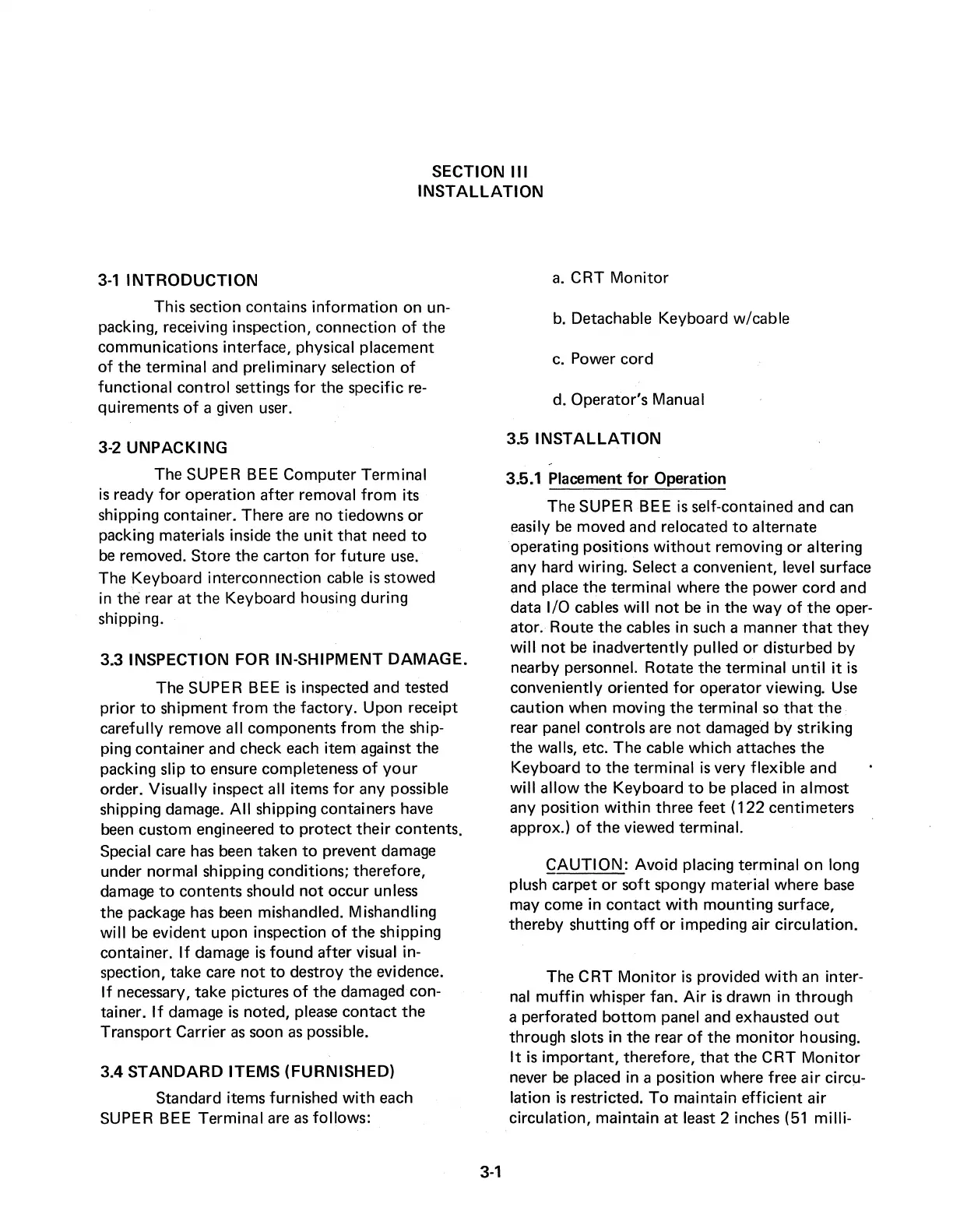

SECTION
Ill
INSTALLATION
3-1
INTRODUCTION
This section contains
information
on un-
packing, receiving inspection, connection
of
the
communications interface, physical placement
of
the terminal and preliminary selection
of
functional
control
settings
for
the specific
re-
quirements
of
a given user.
3-2
UNPACKING
The SUPER BEE Computer Terminal
is
ready
for
operation after removal
from
its
shipping container. There
are
no tiedowns
or
packing materials inside the
unit
that
need
to
be
removed. Store the carton
for
future
use.
The Keyboard interconnection cable
is
stowed
in the rear at the Keyboard housing during
shipping.
3.3 INSPECTION FOR IN-SHIPMENT
DAMAGE.
The SUPER BEE
is
inspected and tested
prior
to
shipment
from
the
factory.
Upon receipt
carefully remove all components
from
the ship-
ping container and check
each
item against the
packing slip
to
ensure completeness
of
your
order. Visually inspect all items
for
any possible
shipping damage.
All
shipping containers have
been
custom engineered
to
protect
their
contents.
Special care
has
been
taken
to
prevent damage
under normal shipping conditions; therefore,
damage
to
contents should
not
occur unless
the package
has
been
mishandled. Mishandling
will
be
evident upon inspection
of
the shipping
container.
If
damage
is
found
after visual in-
spection, take care
not
to
destroy the evidence.
If
necessary, take pictures
of
the damaged con-
tainer.
If
damage
is
noted,
please
contact the
Transport Carrier
as
soon
as
possible.
3.4
STANDARD
ITEMS
(FURNISHED)
Standard items furnished
with
each
SUPER BEE Terminal
are
as
follows:
3-1
a.
CRT
Monitor
b.
Detachable Keyboard w/cable
c.
Power cord
d. Operator's Manual
3.5
INSTALLATION
3.5.1 Placement
for
Operation
The SUPER
BEE
is
self-contained and
can
easily
be
moved and relocated
to
alternate
operating positions
without
removing
or
altering
any hard wiring. Select a convenient, level surface
and place the terminal where the power
cord
and
data 1/0 cables
will
not
be
in the way
of
the oper-
ator. Route the cables in such a manner
that
they
will
not
be
inadvertently pulled
or
disturbed by
nearby personnel. Rotate the terminal
until
it
is
conveniently oriented
for
operator viewing.
Use
caution when moving the terminal
so
that
the
rear panel controls are
not
damaged
by
striking
the walls, etc. The cable which attaches
the
Keyboard
to
the terminal
is
very
flexible
and
will
allow
the Keyboard
to
be
placed in almost
any position
within
three feet ( 122 centimeters
approx.)
of
the viewed terminal.
CAUTION:
Avoid
placing terminal on long
plush carpet
or
soft
spongy material where
base
may come in contact
with
mounting
surface,
thereby shutting
off
or
impeding air circulation.
The
CRT
Monitor
is
provided
with
an
inter-
nal
muffin
whisper fan.
Air
is
drawn in through
a perforated
bottom
panel and exhausted
out
through slots in the rear
of
the
monitor
housing.
It
is
important,
therefore,
that
the
CRT
Monitor
never
be
placed in a position where free
air
circu-
lation
is
restricted.
To
maintain
efficient
air
circulation, maintain
at
least 2 inches
(51
milli-
