of data on J12 and J14 ports. J14 pin 10 must not
be connected if the J12 port is connected. Also,
note that J 14 pin 4 can be used as an extra RS232
level output with J14-5 used as an extra input.
The input mode and interface, if applicable,
utilized determine the pin configuration. This
information can be found in Section 4.4.15 of the
maintenance manual.

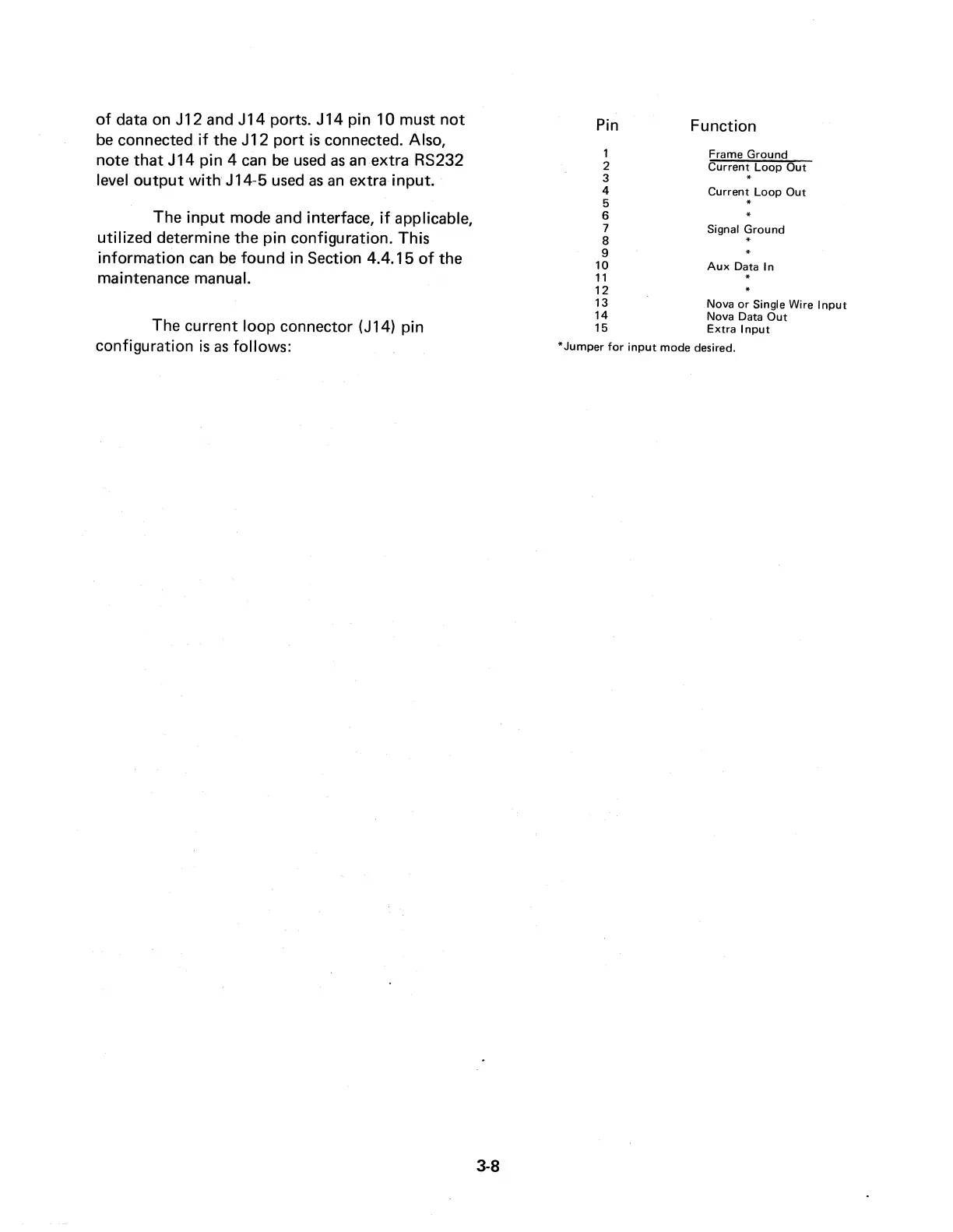

The current loop connector (J14) pin
configuration is as follows:
3-8
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Function
Frame Ground
Current Loop Out
*
Current Loop Out
*
Signal Ground
*
*
Aux Data In
*
Nova or Single Wire Input
Nova Data Out
Extra Input
*Jumper for input mode desired.
