22

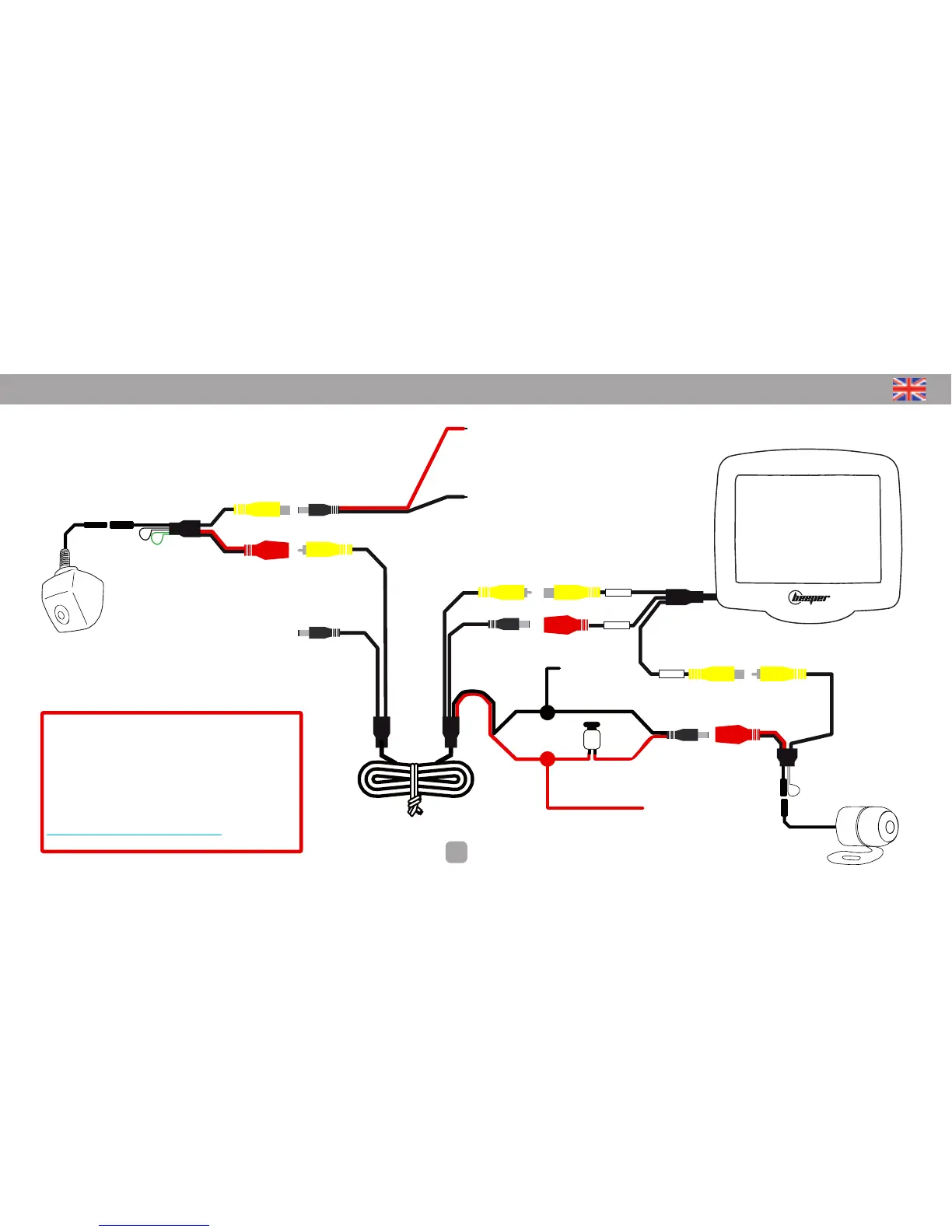

4. SYSTEM CONNECTION (if additional camera)
DC12V
CAM 1
Video
Alimentation
Video
Alimentation
Back camera
CAM1
Monitor
RED WIRE
+12V Reversing light
BLACK WIRE
Ground
Do not connect & ISOLATE
Please protect this connector so that it does not
come into contact with a metal part of the vehicle
CAM 2
Vidéo
Alimentation
RED
+12 After ignition
BLACK
GROUND
Front camera
CAM2
Switch (2) control of the front
camera and the screen
loop:
• White (1) mirror camera
WARNING • VEHICLES NOT ALLOWING AN EXTRA POWER
CONSUMPTION ON REVERSE LIGHT
On some vehicles, the +12 V Reversing light is noisy when the engine is running
that may interfere with proper operation of the parking sensors or reversing
camera kit.
In other cases, +12 V Reversing light allows no additional power consumer.
For these vehicles, BEEPER has developed the RCANR2 module to retrieve
information +12V Reversing light from the CANBUS network. This module connects
to the CANBUS compatible carrier and can deliver a +12 V Reversing light for
connecting a parking sensor or a backup camera
Ref : RCANR2, more info & list of compatible cars, please follow the link :
http://www.beeper.fr/radar-camera-de-recul/rcanr2.php
For the selection
of the loops of
the camera see
page 8
8 m. cable
For long vehicles, an extension of 8 m. are
optional Model: RX40 / 8
For the selection
of the loops of
the camera see
page 8
