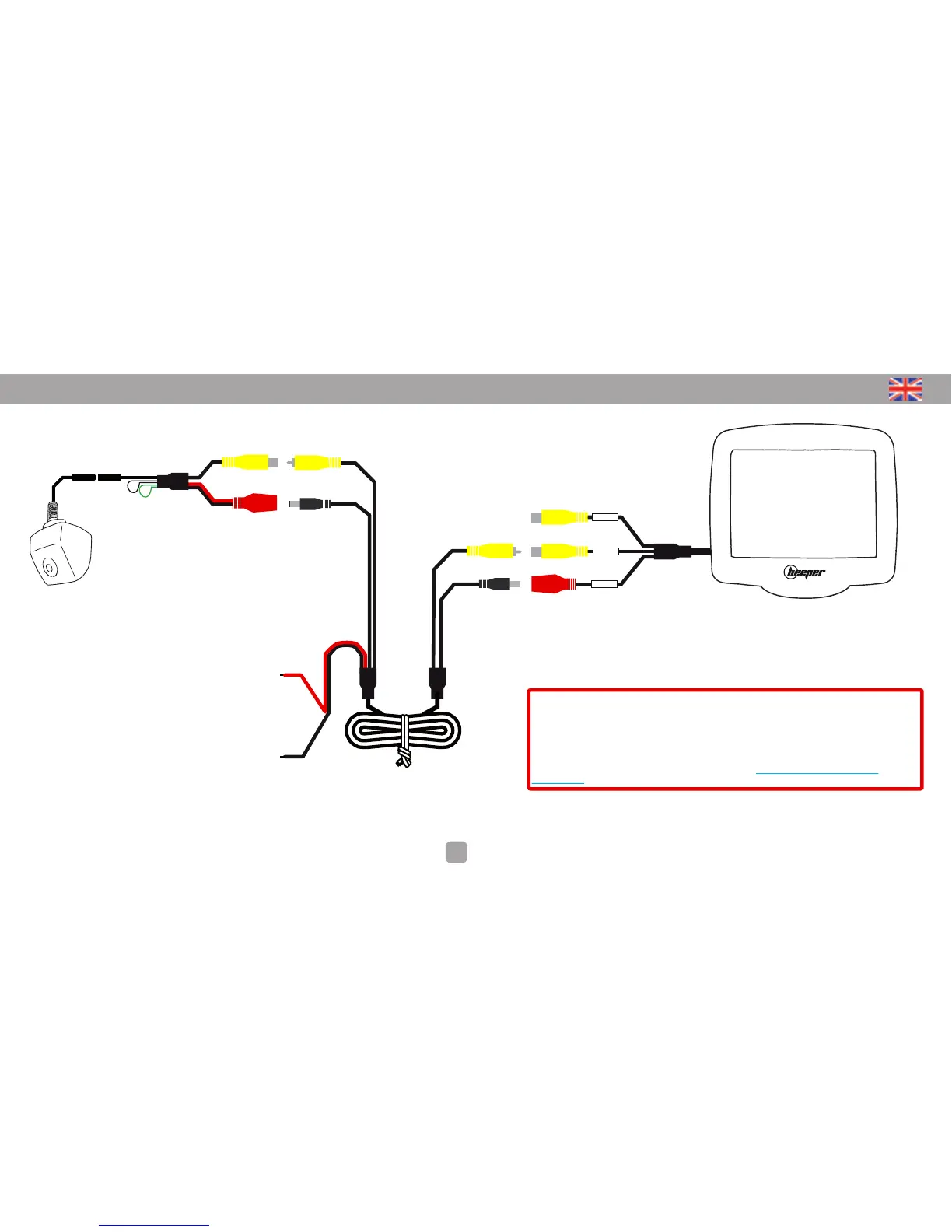

4. SYSTEM CONNECTION
RED WIRE
+12V Reversing light
BLACK WIRE
Ground
CAM 2
DC12V
CAM 1
8 m. cable
For long vehicles, an extension of 8 m. are
optional Model: RX40 / 8
WARNING • VEHICLES NOT ALLOWING AN EXTRA POWER CONSUMPTION ON REVERSE LIGHT
On some vehicles, the +12 V Reversing light is noisy when the engine is running that may interfere with proper operation of the
parking sensors or reversing camera kit.
In other cases, +12 V Reversing light allows no additional power consumer.
For these vehicles, BEEPER has developed the RCANR2 module to retrieve information +12V Reversing light from the CANBUS
network. This module connects to the CANBUS compatible carrier and can deliver a +12 V Reversing light for connecting a
parking sensor or a backup camera
Ref : RCANR2, more info & list of compatible cars, please follow the link : http://www.beeper.fr/radar-camera-de-
recul/rcanr2.php
For the selection
of the loops of
the camera see
page 8
