Beeper XRAY XR2 - Page 15

SYSTEM SETUP
15

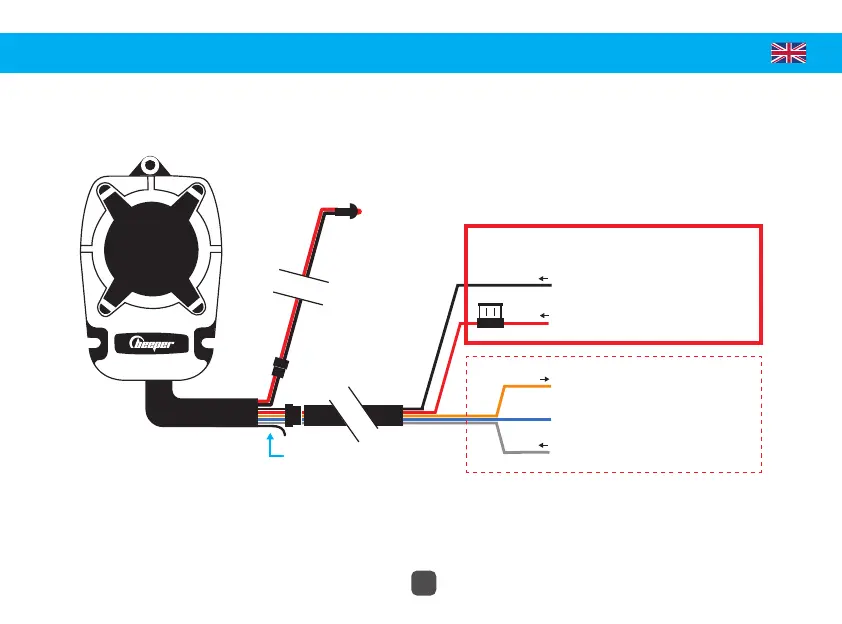

Central siren
Antenna
(do not connect)
10 cm
Indicator LEDs
200mA (-)
Perimetry (-)
+12V AFTER CONTACT
2 m
2 m
87A
30
Ground (-)
+12V Battery
BLACK
RED
ORANGE
BLUE
WHITE
Connections
MANDATORY
Connections
OPTIONAL
(see details
on page 18)
+12V battery
