On tedder model DRP-480, assemble the pull type hitch by attaching the turnbuckle to
the top hitch connecting point and securing it in place with the bolt M16x70 and the
elastic stop nut M16. Line up the lower hitch yokes with holes in the lower arm brackets,
insert the bolts M14x90 and tighten it using the supplied elastic stop nuts M14. Attach
the support stand and lock it in place with the pin provided (see fig. 4).
Adjust the rotary tedder’s working height by turning the handle on the turnbuckle until
the tines are barely touching the ground (see fig. 4).
CAUTION: While disconnecting tedder from the tractor, always keep the machine
with the weight leaning towards the front hitch so that the tedder does not fall
backwards.
OPERATION 13 BEFCO
R
OTARY TEDDERS OPERATOR’S MANUAL

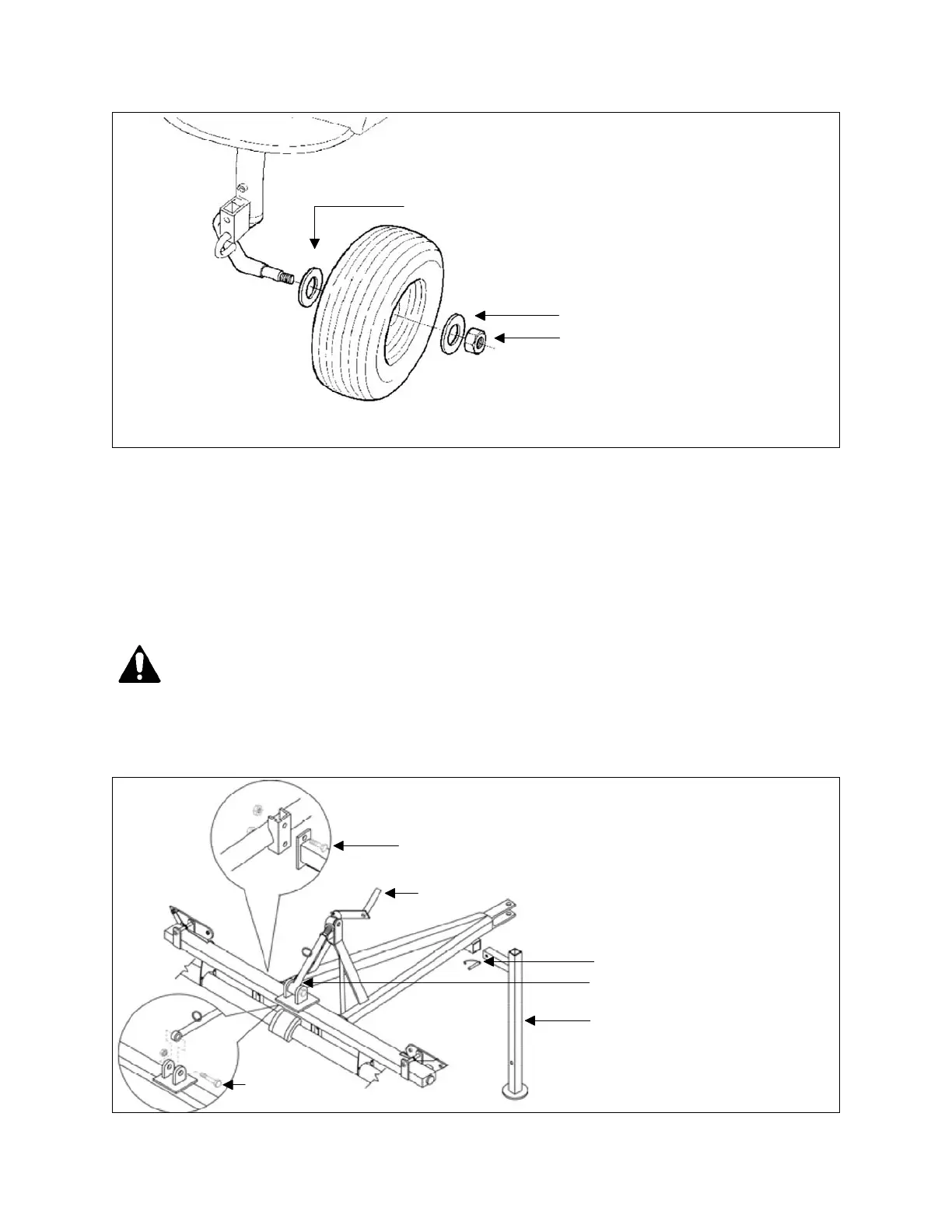

Fig. 3 - Wheel assembly.
nut M16
outer cover
inner cover
Fig. 4 - DRP-480 Pull type hitch.
bolt M14x50
bolt M16x70
handle
turnbuckle
support stand
cotter pin
