ASSEMBLY INSTRUCTIONS
Before Assembly
Carefully inspect the carton for shipping damage before unpacking. If
significant damage is found, keep all packaging and contact your shipper or
Befour immediately. Claims must be filed with the shipper as soon as
possible after receipt of damaged goods.
Carefully unpack the components from the shipping container. Your
scale has been shipped in one (1) carton and contains the following items:
Scale Platform with leveling feet installed
Control Console
Four (4) D-cell alkaline batteries
If the optional AC adapter is ordered with the scale, the adapter will be
included in the shipping carton with the other components.
Assembling the Scale
1. Carefully open shipping carton, platform is packaged with leveling feet facing
upwards.
2. Remove console and set it nearby.
3. Remove platform and uncoil the cable. Place platform on the floor and
position as to minimize the potential for tripping over any cables.
4. Connect the cable to USB platform port receptacle on right side of console
(see Fig. 4). The silver label side of the connector should be facing up.

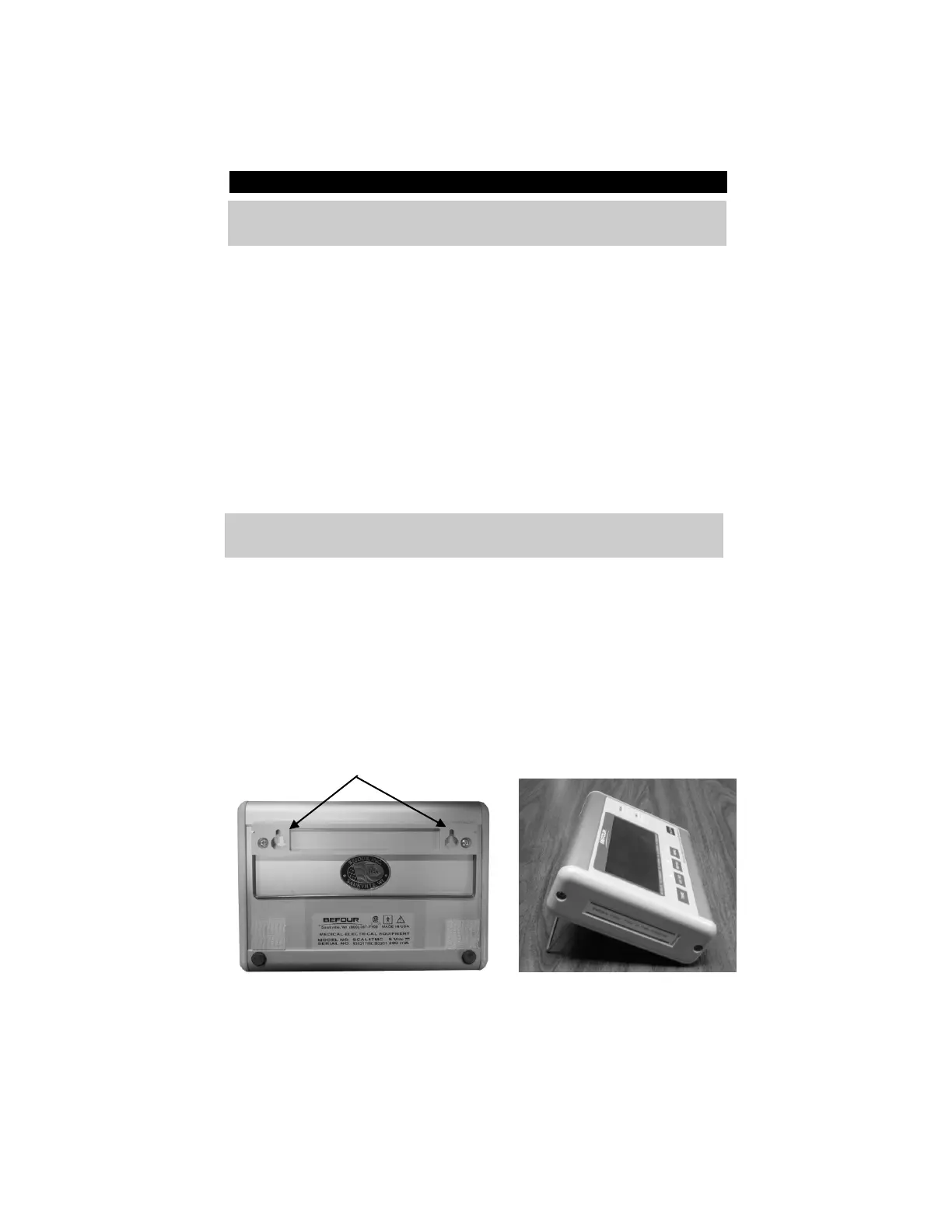

Teardrop holes
Figure 1: Wall Mounting Holes
Figure 2: Table-top Position
