15
B-CONTROL FADER BCF2000-WH
4.3.2 Programming in EDIT mode
Various types of MIDI commands (Pitchbend, After Touch, MMC
etc.) are assigned to the individual control elements in EDIT mode.
s To activate the EDIT mode, press and hold the EDIT button
and operate a control element. This can be a fader, sustain
pedal, a push encoder, a button or footswitch. The control
element is indicated in the display (e. g. Fd 8).
+ When using push encoders, select an encoder group
beforehand. In addition, you have to differentiate
between turn and push function.
s Release EDIT; you are now in the EDIT mode.
s Using the push encoders, you can now assign MIDI
commands to the selected control element. You will find all
possible MIDI function in tables 4.1 and 4.2, including all
accompanying explanations.
4. OPERATION
s If you want to assign MIDI data to additional control
elements, just press and hold the EDIT button and move
one of the control elements. Now, let go of both controls
and use the push encoders to assign a function to it (see
tables 4.1 and 4.2).
s To leave the EDIT mode, press EXIT.
+ Initially, all settings made here are stored temporarily!
If you intend to store them in a preset, please see
chapter 4.2.2.
The detailed EDIT functions are described in the following two
tables. With the assignable control elements, we differentiate
between CONTINUOUS and SWITCH types.
s CONTINUOUS-type control elements (table 4.1) include the
8 faders, the sustain pedal and the turn function of the push
encoders.
s SWITCH-type control elements (table 4.2) are buttons, press
functions for push encoders and footswitch.

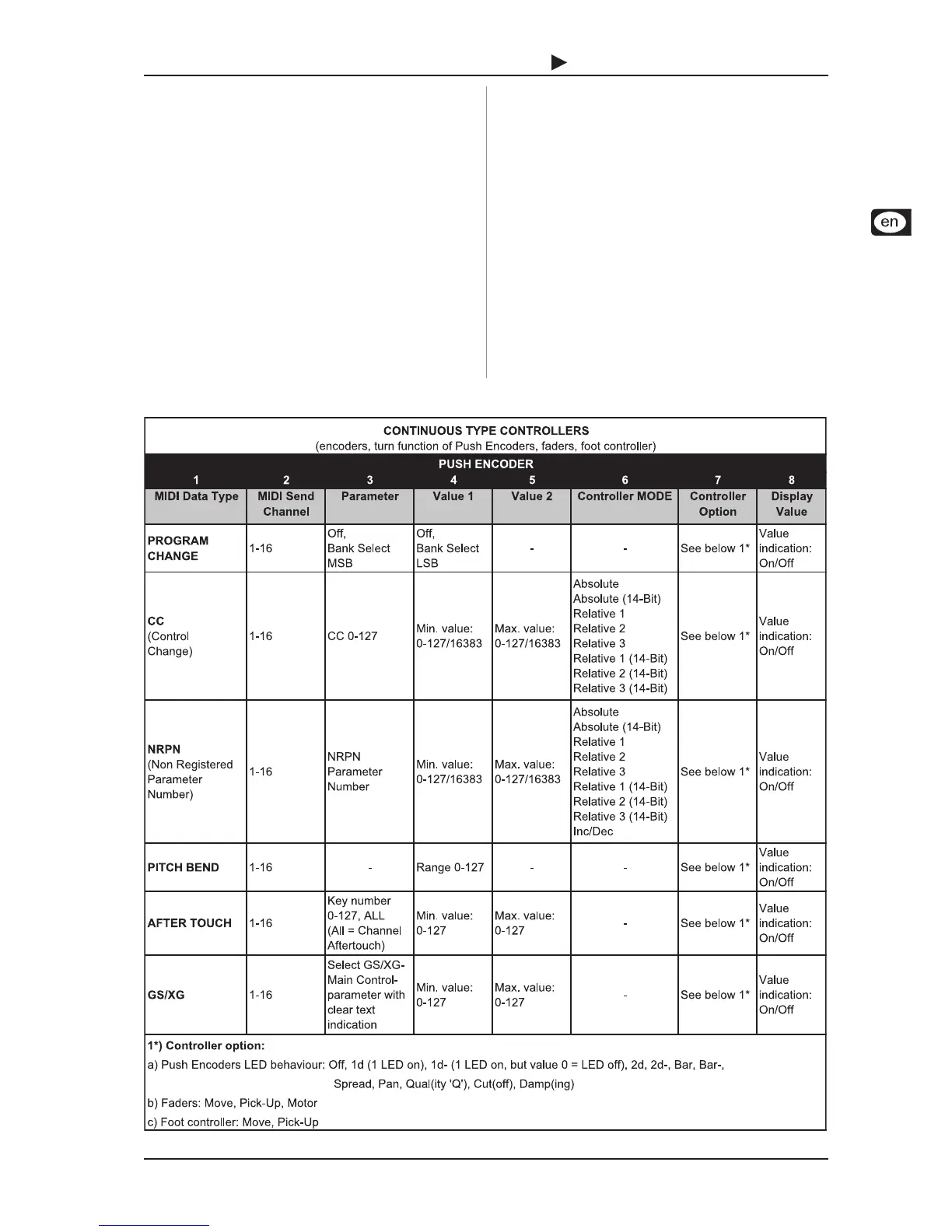

Table 4.1: Assignment of the push encoders in EDIT mode (CONTINUOUS types)
