GUITAR LINK UCG102
5 AUDIO CONNECTIONS
5 AUDIO CONNECTIONS
With the integrated USB interface, you can change your computer to an ultimate recording studio.
Whether you rehearse at home or in the studio, the used audio connections always remain the same.
5.1 Wiring
You connect the UCG102 to your guitar via a standard instrument cable.

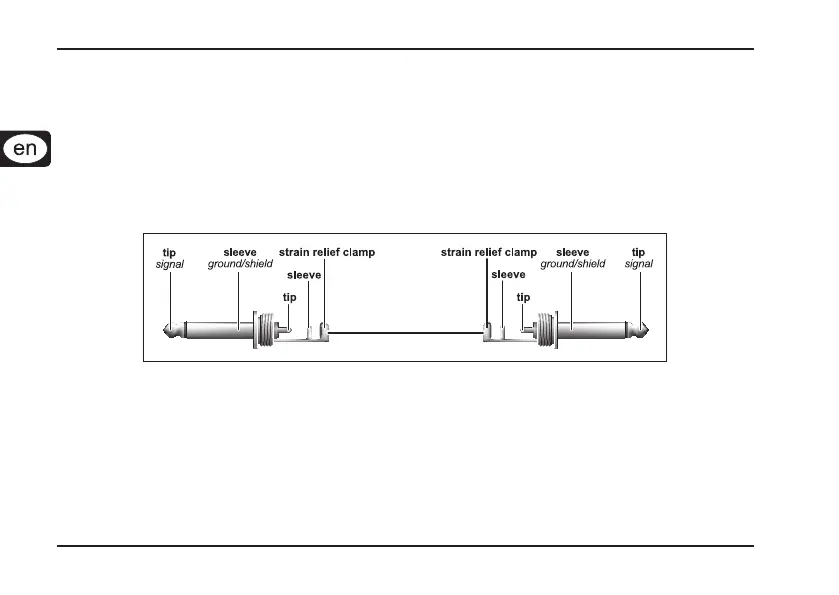

Fig. 5.1: Unbalanced instrument cable with ¼" TS connector
