Behringer iNuke NU3000 - IGBT FET Installation; Apply Solder Paste; Secure New FET






5. T1&T5shouldlooklikethiswhenfluxisremoveleavingaflatsurface.


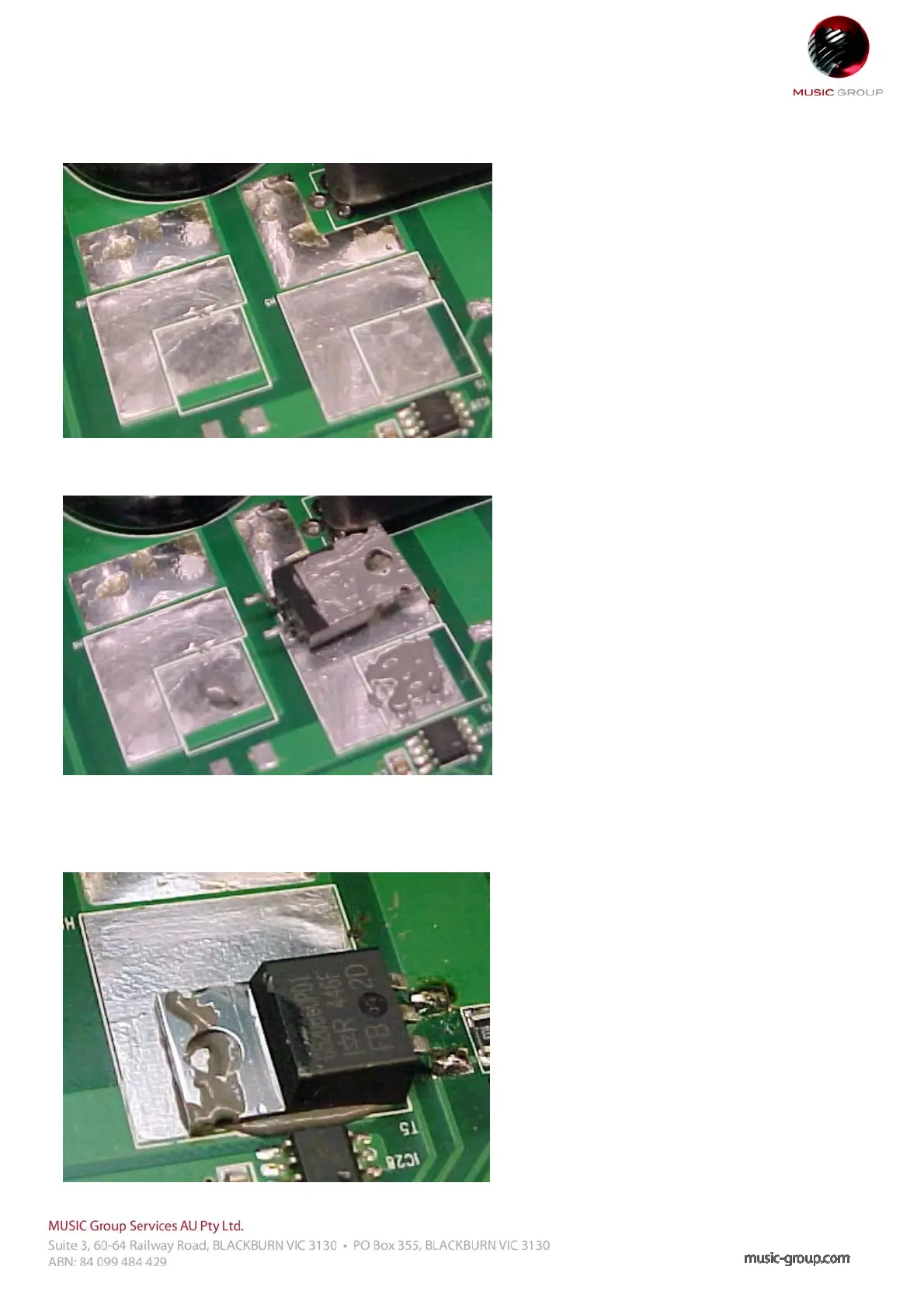

6. PlacesolderpasteonsmallsquareonPCBandalsoonrearofnewIGBTFET.

7. PlaceFETonPCBandsolderfeetintopositiontosecure.
NewFETisT
‐IRGB‐20B60PD1(S.SKUZ74‐53206‐04503)

