To increase the voltage send the Sysex command F0 00 20 32 28 F7 10 23 F7.To decrease the voltage, send the Sysex
command F0 00 20 32 28 F7 10 22 F7.Repeat until the voltage reads 1 V +/- 0.001 V. Then move on to step 10.
Send the Sysex command for ASSIGN out calibration to the Neutron at 4 V. The command is F0 00 20 32 28 7F 10 21 F7.
Both 32' octave range LEDs will be ashing to indicate the Neutron is in ASSIGN out 4 V calibration mode.
Repeat step 9 until the voltage reads 4 V +/- 0.001 V. Then move onto step 12.
Save the calibration data and exit calibration mode by sending the Sysex command F0 00 20 32 28 7F 10 24 F7.
The Neutron will return to its normal operating mode.
The Neutron Delay stage is designed to give as much control and variety as possible to the user. With that in mind, it may be
necessary to tweak your Neutron to sound the way you want it to.
First, decide how much feedback you want. Adding more feedback gives the option of having the delay stage feedback on itself
creating screaming eects. This results in higher distortion through the circuit, which may be a desirable eect.
Warning! When completing this procedure please keep the level down low as it may get loud.

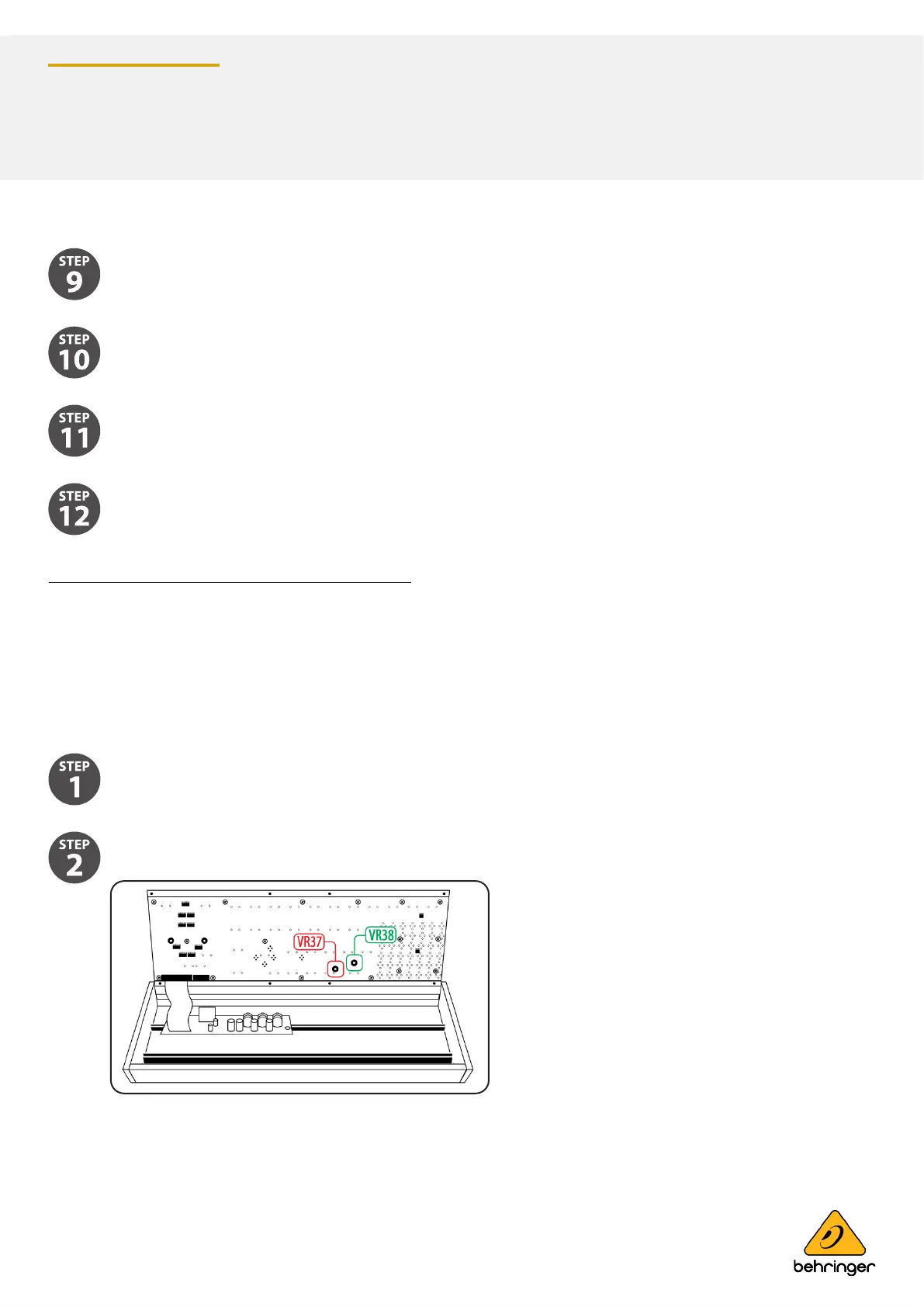

Bucket Brigade Delay Calibration
Turn o the unit.
Open the unit by removing the top 8 screws. Lift the top panel carefully from the lower edge to give access to trim pots
VR37 and VR38. Take care not to put strain on the ribbon connector.
