V-AMP

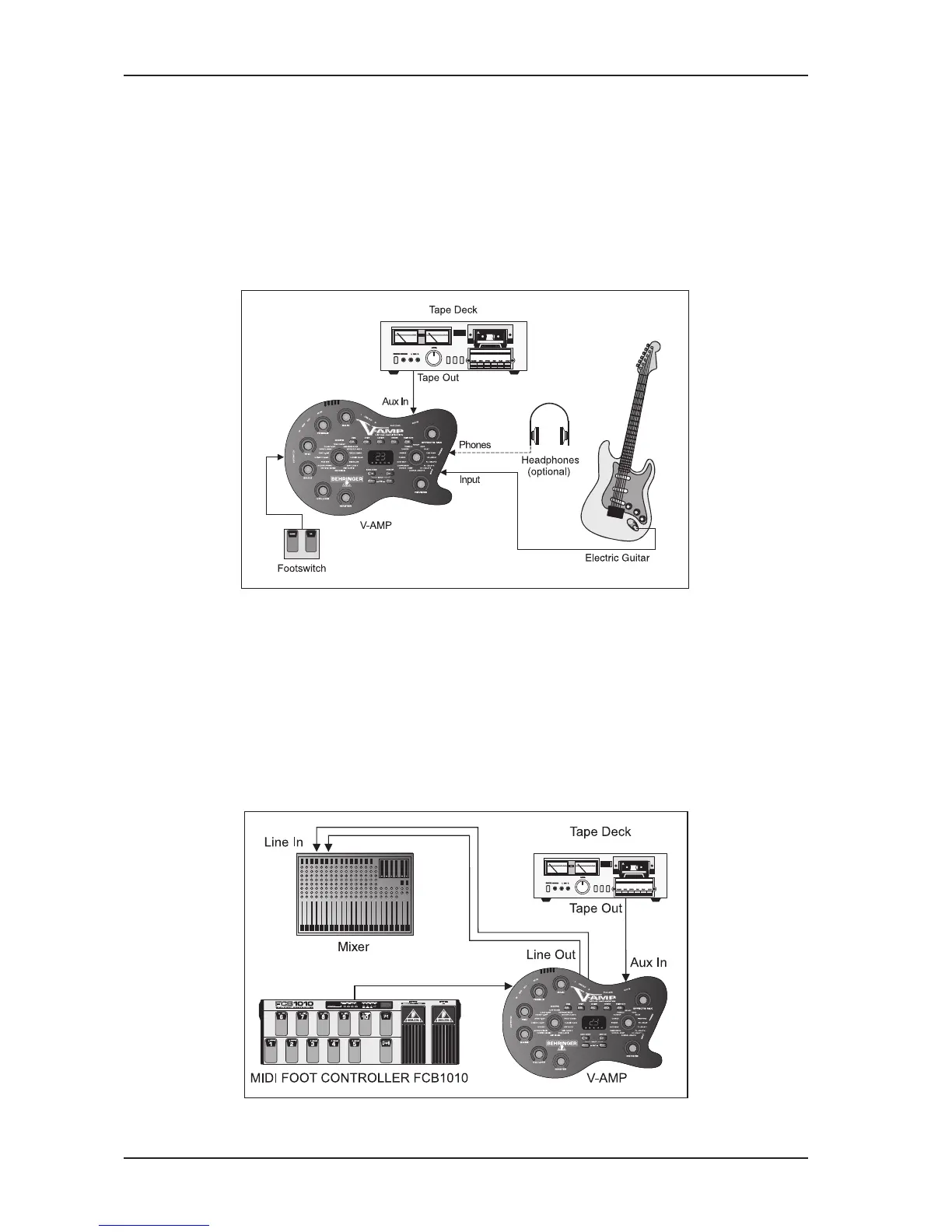

2. WIRING EXAMPLES
2.1 Standard set-up consisting of guitar, footswitch and external playback source
To use your V-AMP for rehearsals, please wire up the unit as shown in fig. 2.1. Of course, you can also use a
drum computer instead of the playback source (tape deck, etc.). Use the PHONES jack to connect a pair of
headphones. The enclosed footswitch FS112V allows you to select five presets from one bank or activate the
tuner.
Fig. 2.1: Standard set-up
2.2 Expanded set-up with MIDI foot controller, playback source and mixing console
For more sophisticated applications, e.g. on stage or for rehearsals with a band, you should try this wiring
configuration. Of course, this expanded configuration builds on the standard set-up described in chapter 2.1.
Use the MIDI foot controller to change presets, banks and amp models, or the tuner. The LINE OUT signal can
be fed into a P.A. or recording console, and the AUX input can be used to play back an additional stereo signal.
Fig. 2.2: Expanded set-up
2. WIRING EXAMPLES

Behringer V-AMP Specifications

General

Amp Models	32
Form Factor	Desktop
Type	Guitar Amp Modeler
Effects	15
Inputs	1 x 1/4"
Outputs	1 x 1/4" (headphones)
MIDI	In, Out
Footswitch I/O	1 x 1/4" (footswitch)
Power Supply	9V DC adapter
