USB type-A connector providing le
storage and uncompressed stereo
recordings plus show presets and
system updates
ULTRANET connectivity for
BEHRINGER’s P-16 Personal
Monitoring System**
Networked remote control for show
setups with on-screen software
editorvia Ethernet
Built-in expansion port for audio
interface cards or digital
networkingbridges
MIDI In/Out for remote scene recall
orcontrolling other MIDI equipment
Future rmware updates, incl.
newFX“Plug Ins”, downloadable
frombehringer.com free of charge
Conceived and designed by
BEHRINGER Germany
*FireWire, Mac, iPod touch, iPhone, iPad, and iPad mini are
trademarks of Apple Inc., registered in the U.S. and other countries.
The AES50 trademark is a property of the Audio Engineering Society,
NY.Alltrademarks, including, but not limited to Lexicon, PCM,
EMT, Quantecand QRS are trademarks or registered trademarks of
their respective owners. Their use neither constitutes a claim of the
trademark nor aliation of the trademark owners with MUSIC Group.
Productnames are mentioned solely as a reference for X32 RACK
compatibility andeects.
**P16 Personal Monitoring System and Digital Snake are not included.

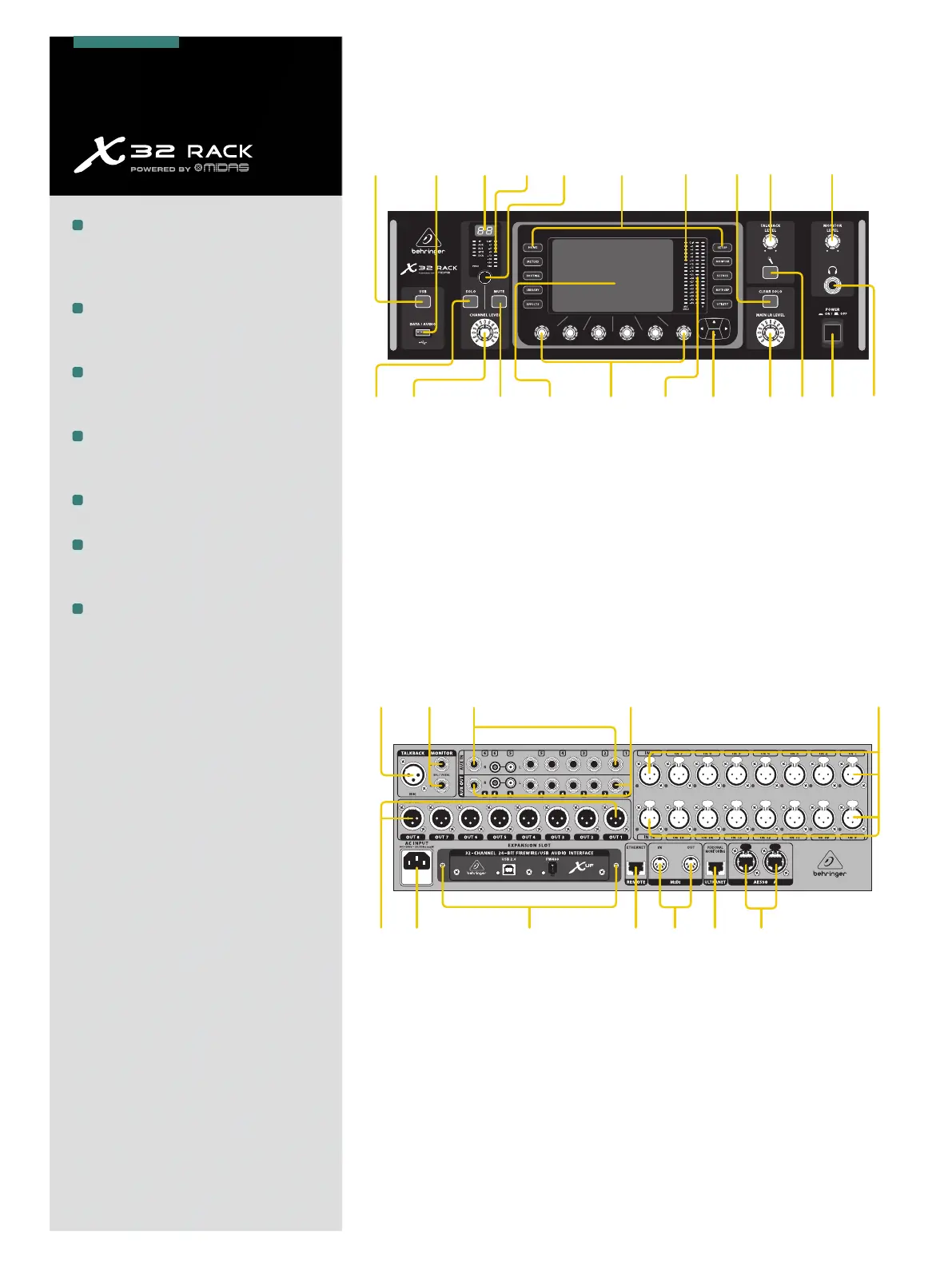

Front Panel Controls
Rear Panel Input/Output Patchbay
USB
storage
and
setup
USB
socket for
rmware
updates
and
recording
Selected
channel’s
number
Selected
channel’s
level
meter
Input/
Auxiliary/
Bus/Matrix/
DCA selector
Solo
button
Mute
button
Input
Level
adjust
TFT
display
selection
buttons
Talkback
Level
control
Monitor/
Phones
Level
control
Phones
input
Power
switch
Talkback
control
Main
Stereo
Bus
Level
control
Clear
Solo
button
TFT display
navigation
controls
TFT display
rotary
encoders
(include
button push
capability)
Selected
channel’s
level meter
Color TFT
display
Mono
Bus/Solo
level
meter
External
Talkback
Mic input
Monitor/
Control
Room
outputs
Auxiliary
Input
connectors
(¼" and RCA)
Auxiliary
Output
connectors
(¼" and RCA)
Assignable
Output
connectors
(XLR)
outputs
IEC
Power
socket
Option card
and slot
Channel
Input
connectors
(XLR)
Ethernet
connector
MIDI I/O
ULTRANET
output
AES50 A/B Bi-
Directional Ports

Behringer X32 Rack Specifications

Processing and Input Characteristics

main screen resolution	800x480
THD + noise	< 0.006% A-weighted
input impedance XLR	5 kΩ / 10 kΩ
non clip maximum input level, XLR	+23 dBu
equivalent input noise level	-128 dBu
CMRR, XLR, @ 20 dB gain	> 70 dB
CMRR, XLR, @ 40 dB gain	> 80 dB

Power

phantom power	48 V
power supply	100-240 V (50/60 Hz)
power consumption	120 W

Audio Characteristics

frequency range	10 Hz - 22 kHz
dynamic range, analog in	106 dB
cross talk rejection @ 1 kHz	100 dB
output level, XLR	+4 dBu / +21 dBu
output impedance, XLR	75 Ω / 75 Ω
phones output impedance / level	40 Ω / +25 dBm (stereo)
residual noise level	-87 dBu A-weighted

Connectors and I/O

XLR inputs	16 programmable
RCA inputs/outputs	2/2
XLR outputs	8
AES50 ports, SuperMAC	2
MIDI inputs/outputs	1/1
USB Type A	1
Ethernet, RJ45	1

Dimensions and Weight

dimensions	1.9 x 1.13 x 0.52" / 48.3 x 28.7 x 13.2 mm
