Behringer XENYX X2442USB User Manual

Page 13 of 17
XENYX X2442USB
X2222USB / X1832USB
X1622USB / X1222USB
X1204USB / 1204USB
X2222USB
How about eight XENYX mic channels
with inserts, dedicated compressors,
3-band EQ with semi-parametric mids
and three Aux Sends? You get all that with
the X2222USB, plus four stereo line-level
channels, two convenient mix subgroups
and onboard 24-bit digital FX processing,
with dual user-addressable parameter
controls. All this and more enclosed in a
rack-ready, roadworthy steel chassis.
Stereo Aux Returns
1-3 with additional
routing options
Onboard FX
processor,
16 presets,
two parameter
controls
Aux Sends
1-3 with
Solo switches
Phones/CTRL
Room source
mixing matrix
Main Mix
faders
Sub 1-2 faders
12-tier VU meter
with +48 V and
Power LEDs
Phones/CTRL
Room level
control
Sub 1-2 Left/
Right assignment
switches
VU meter
mode switch

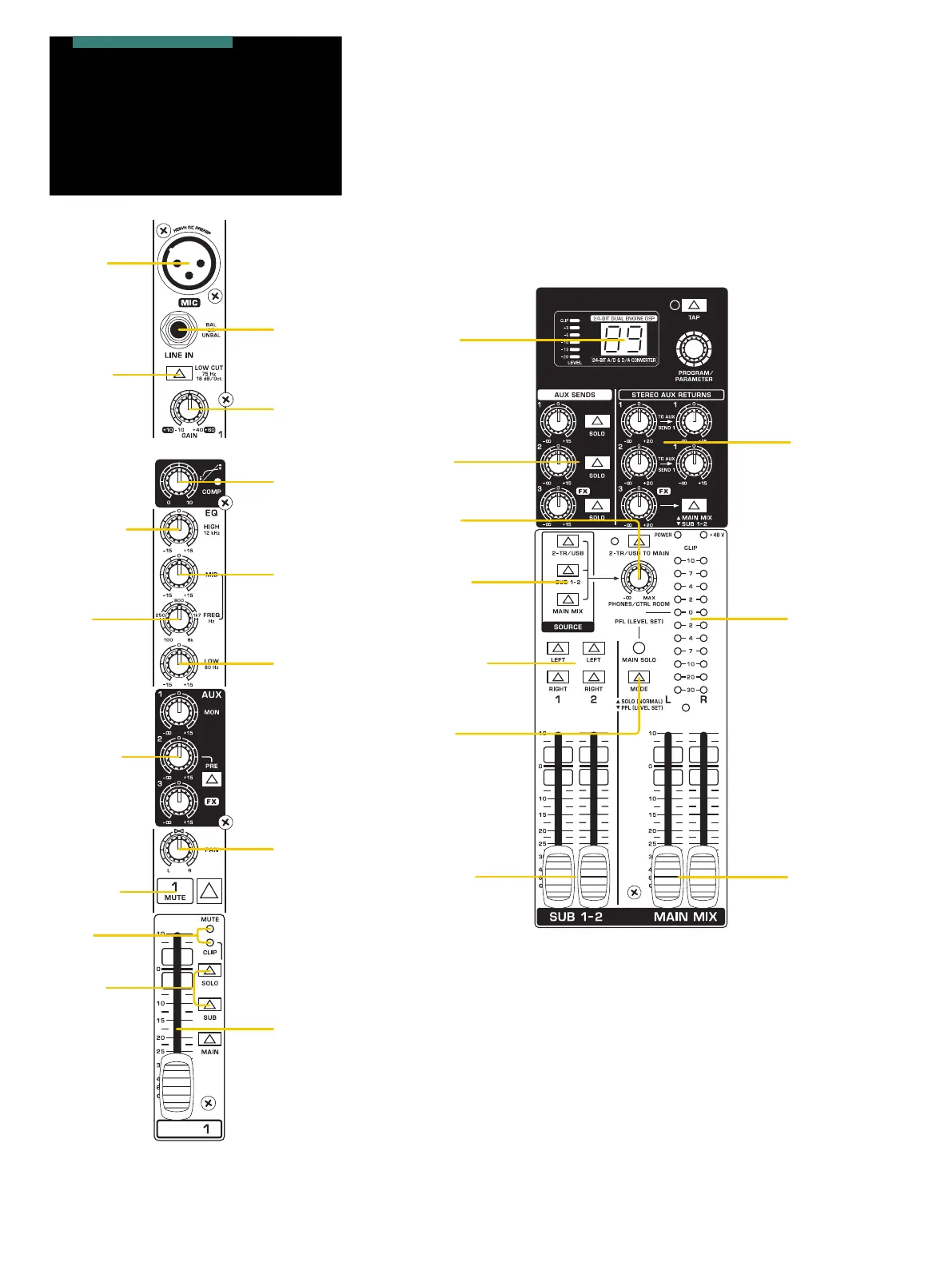

X2222USB Front Panel
Mid Frequency,
variable
100 Hz – 8 kHz
XLR mic input
with XENYX
preamp
¼" balanced/
unbalanced
input
Low Cut
lter removes
unwanted infrasonics
Gain control
adjusts input
signal level
Compressor
knob adjusts
compression eect
on channel
High EQ
±15 dB, centered
@ 12 kHz
Mid level ±15 dB,
variable center
frequency
Low EQ
±15 dB,
centered @
80 Hz
Aux Sends
for Monitors
(1 x pre, 1 x pre/
post selectable)
and FX (post)
Pan control
adjusts position
of signal in
stereo image
Mute switch
removes signal
from Main Mix
Mute &
Clip LEDs
Solo & Sub/
Main assignment
switches
Channel fader
adjusts signal
level in Main Mix

Behringer XENYX X2442USB Specifications

General

Type	Analog
Channels	24
Phantom Power	Yes
EQ Bands	3-band
USB Interface	Yes
Headphone Output	1 x 1/4"
Aux Sends	4
Inputs - Line	16
Inputs - Other	2 x RCA
Outputs - Main	2 x XLR, 2 x TRS
Outputs - Other	2 x RCA
Tape Inputs/Outputs	2 x RCA
