3522.5-0000010 РЭ
150
The nuts 8 also serve for main gear pair gearing adjustment and for necessary tooth-
contact pattern assurance. The stop members 31 attached to bearing bodies 27 by bolts 33
through spring washers 32 fix nuts 8.

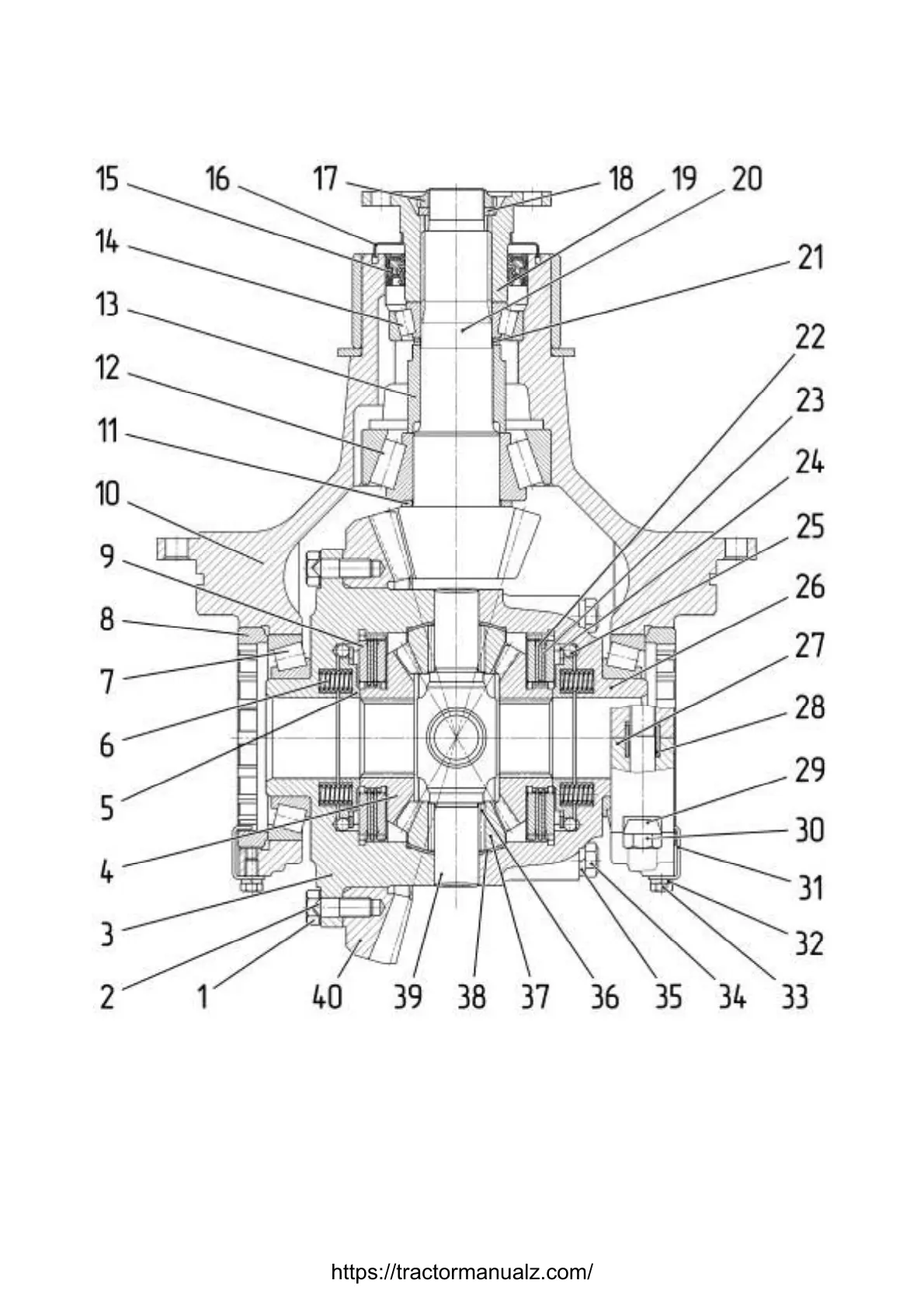

1 – bolt; 2 –bend off plate; 3 –differential housing;4 – side gear; 5 – spring seat; 6 –
spring pack; 7 – bearing; 8 – nut; 9 –frictional disk; 10 – housing; 11 – washer; 12 – bearing;
13 –distance piece;14 –bearing; 15 –sealing ; 16 – mud collector; 17 – nut; 18 –washer; 19
– flange; 20 – follower gear; 21 – washer; 22 – driving frictional disk; 23 – follower frictional
disk; 24 –locking ring; 25 – ball; 26 –differential cover; 27 –bearing body; 28 –bushing; 29 –
bend off; 30 – bolt; 31 –stop member; 32 – spring washer; 33 – bolt; 34 – bolt; 35 – spring
washer; 36 – roller; 37 –planet gear; 38 –spherical washer; 39 – spider; 40 – follower gear.
Figure 3.12.2 – Central reduction unit
