3522.5-0000010 РЭ
86

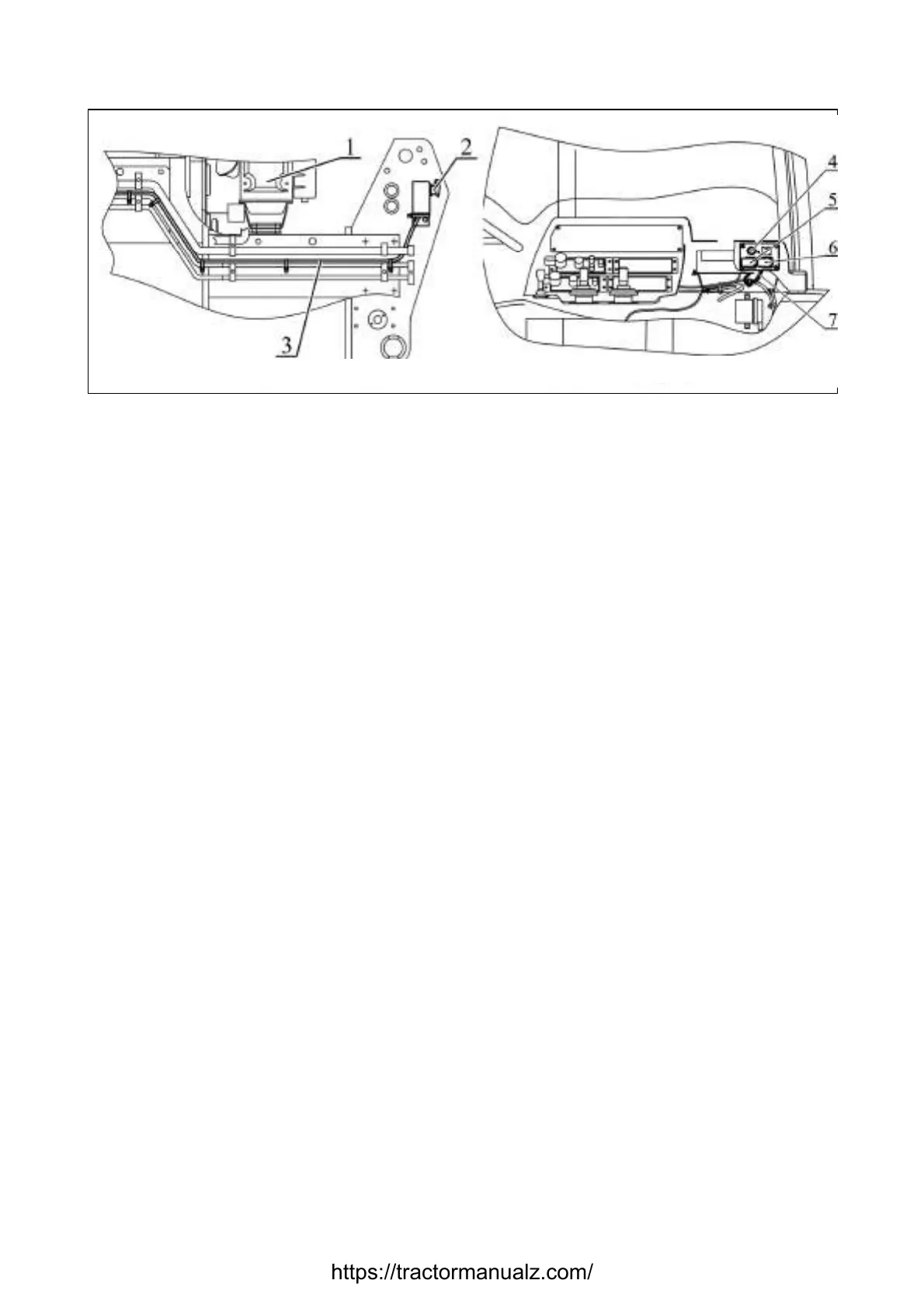

1 – radiator of engine cooling system; 2 – front socket (located on FLL); 3 – con-
necting harness of front socket; 4 – cigar lighter; 5, 6 – rear sockets (located in tractor
cab); 7 – connecting harness of rear sockets and of cigar lighter.
Figure 2.22.2 – Installation of electrical sockets and of cigar lighter
2.23 Reverse post controls
“BELARUS – 3522.5” is equipped with a reverse control post with the aim to in-
crease opportunities of coupling with front-mounted agricultural machines.
Elements of the reverse control are as follows:
- reverse motion steering column with a dosing pump;
- duplicated pedal drives to control the coupling clutch, brakes and fuel feed;
- seat reversing mechanism;
- button to actuate electronic foot pedal of engine control on reverse with an annun-
ciator;
- additional disconnect switch of rear screen wiper, horn button and annunciator of
emergency modes of engine operation (buzzer).
ATTENTION: TRACTOR REVERSE CONTROL POST IS INTENDED ONLY FOR
AGRICULTURAL OPERATIONS WHEN MOVING BACKWARDS!
IT IS FORBIDDEN TO MOVE ON REVERSE ON PUBLIC ROADS, AND ALSO AT
WORKS, NOT RELATED TO AGRICULTURAL PRODUCTION!
Supplementary controls of the reverse post are mounted at the rear of the cab, their
location is shown in figure 2.23.1.
a) right view along tractor mov
b) left view along tractor movement
