3522.5-0000010 РЭ
87

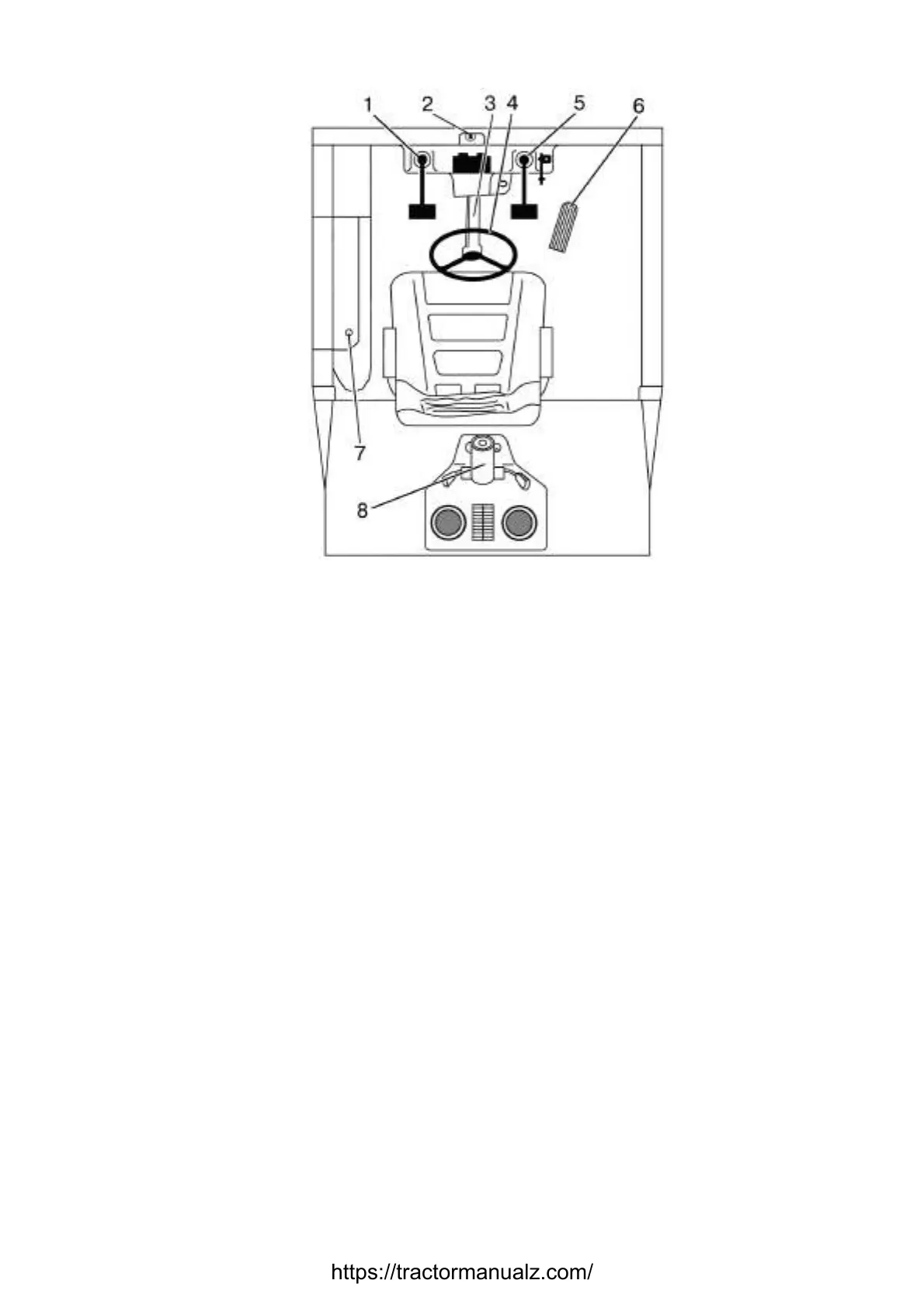

1 – duplicated clutch pedal; 2 – additional disconnect switch of the rear screen
wiper; 3 – reverse steering column; 4 – steering wheel; 5 – duplicated brake pedal; 6 – du-
plicated fuel feed pedal; 7 – horn button; 8 – steering column of forward motion.
Figure 2.23.1 – Location diagram of reverse post supplementary controls
Pressing the pedal 1 (figure 2.23.1) engages the clutch. Removing the foot from the
pedal disengages the clutch.
The disconnect switch 2 is designed to turn the rear screen wiper on / off.
The steering wheel 4 for tractor turning is displaced from the steering column of
forward motion 8 to the steering column of reverse motion 3.
Pressing the pedal 5 engages two tractor brakes and a pneumatic drive of trailer
brakes.
Pressing the pedal 6 increases fuel feed.
Pressing the button 7, located on CECS, activates the horn.
To operate the tractor on reverse, perform the following operations:
- displace the steering wheel to the steering column of the reverse motion. To do
this unscrew the steering wheel fixing clamp, displace the steering wheel and fix it at a re-
quired height;
- mount the reverse seat to operate on reverse;
- set a handle of the reverse valve control in HSC system into the extreme lower
position;
- push the button 7 (figure 2.9.1) to actuate the electronic foot pedal of engine con-
trol mode on reverse;
- set the disconnect switch of the rear screen wiper and washer, located on the up-
per shield unit of button switches, into position “Rear screen wiper on”. If necessary turn
the rear screen wiper on/off with a supplementary rear screen disconnect switch.
