3522.5-0000010 РЭ
88
To change a tilt angle of the reverse motion steering column 3 (figure 2.23.1) lo-
cated on reverse post do the following:
- pull the handle 2 up (figure 2.23.2);
- tilt the reverse motion steering column 1 to a position comfortable for operation,
and releasing the handle 2, swing the steering column smoothly in a longitudinal direction
to reach a secure fixation.
The steering column can be tilted and fixed in five positions. Herein:
o in four positions from 25° to 40° with a 5° period to operate on reverse;
o in a 10° position to operate the tractor on forward motion.

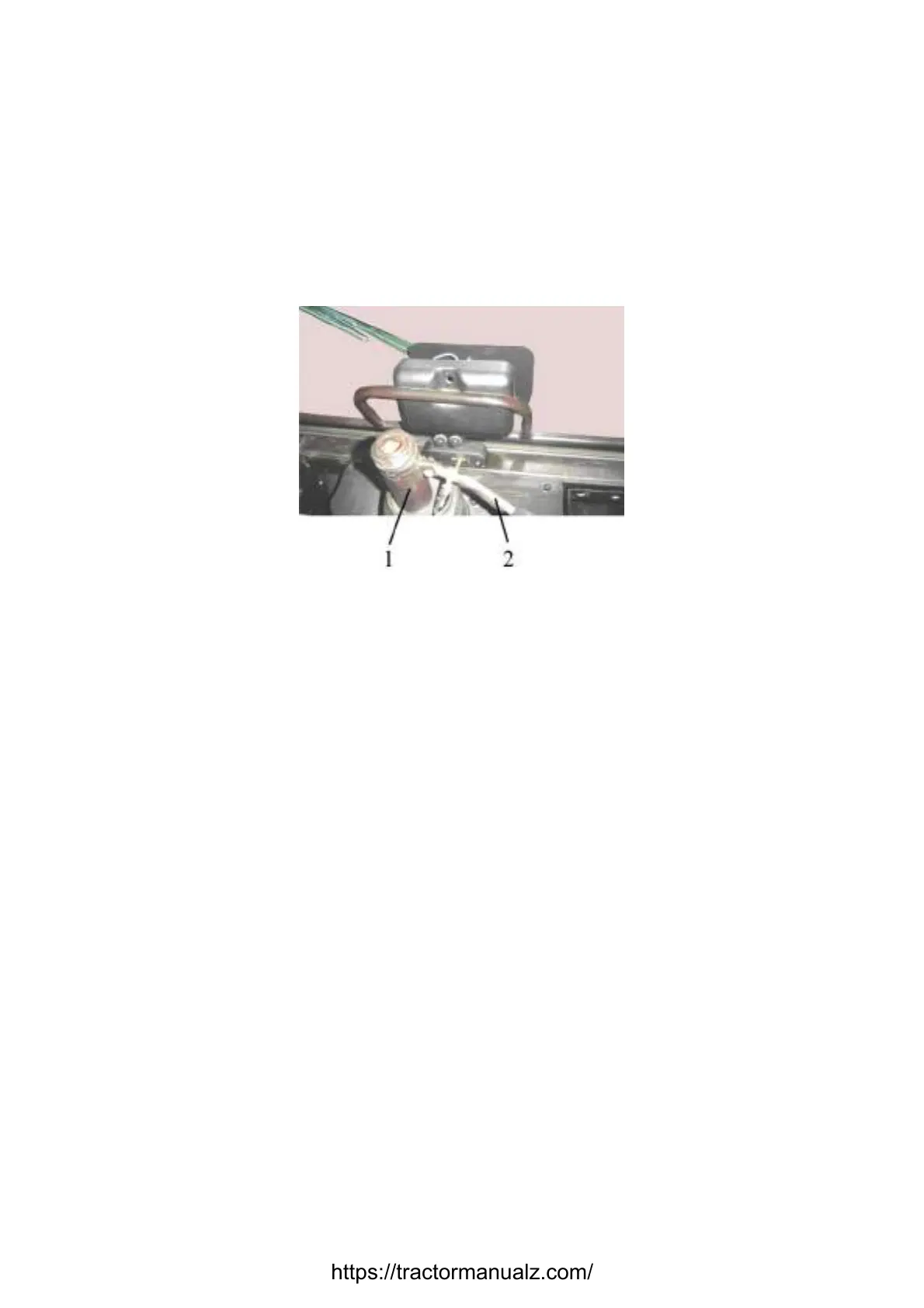

1 – steering column for reverse motion; 2 – handle.
Figure 2.23.2 – Changing tilt angle of the steering column for reverse motion
ATTENTION: WITH THE STEERING COLUMN FIXED IN THE EXREME FRONT
WORKING CONDITION SET THE RANGE SHIFTING LEVER INTO A NEUTRAL POSI-
TION, DISENGAGE GB GEARS (SET “0” GEAR), START THE ENGINE AND WITH THE
TRACTOR NOT RUNNING MAKE SURE THE STEERING CONTROL OPERATES
WELL!
