3522.5-0000010 РЭ
192

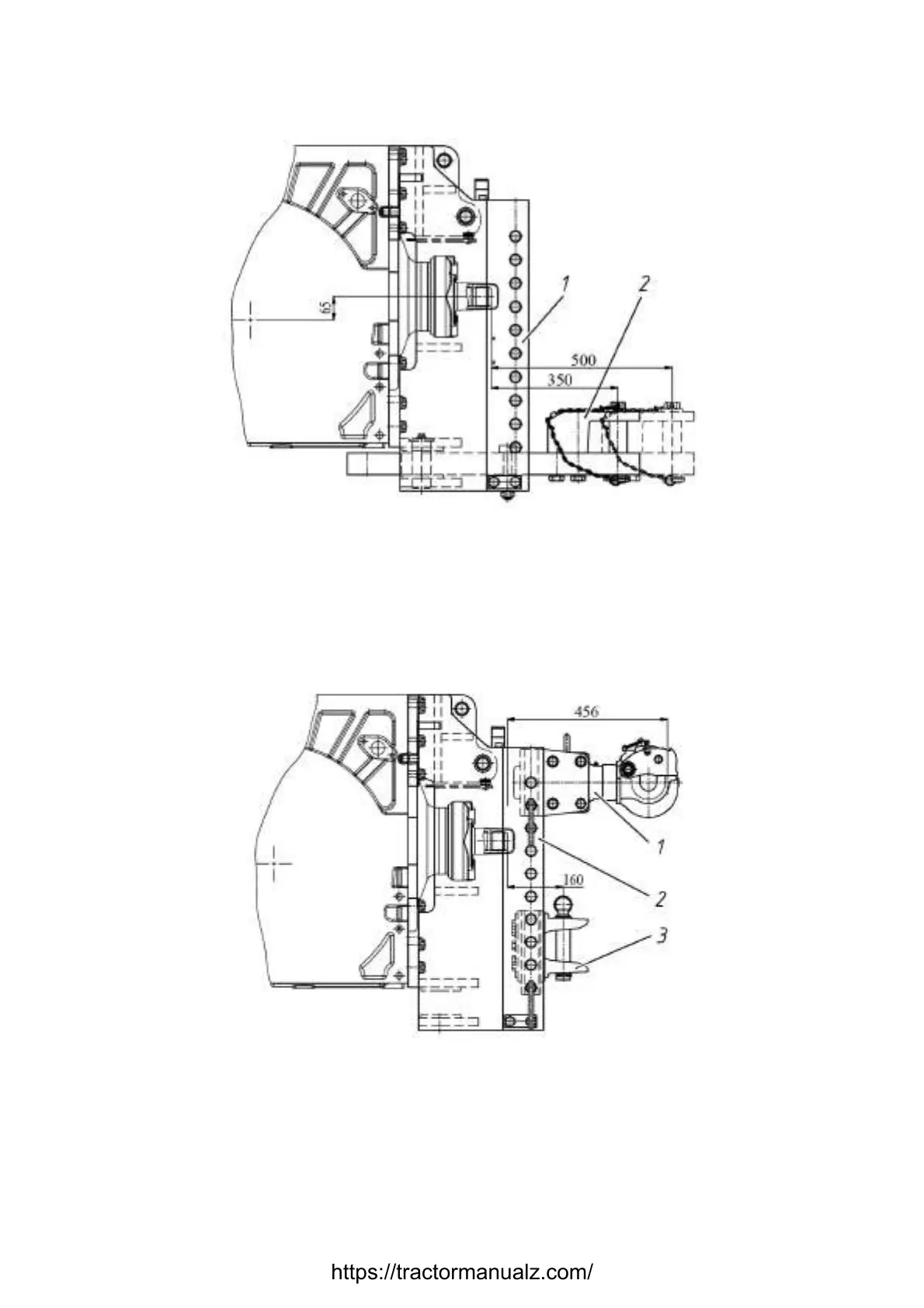

The drawbar has two variants of coupling points spacing at a distance of 350 mm
and 500 mm from PTO end face, as shown in figure 3.22.2.
1 – DH bracket; 2 – drawbar.
Figure 3.22.2 – Variants of drawbar positions.
The extension of guide’s length in DH bracket ensures extension of installation zone
of drawbar yoke vertically, as shown in figure 3.22.3.
1 – towing yoke; 2 – DH bracket.
Figure 3.22.3 – Installation zone of drawbar yoke vertically
Note – Detailed information about DH operating rules of drawbar hitch together with differ-
ent types of coupled and transported implements is described in section 5 “Coupling of im-
plements”.
