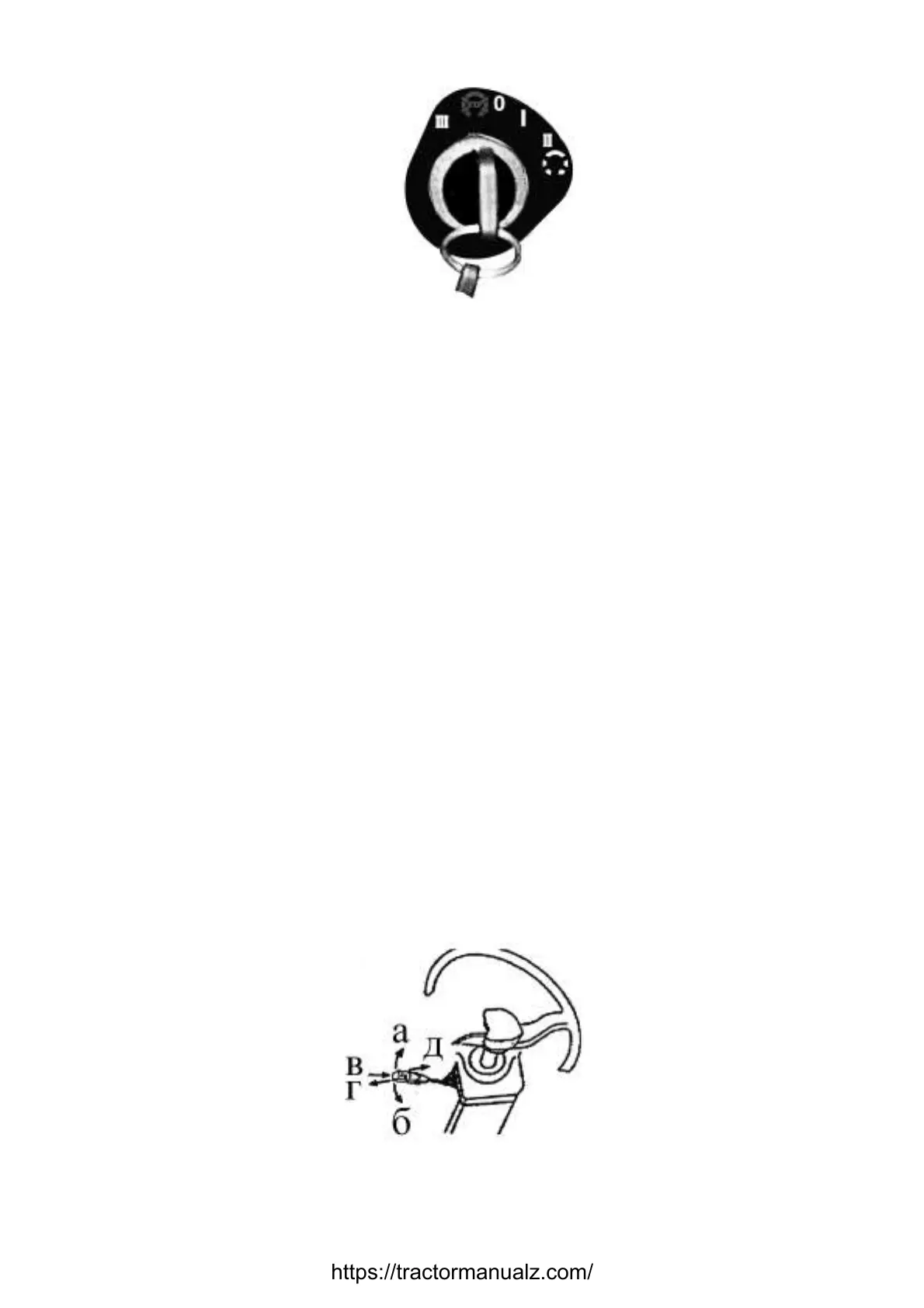

Figure 2.2.2 – Layout of positions of starter and instruments disconnect switch
ATTENTION: IF WITH THE ENGINE WORKING THE KEY OF THE STARTER
AND INSTRUMENTS SWITCH IS TURNED INTO POSITION “0” – THE ENGINE WILL
BE STOPPED!
ATTENTION: THE REPEATED SWITCH-ON OF THE STARTER IS POSSIBLE
ONLY AFTER RETURN OF THE KEY INTO POSITION “0” OF THE SWITCH. TO TURN
THE STARTER AND INSTRUMENTS SWITCH INTO POSITION “III” IT IS NECESSARY
TO PRESS IN THE KEY WHEN IN “0” POSITION AND TURN IT CONTRACLOCKWISE!
The left multifunctional underwheel switch 2 (fig 2.2.1) provides for activation of turn
blinkers, switching between upper and lower beam of headlights, upper beam blinking, au-
dible beep.
Turn blinkers are activated by moving a lever of the underwheel switch 2 from the
middle position forward (“a” is a right turn) or backward (“б” is a left turn) as in fig. 2.2.3. As
the tractor has made a turn the lever automatically returns to the initial position.
To switch on the road headlights set a central light switch 5 (fig. 2.2.1) into “III” posi-
tion, as indicated below, and the lever of the underwheel switch into the middle position "в"
– "lower beam" according to fig 2.2.3. "Upper beam" is switched on by pushing the switch
lever against the stop (“г” position). The lever positions "lower beam" / "upper beam" are
fixed.
When pulling the lever against the stop (“д” position, fig 2.2.3) from the position of
the "lower beam" the lever is set into a non-fixed position activating the “upper beam”,
called “upper beam blinking”, irrespective of the position of the central light switch.
The audible beep is activated by pressing the lever in axial direction (axis of the switch-
ing lever). The beep can be activated in any position of the switching lever.
Fig 2.2.3 – Operational scheme of the left multifunctional underwheel switch
The right multifunctional underwheel switch 3 (fig.2.2.1) provides for activation of a
dual-speed wiper and a washer of the windscreen.
