3522.5-0000010 OM
275
6.4.2.6 Task 20. Check/adjustment of clutch operating control
Checking of a clutch coupling operating control shall be carried out when the engine
is shut-down by two persons.
Check the state of the expansion chamber, main (forward and reverse line) and operating cyl-
inders, hydraulic amplifier and valves. The systems shall be liquid- and-oil-tight.
Clear the clutch coupling operating control drive and control pedals out.
ATTENTION: THE TRACTOR SHALL NOT BE OPERATED WITH FOREIGN OB-
JECTS (TOOLS, CLOTHES AND ETC.) AND ON OVERLAYING THE CLUTCH CON-
TROL PEDAL AND ON REVERSE STATION (FIGURE 6.4.8)!

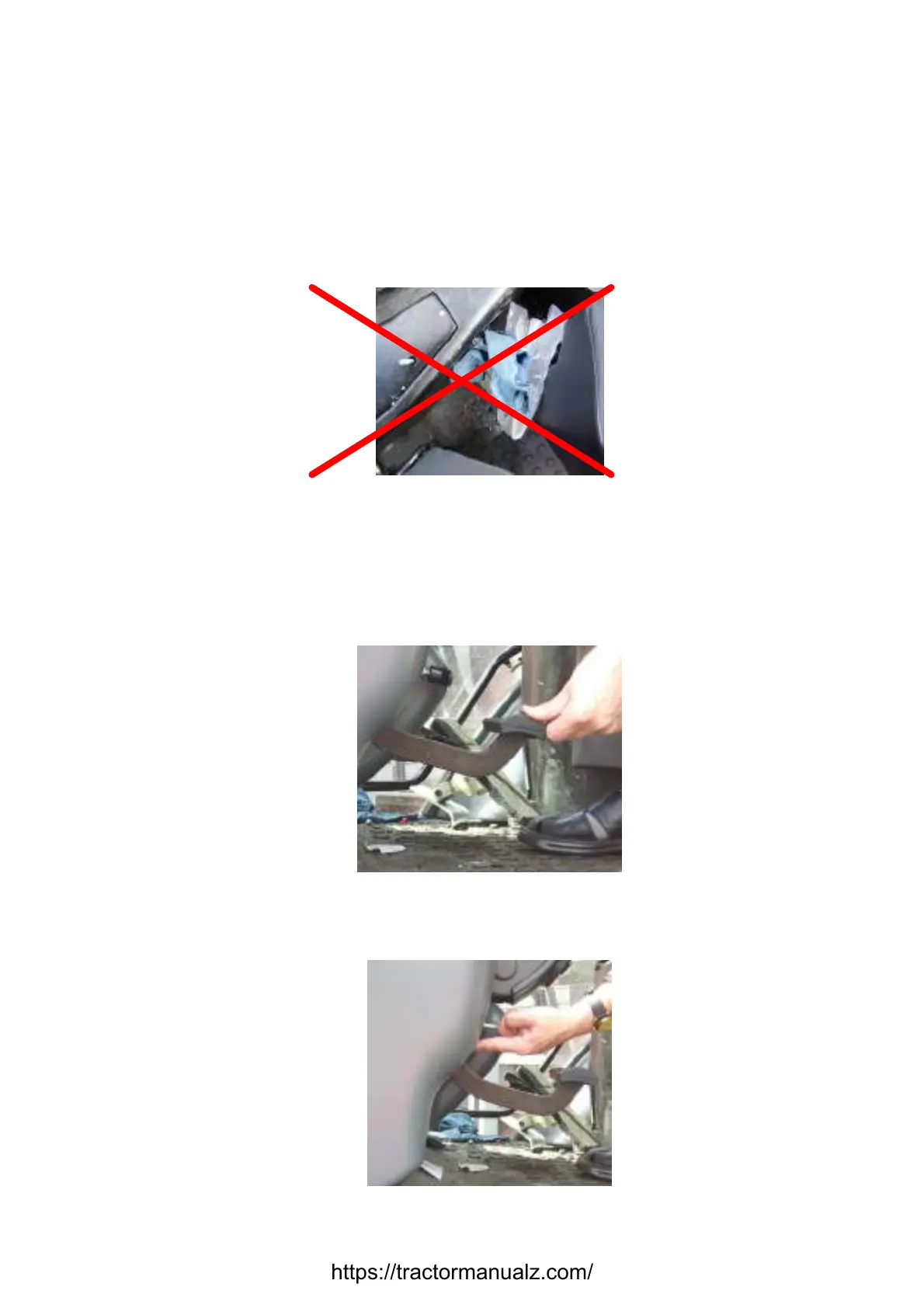

Figure 6.4.8
Check the clearance between a piston and the piston follower of the main cylinder
on the forward and reverse stroke (Figures 3.3.4, 6.4.9).
By hand. Shifting of the pedal from the starting point until the piston follower has
stricken against the piston, measured in the pedal pad center point, shall make from 6 to
12 mm. In case the pedal movements are in excess of or less than the required range, ad-
just it as indicated in sub section 3.3.4 “Adjustment of clutch operating control”!
Figure 6.4.9
Check the clearance between the plastic skirt of the gauge panel and pedal pin
(Figure 6.4.10).
Figure 6.4.10
