3522.5-0000010 OM
283

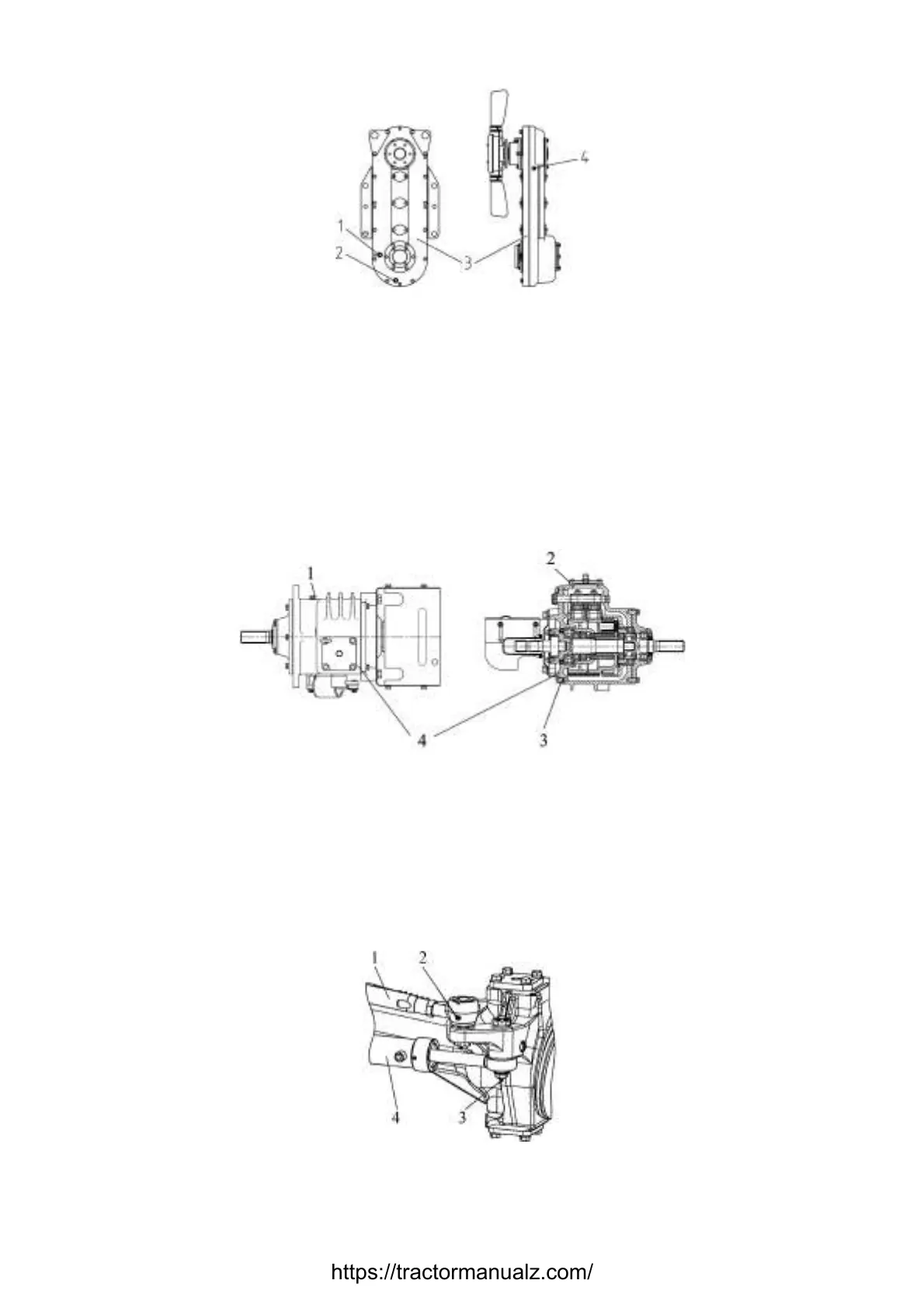

1 – level check plug; 2 – drain plug; 3 – FPTO gearhead; 4 – filler plug.
Figure 6.4.24 – Check of oil level and oil change in FPTO shaft gearhead
6.4.3.4 Task 30. Check of oil level in FPTO reducing gear
To check the oil level in FPTO reducing gear, perform the following:
- place the tractor at the level horizontal ground, engage the parking brake and lock
the wheels against movement fore and aft by anti-recoil limit stops, excluding tractor self-
movement. The engine must be stopped.
- unscrew the level check plug 1 (Figure 6.4.25);
- oil level shall reach the lower edges of the threaded opening of the plug 1;
- if it is necessary to unscrew the hook and three bolts for cap 2 fastening, remove
the cap 2 and refill a new oil up to the lower edge of the level check plug 1;
- insert plug 1 and mount cap 2 in its place.
1 – level check plug; 2 – cap; 3 – drain plug; 4 – FPTO reducing gear.
Figure 6.4.25 – Check of oil level and oil change in FPTO reducing gear.
6.4.3.5 Task 31. Oiling of HSC hydraulic cylinders and steering link hinged joints
To oil HSC hydraulic cylinders and steering link hinged joints, perform the following:
- clean two lubricating boxes 2 (Figure 6.4.26), mounted on steering link 1 hinged
joints, and four lubricating boxes 3, mounted on the HSC hydraulic cylinders hinged joints,
out of an accumulated dirt and consolidated lubricant;
- squirt the lubricating boxes 2 and 3 until the lubricant appears from the holes.
1 – steering link; 2, 3 – lubricating box; 4 – HSC hydraulic cylinder.
Figure 6.4.26 – Oiling of HSC hydraulic cylinders and steering link hinged joints
