3522.5-0000010 РЭ
81
To close the hatch 1 pull the board 2 down until the hatch is fixed in a closed posi-
tion.

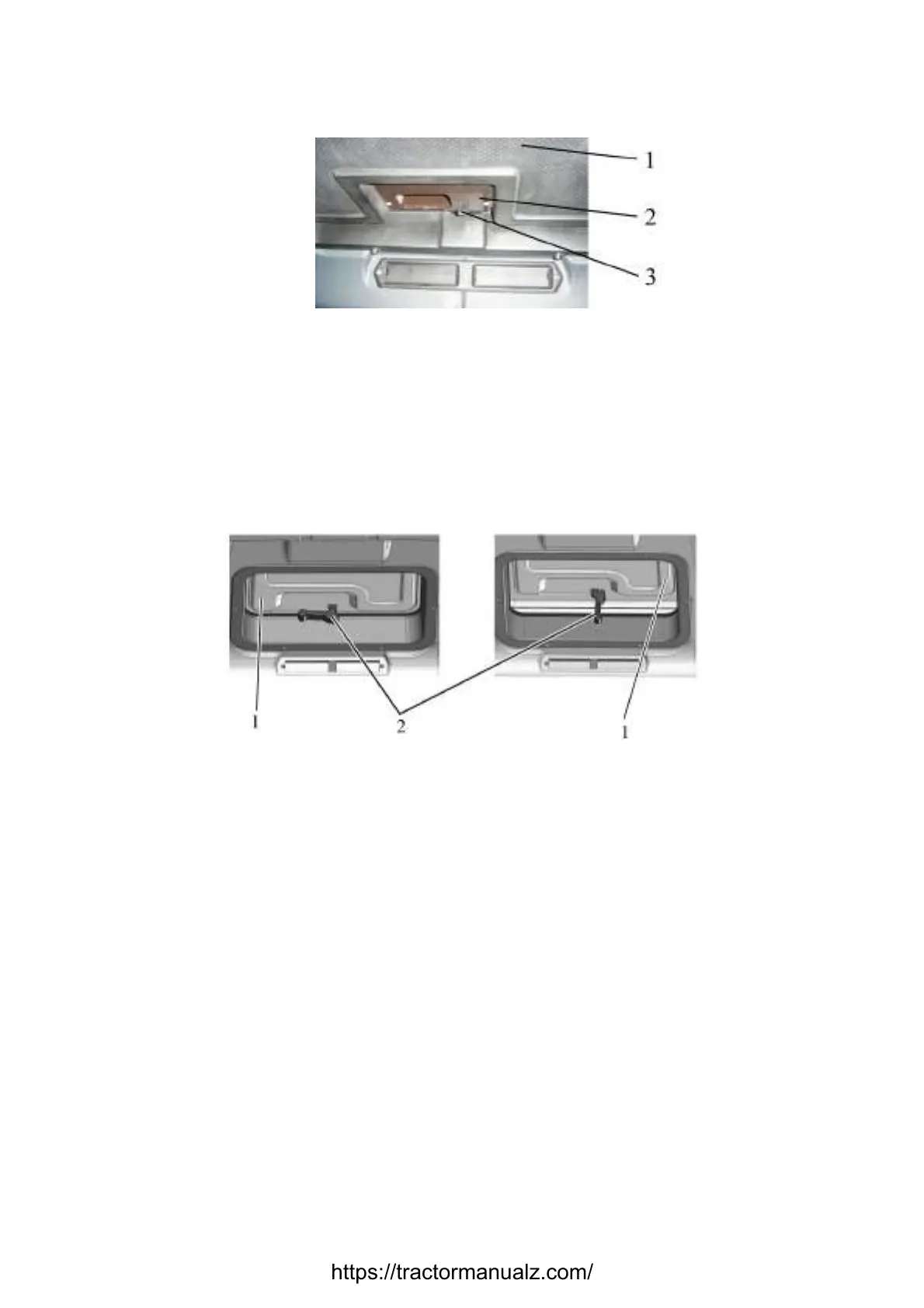

1 – hatch; 2 – board; 3 – detent.
Figure 2.20.4 – Opening of hatch with detent
To open the hatch with the handle move the handle 2 (figure 2.20.5) down and push
it up. Then fix the hatch 1 in an opened position, pressing the handle 2 to the right along
tractor movement.
To close the hatch turn the handle 2 to the position “not fixed”, pressing it to the left
along tractor movement. Pull the handle 2 down, and then turn it to the right along tractor
movement until the hatch is fixed in a closed position.
а) hatch closed b) hatch opened
1 – hatch; 2 – handle.
Figure 2.20.5 – Opening of hatch with handle
