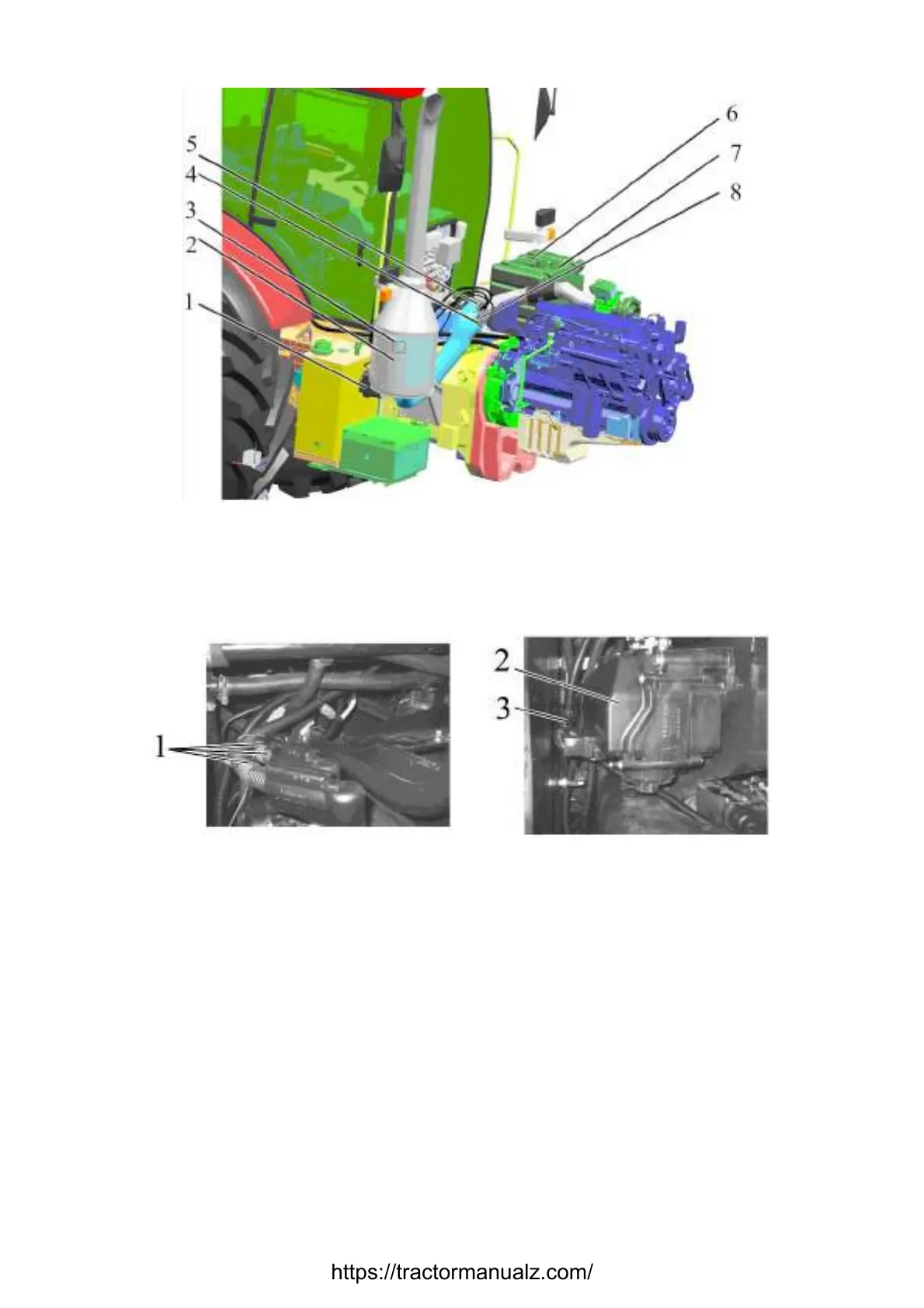

1 – feeding module; 2 – catalyst; 3 – NOx sensor after catalyst; 4 – sensor of ex-
haust gas temperature in front of a catalyst; 5 – NOx sensor in front of a catalyst; 6 – sen-
sor of urea temperature and level in the tank; 7 – urea tank; 8 – dosing module (atomizer
to inject urea).
Figure 3.2.2 – Selective catalytic reduction system SCR
1 – hoses for urea supply; 2 – feeding module; 3 – SCR harness.
Figure 3.2.3 – Connection to feeding module, hose heaters and urea tank
