Belden Hirschman RSPS20 User Manual

Installation RSPS20/25
Release 09 12/2019
17

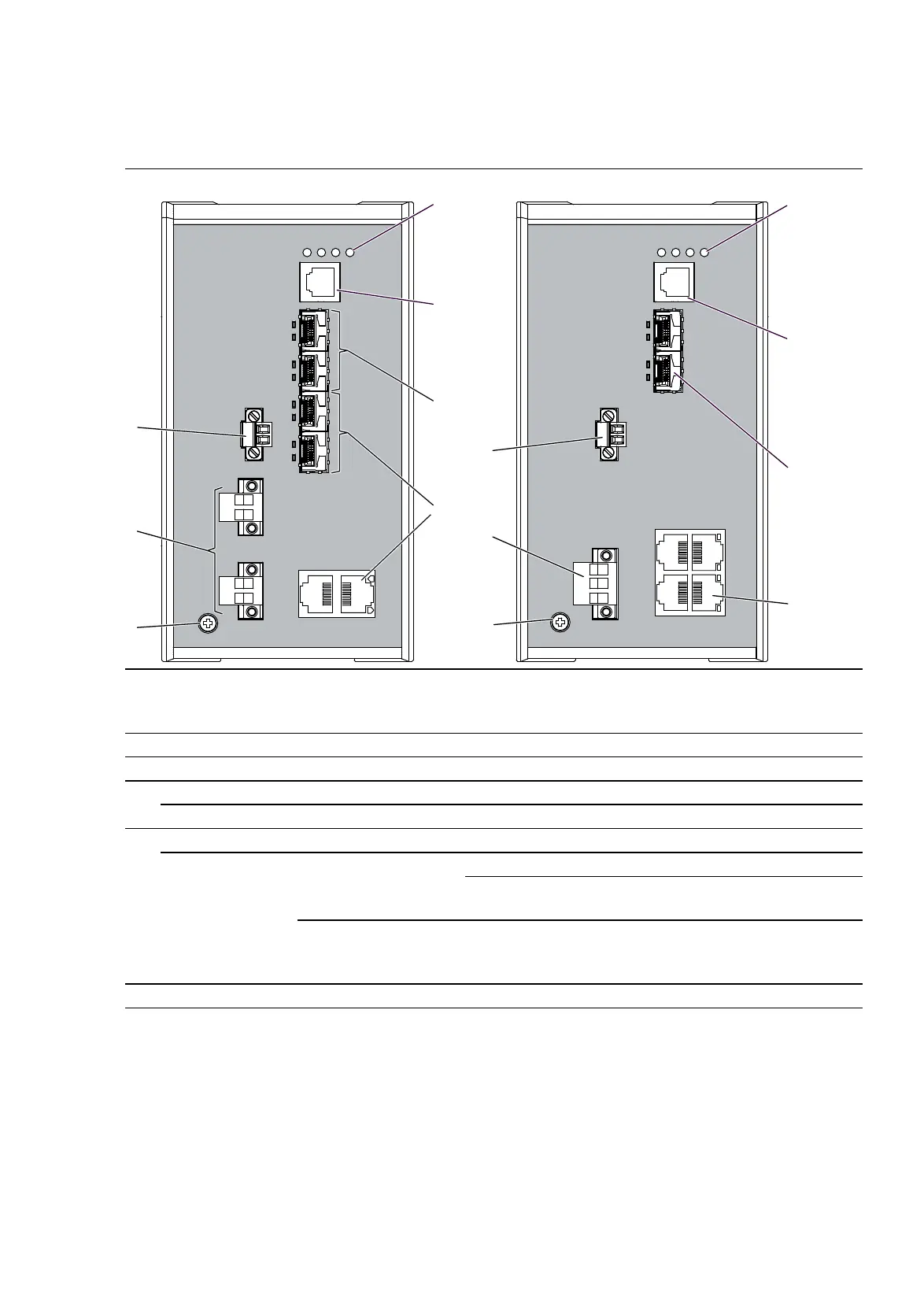

1.3 Device views
1.3.1 Front view
Front view:
on the left: Device variants RSPS...........2Z6YT..CC....
on the right: Device variants RSPS...........2Z6TT..M9/K9....
1 LED display elements for device status
2 V.24 interface
3 Uplink ports
2 × SFP slot for 100 Mbit/s F/O connections
4 Other ports
alternatively,
depending on
device variant
Port configuration
characteristic value:
YT
2 × SFP slot for 100 Mbit/s F/O connections
2 × RJ45 socket for 10/100 Mbit/s Twisted pair
connections
Port configuration
characteristic value:
TT
4 × RJ45 socket for 10/100 Mbit/s Twisted pair
connections
5 Grounding screw
1
2
3
4
5
6
7
5
6
7
1
2
3
4
