20
Installation RSPS20/25
Release
09
12/2019
1.4 Power supply
You will find information on the characteristic values here:
“Device name and product code” on page 14
1.4.1 Supply voltage with the characteristic value M9 or K9
The following options for power supply are available:
1 × 3-pin terminal block
You will find information on connecting the supply voltage here:
See “Supply voltage with the characteristic value M9 or K9” on page 20.
1.4.2 Supply voltage with the characteristic value CC
The following options for redundant power supply are available:
2 × 2-pin terminal block
You will find information on connecting the supply voltage here:
See “Supply voltage with the characteristic value CC” on page 20.
1.5 Ethernet ports
You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).
1.5.1 100/1000 Mbit/s twisted pair port (optional)
This port is an SFP slot.
The 100/1000 Mbit/s twisted pair port allows you to connect network
components according to the standard IEEE 802.3 100BASE-TX/
1000BASE-T.
This port supports:
Autonegotiation
Full duplex mode
Pin Function
1BI_DB+
2BI_DB−
3BI_DA+
4 BI_DD+
5BI_DD−
6BI_DA−
7 BI_DC+
8BI_DC−

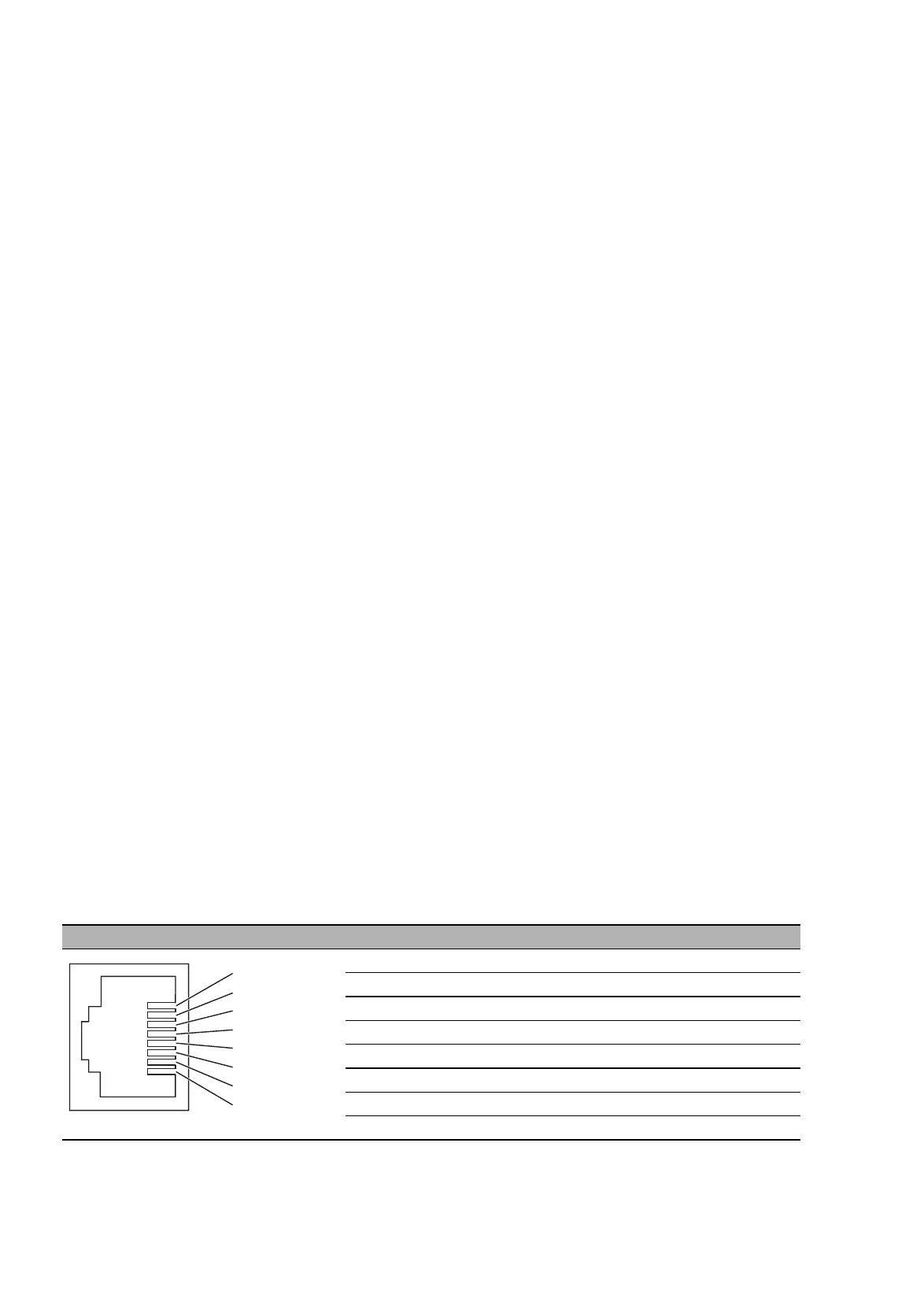

Table 6: Pin assignment of the 10/100/1000 Mbit/s twisted pair port, RJ45 socket,
1000 Mbit/s mode, MDI-X mode
