18
Installation RSPS20/25
Release 09 12/2019
6 Supply voltage connection
alternatively,
depending on
device variant
Supply voltage with
the characteristic
value:
CC
 2 voltage inputs for redundant power supply
 2-pin terminal block
Supply voltage with
the characteristic
value:
M9 or K9
 1 voltage input
 3-pin terminal block
7 Connection for the signal contact

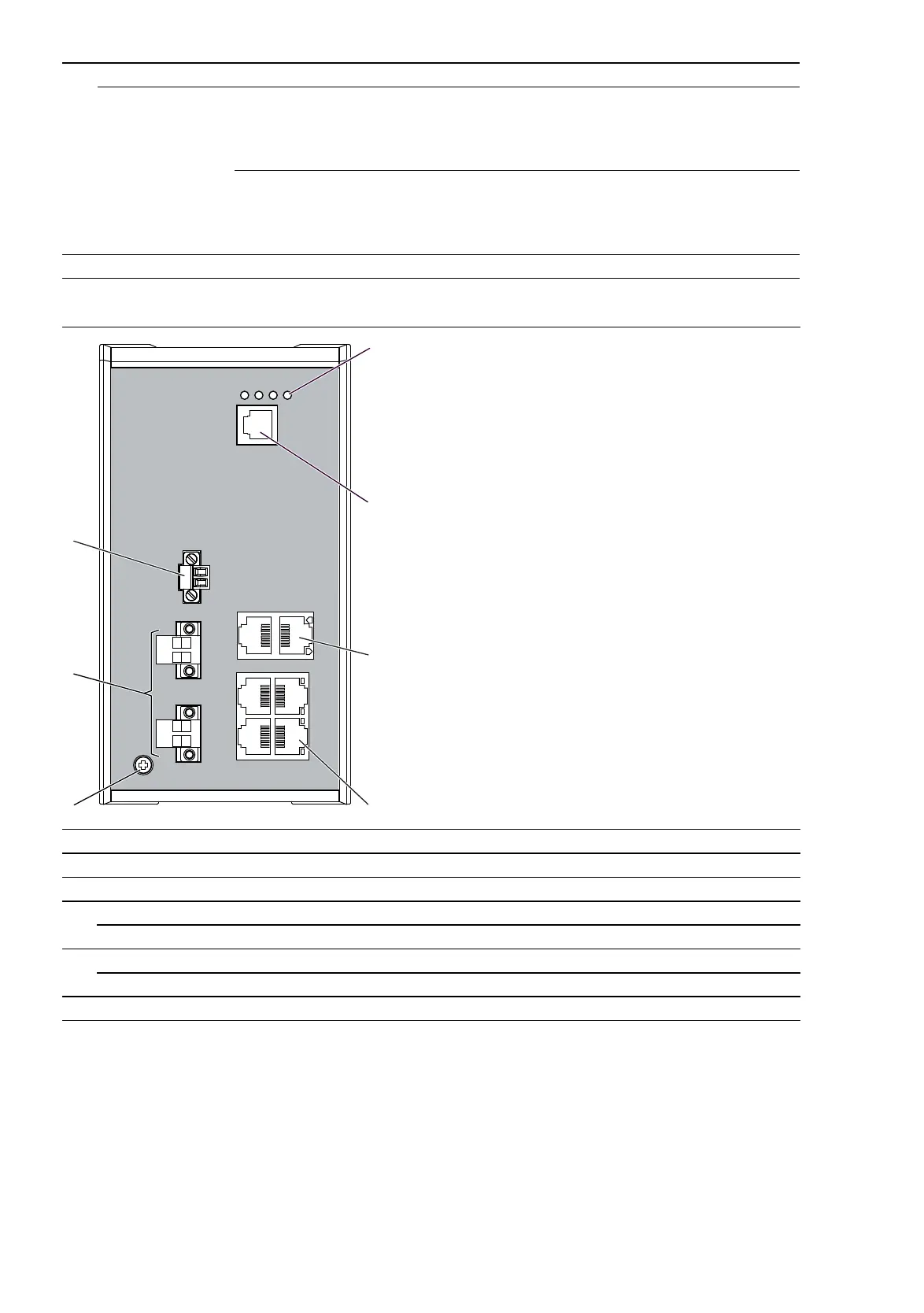

Front view of device variants RSPS...........2T1TT........
1 LED display elements for device status
2 V.24 interface
3Uplink ports
2 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
4 Other ports
4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
5 Grounding screw
1
2
3
4
5
6
7
