Installation RSPS20/25
Release 09 12/2019
29
2.5.1 Supply voltage with the characteristic value M9 or K9
You will find information on the characteristic values here:
“Device name and product code” on page 14

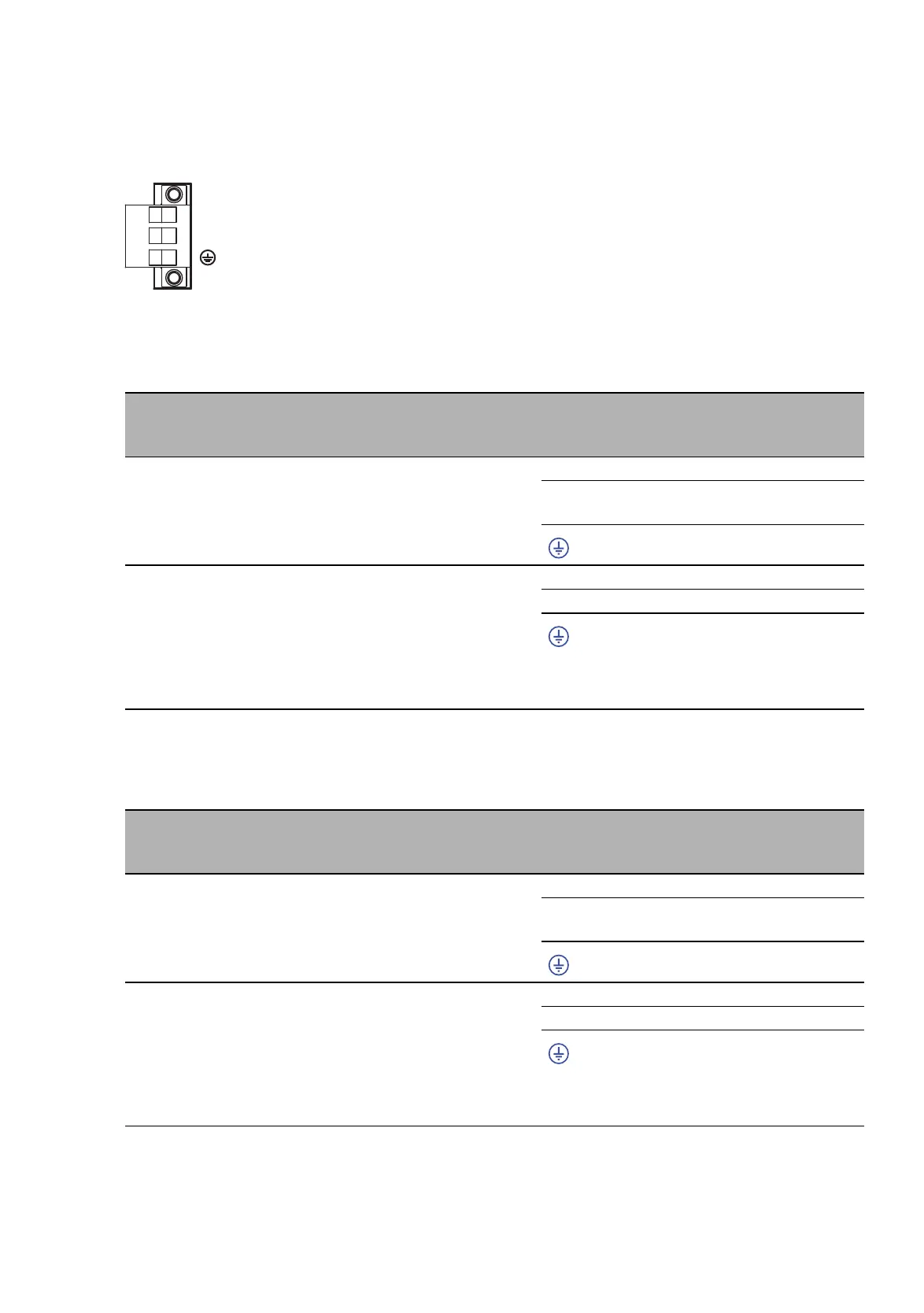

Figure 4: Supply voltage with the characteristic value M9 or K9: 3-pin terminal block
with screw locking
Type of the voltages
that can be
connected
Specification of the supply
voltage
Pin assignment
DC voltage Rated voltage range DC:
110 V DC ... 250 V DC
Voltage range DC incl.
maximum tolerances:
88 V DC ... 320 V DC
+/L Plus terminal of the supply voltage
-/N Minus terminal of the supply
voltage
Protective conductor
AC voltage Rated voltage range AC:
110 V AC ... 230 V AC,
50 Hz ... 60 Hz
Voltage range AC incl.
maximum tolerances:
88 V AC ... 265 V AC,
47 Hz ... 63 Hz
+/L Outer conductor
-/N Neutral conductor
Protective conductor
Table 7: Supply voltage with characteristic value M9: type and specification of the
supply voltage, pin assignment
Type of the voltages
that can be
connected
Specification of the supply
voltage
Pin assignment
DC voltage Rated voltage range DC:
60 V DC ... 250 V DC
Voltage range DC incl.
maximum tolerances:
48 V DC ... 320 V DC
+/L Plus terminal of the supply voltage
-/N Minus terminal of the supply
voltage
Protective conductor
AC voltage Rated voltage range AC:
110 V AC ... 230 V AC,
50 Hz ... 60 Hz
Voltage range AC incl.
maximum tolerances:
88 V AC ... 265 V AC,
47 Hz ... 63 Hz
+/L Outer conductor
-/N Neutral conductor
Protective conductor
Table 8: Supply voltage with characteristic value K9: type and specification of the
supply voltage, pin assignment
N
L
