Installation RSP20/25/30/35
Release 18 09/2021

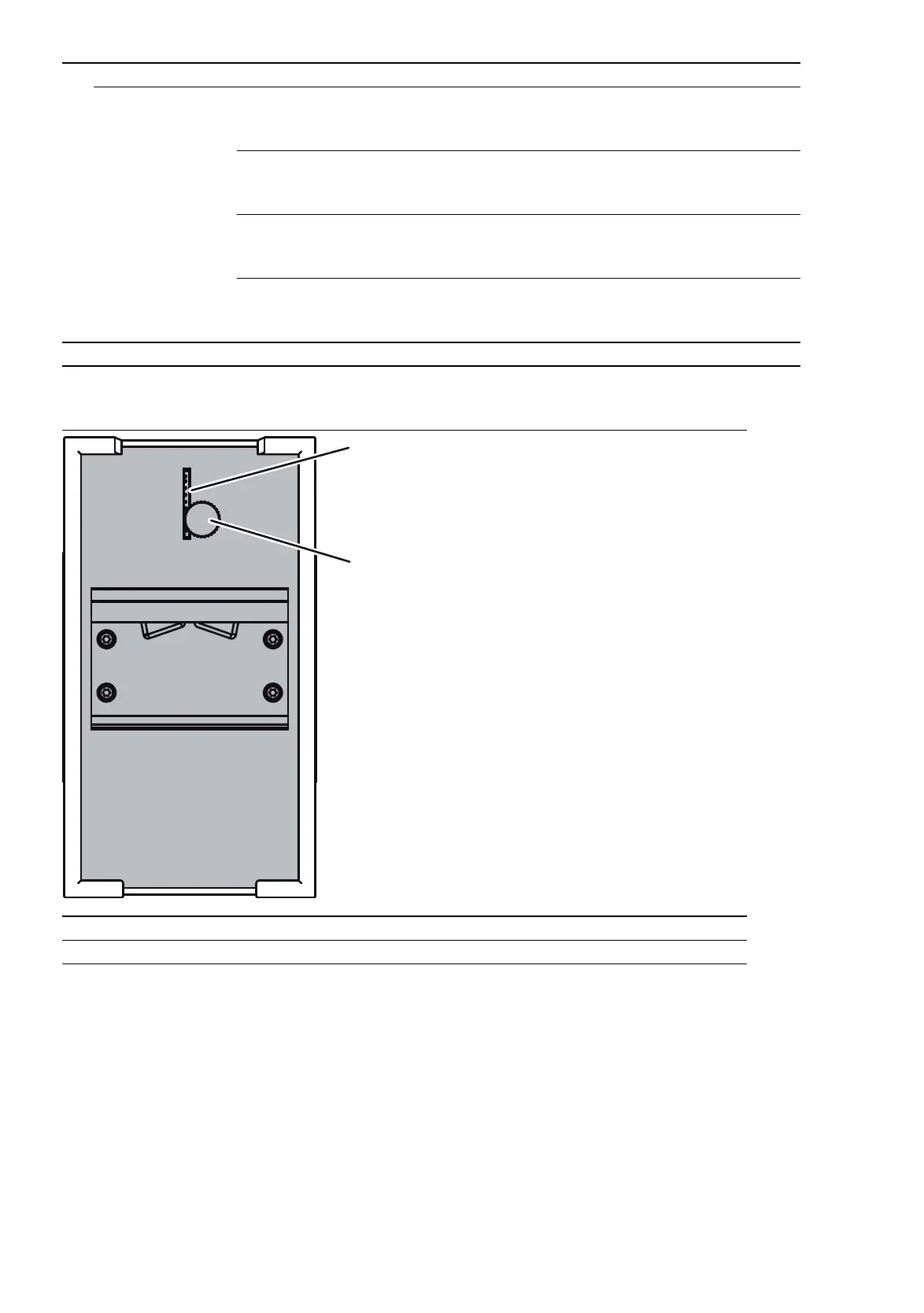

1.3.2 Rear view
6 Supply voltage connection
alternatively,
depending on
device variant
Supply voltage with the
characteristic value:
CC
 2 voltage inputs for redundant power supply
 2-pin terminal block
Supply voltage with the
characteristic value:
K9
 1 voltage input
 3-pin terminal block
Supply voltage with the
characteristic value:
KK
 2 voltage inputs for redundant power supply
 3-pin terminal block
Supply voltage with the
characteristic value:
TT
 2 voltage inputs for redundant power supply
 2-pin terminal block
7 Connection for the signal contact
1 Slot for the SD card
2 Thumb screw
1
2
