J20741 - Subject to change. © Belimo Aircontrols (USA), Inc.
AF
AF120 (-S) US, AF230 (-S) US
On-off, Spring Return Fail-Safe, 120 or 230 VAC
Accessories
AV 10-18 Shaft extension
IND-AF2 Damper position indicator
K4 US Universal clamp for 3/8” to 3/4” shafts
K4-1 US Universal clamp for up to 1.05” dia jackshafts
KH-AF Crankarm for up to 3/4” round shaft (Series 2)
KH-AF-1 Crankarm for up to 1.05” jackshaft (Series 2)
KH-AFV V-bolt kit for KH-AF and KH-AF-1
Tool-06 8mm and 10 mm wrench
ZG-HTR Thermostat/Heater Kit
ZDB-AF2 Angle of rotation limiter
ZG-100 Universal mounting bracket
ZG-101 Universal mounting bracket
ZG-102 Multiple actuator mounting bracket
ZG-106 Mounting bracket for Honeywell
®
Mod IV replace-
ment or new crankarm type installations
ZG-107 Mounting bracket for Honeywell
®
Mod III or Johnson
®
Series 100 replacement or new crankarm type
installations
ZG-108 Mounting bracket for Barber Colman
®
MA 3../4..,
Honeywell
®
Mod III or IV or Johnson
®
Series 100
replacement or new crankarm type installations
ZG-AF US Crankarm adaptor kit for AF/NF
ZG-AF108 Crankarm adaptor kit for AF/NF
ZS-100 Weather shield (metal)
ZS-150 Weather shield (polycarbonate)
ZS-260 Explosion-proof housing
ZS-300 NEMA 4X housing
Note: When using AF120/230 US and AF120/230-S US
actuators, only use accessories listed on this page.
For Actuator Wiring Information and Diagrams,
Please See Belimo Wiring Guide (pg 349).
AF120 US, AF230 US Typical Specification
On-off spring return damper actuators shall be direct coupled
type which require no crankarm and linkage and be capable of
direct mounting to a jackshaft up to a 1.05” diameter. The
actuators must be designed so that they may be used for
either clockwise or counterclockwise fail-safe operation.
Actuators shall have a manual positioning mechanism acces-
sible on its cover. Actuators shall use a brushless DC motor
and be protected from overload at all angles of rotation. Run
time shall be constant and independent of torque. If required,
2 SPDT auxiliary switches shall be provided with one switch
having the capability of being adjustable. Actuators must be
constructed to meet the requirement for Double Insulation so
an electrical ground connection is not required to meet agency
listings. Actuators shall be UL listed and CSA certified, have
a 5 year warranty, and be manufactured under ISO 9001
International Quality Control Standards. Actuators shall be as
manufactured by Belimo.

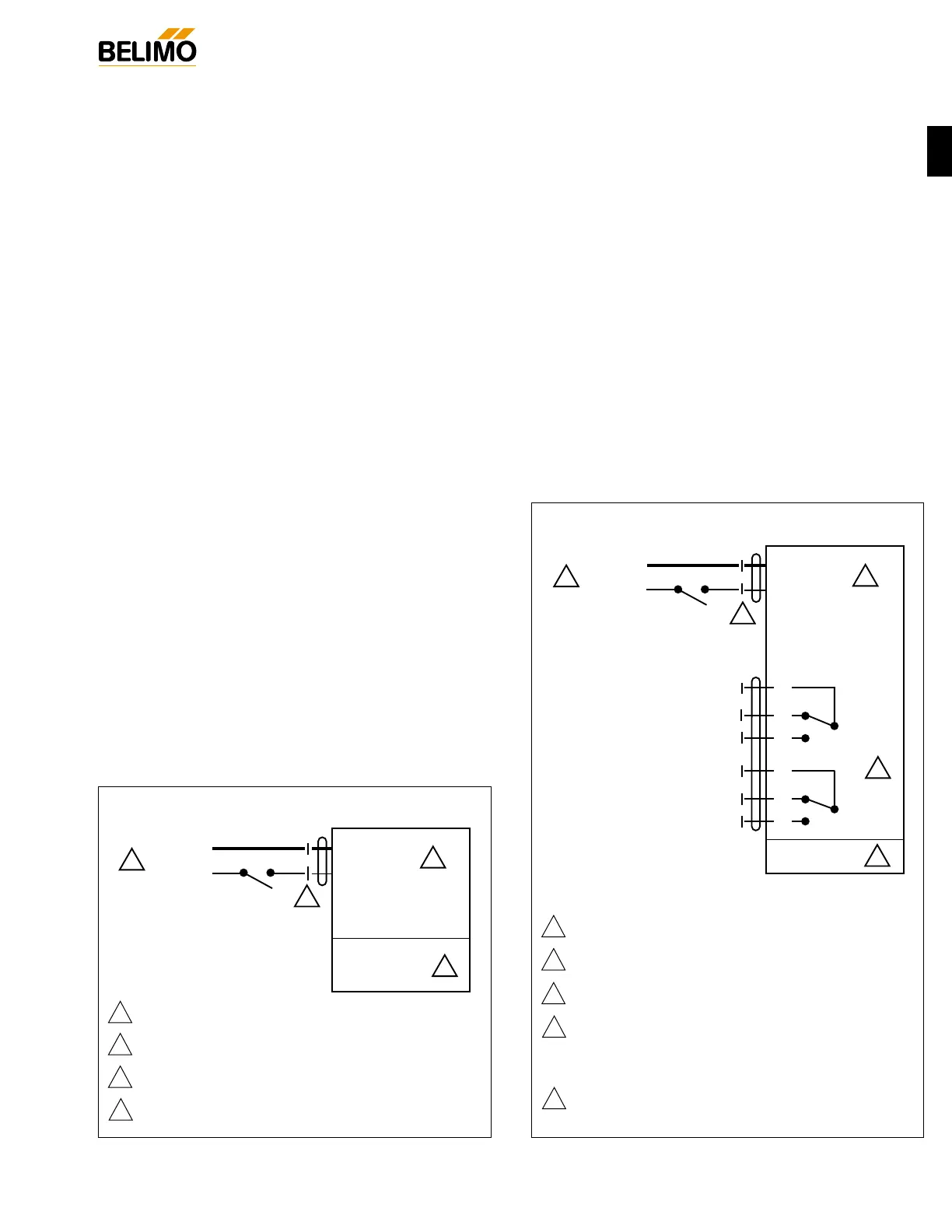

Wiring Diagrams
2
1
Provide overload protection and disconnect as required.
Actuators may be connected in parallel. Power con-
sumption must be observed.
No ground connection is required.
Meets UL and CSA requirements without the need of an
electrical ground connection.
2
3
1
3
Provide overload protection and disconnect as required.
Actuators may be connected in parallel. Power con-
sumption must be observed.
No ground connection is required.
For end position indication, interlock control, fan startup,
etc., AF120/230-S
US incorporates two built-in auxiliary
switches: 2 x SPDT, 7A (2.5A) @250 VAC, UL listed,
one switch is fixed at +5°, one is adjustable 25° to 85°.
Meets UL and CSA requirements without the need of an
electrical ground connection.
