Carefully lift the monitor out of the packaging and make
sure that all components are included (see fi g. 1).
Save the original box and packing material in case you
have to ship or transport the monitor.
To set up the device, you need to assemble the monitor
stand. Join the stand base to the stand post.
UNPACKING
Power cord
Audio cable
➧ To connect the monitor to your PC ........................
1. Make sure that the PC and monitor are unplugged.
2. Connect the 15-pin signal cable to the monitor and
the PC (see fi g. 2).
CONNECTING
➧ Connecting the audio cable ....................................
If your computer is equipped with an audio output port,
then connect one end of the sound cable to the audio
input connector of the monitor (
c
in fi g. 3) and the other
end to the Line-Out connector of the computer.

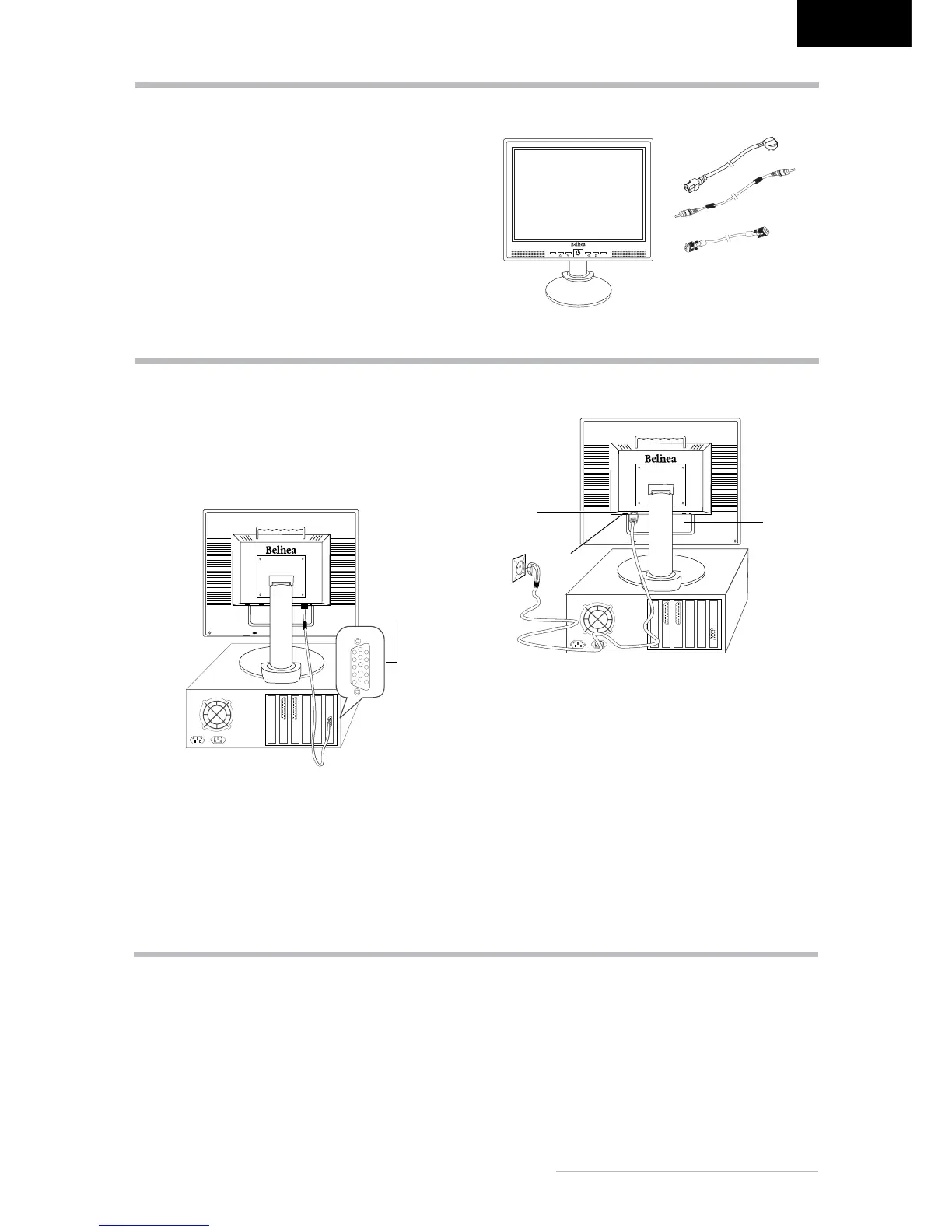

Figure 1. LCD Monitor
VGA cable
Figure 2. Connecting the monitor to the PC
Signal cable
➧ To connect the monitor to the power source ........
1. Connect the separate power cable (
d
in fi g. 3) to
the monitor and a grounded outlet.
2. The monitor is equipped with a main power switch
located on the back, next to the power cable socket
(
e
in fi g. 3).
MENU
SELECT/AUTO
MENU
SELECT/AUTO
Figure 3. Connecting the monitor to the power source
ENGLISH
c
e
d
1. First start your PC and then turn on your Belinea
monitor using the power switch (
f
in fi g. 4). The
status indicator (
f
in fi g. 4) should light up green.
2. Adjust the image to meet your requirements (see the
following sections “Basic Setup” and “Image settings
using the OSD menu”).
3. If there is no image displayed on the monitor, consult
the section “Troubleshooting”.
