Bell cocoon 500 - Seat Pad and Belt Attachment

11
10
12
BElts

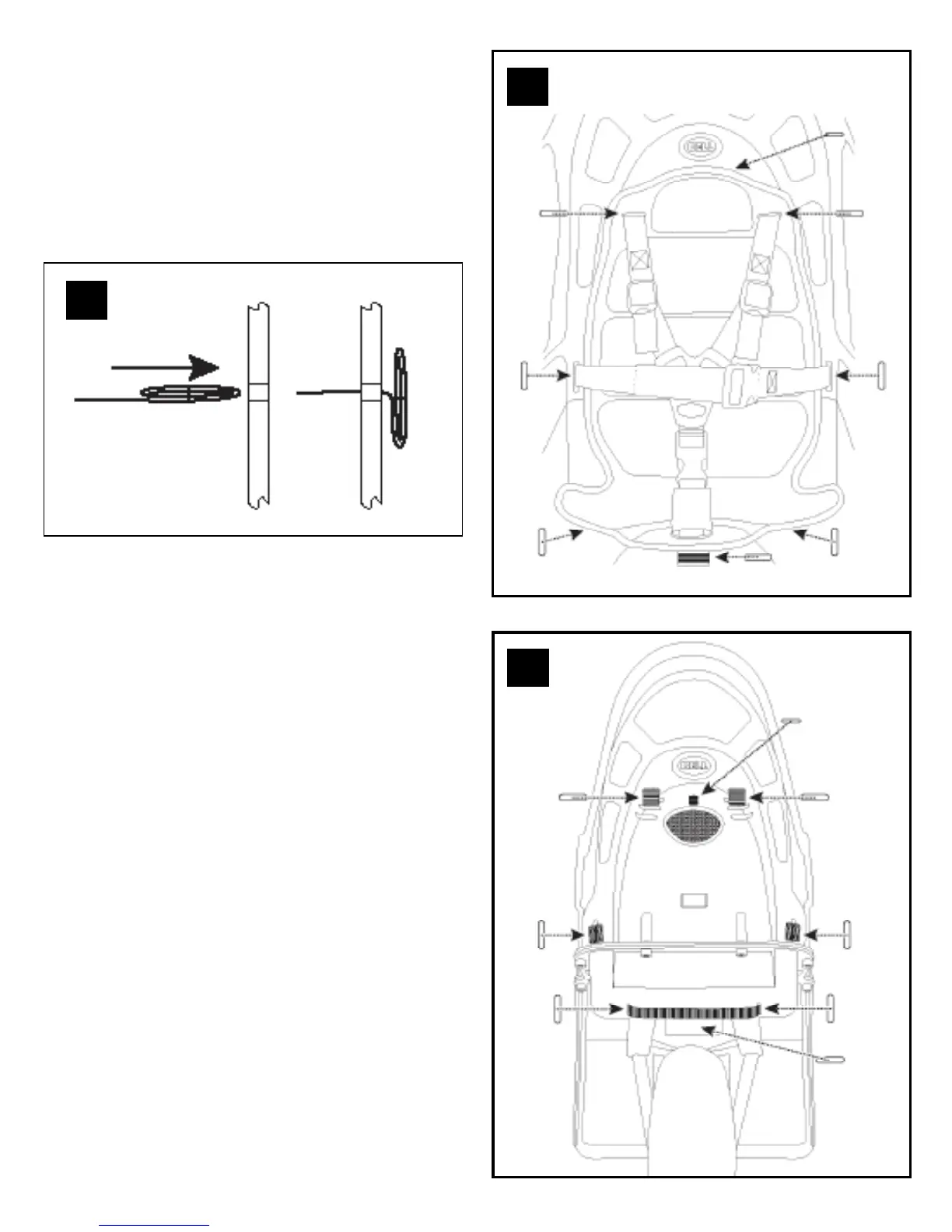

(Diagrams 10, 11 and 12)
1. Attach each of the two top buttery
ends of 3 point harness through the holes
in the seat pad and through the belt slot
(C) behind it.
2. Attach the bottom seat end buttery of
the harness through the hole of the seat
pad and through the bottom slot (D) in the
seat.
3. Attach each end buttery of lap belt
ends through the slots on the sides of the
seat (E).
Tighten all bolts securely
sEAt PAd (Diagrams 10, 11 and 12)
1. Lay seat pad into seat. Insert buttery
(Diagram 10) on top back into slot (A) on
carrier & thread Velcro
®
strap through low-
er vertical slots (B) in seat bottom. Secure
Velcro straps together behind seat.
C
CC
C
E
E
BUTTERFLY
E
E
D
D
B
B B
B
A
A
