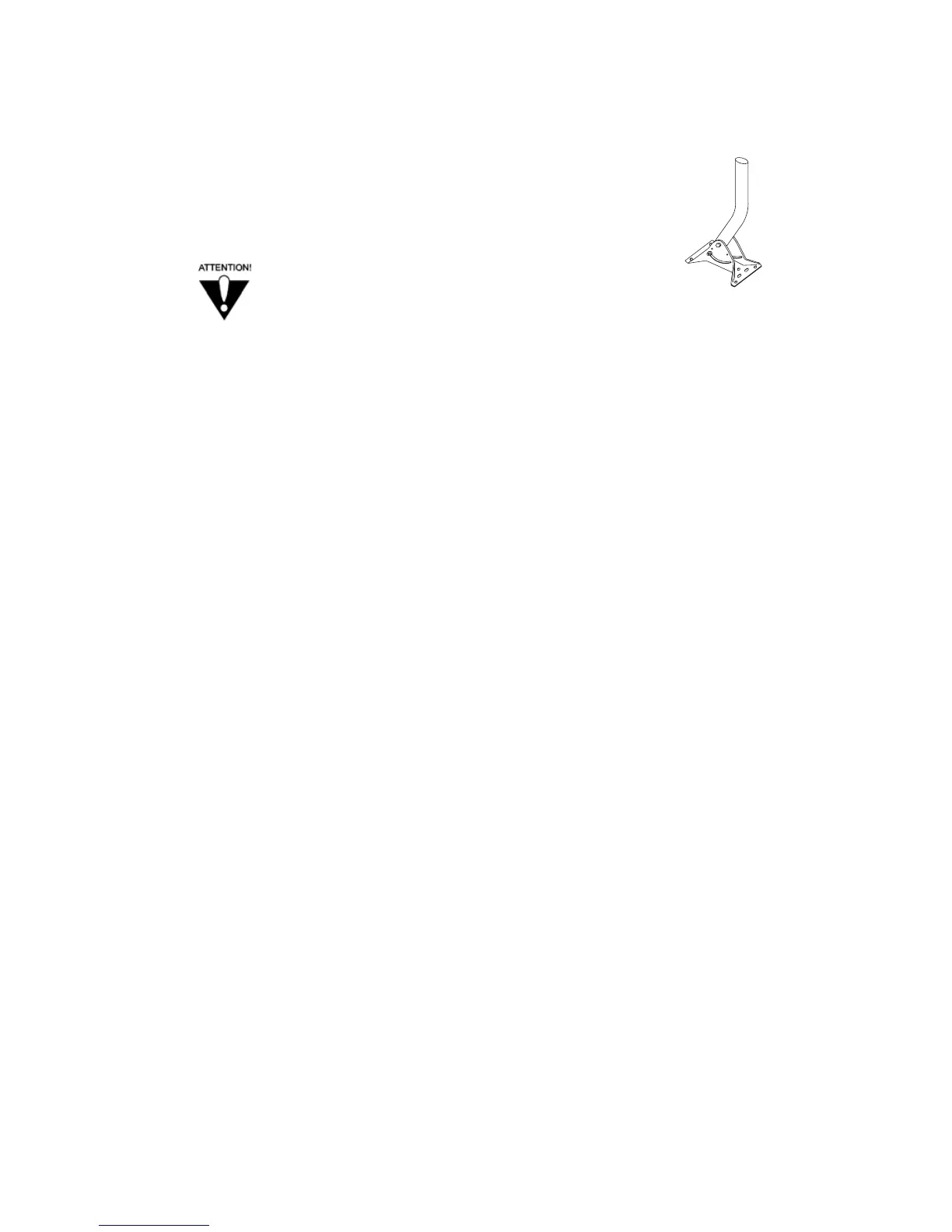

Mounting Brackets and Mast Assembly
The mounting bracket and mast assembly attaches the
dish and LNBF assembly to the mounting surface.
If you are planning to use a pole to mount the satellite
antenna, you will not need the mounting bracket and
mast assembly. However, we recommend you keep
them in case you decide to move the satellite antenna.
Optional Installation Kit
The Installation Kit is an optional product that contains the hardware and materials that
you would typically use during various types of installation. To buy the Installation Kit,
contact the location where your Bell ExpressVu system was purchased or call the
Customer Service Call Center at 1-888-SKY-DISH (1-800-759-3474).
The Installation Kit contains the following:
• Dual telephone adapter
• Dual grounding block
• 9.1-meter Grounding wire, either 8 gauge aluminum or 10 gauge copper
• 7.6-meter RG-6 (coaxial) cable with "F" connectors
• 30-meter RG-6 (coaxial) cable with "F" connectors
• 4 concrete anchors (3 1/8" x 1 7/8")
• 2 Lag bolts (3" x 5/16")
• 4 Cable ties
• 4 Lag bolts (2" x 5/16")
• Compass
• Silicone sealant
• 10 Cable clips for the coaxial cable
If you did not purchase the Installation Kit, but still plan to install your Bell ExpressVu
system yourself, we recommend that you gather the appropriate materials before
beginning installation. Note: Amount of RG-6 (coaxial) cable required will depend on
distance between LNBF and receiver.
The tools you will need to complete the installation will vary, depending on the type of
installation that you do. If you find that you do not have the tools and skills for a certain
procedure, call a professional, such as an Bell ExpressVu dealer or an electrician, for
assistance. These tools are not included in the Installation Kit.
Page I-3
Installation and Setup
Components of the Satellite Antenna
