Bell EXPRESSVU - Wiring Setup Diagram

Installation and Setup
Wiring Setup Diagrams
Page I-67

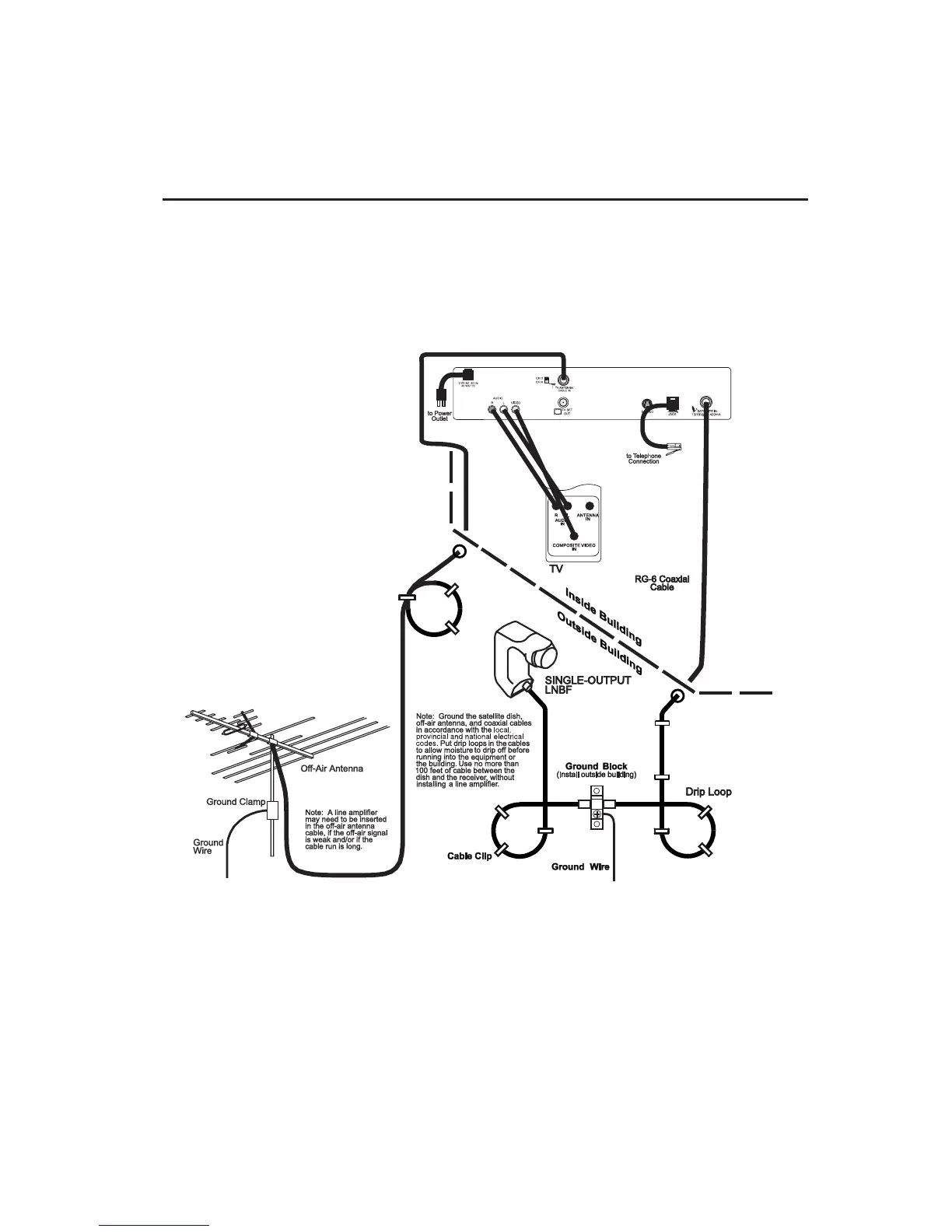

WIRING SETUP DIAGRAMS
These Installation Instructions provide only the basic wiring setup diagram below.
For more wiring setup diagrams, see the User Guide that came with the Bell ExpressVu
system.
Note: The off-air television antenna shown in the following diagram is optional.
