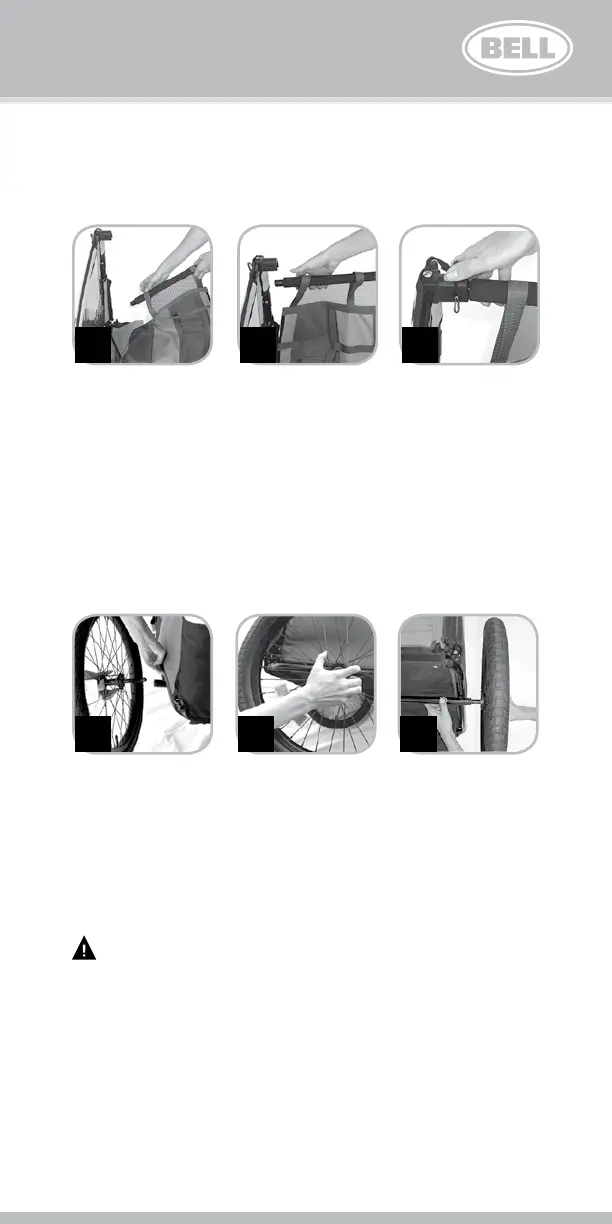

ASSEMBLING THE FRAME & SEAT
1A 1B 1C
Remove packaging and hardware bags from box and sort all contents. Unfold side
panels of trailer to the upright position. There is one crossbar that supports the side
panels and rear of the seat. As you swing this crossbar upward into position across
the top between the side panels, route it through the loops at the top of the seat.
Insert the crossbar into the upper sleeve. Insert grenade pin and lock the spring clip.
Figure 1A, 1B and 1C.
ATTACHING THE WHEELS
2A
2C
2B
Lift the rear of the frame enough to allow you to insert the wheel axle into the hole
in the side of the frame. Figure 2A.
Insert the axle all the way by pushing on the hub until you hear an audible click.
Check that the axle is secure and inserted fully by grabbing the center of the hub and
pulling away from trailer. Figure 2B.
WARNINGS: Do not operate the trailer if the wheel fails to lock into the frame
piece, as loss of control and/or injury to passenger(s) and/or operator may result.
To remove the wheels, reach underneath near the axle tube and push the spring
loaded pin while pulling the wheel away from the trailer. Figure 2C.
