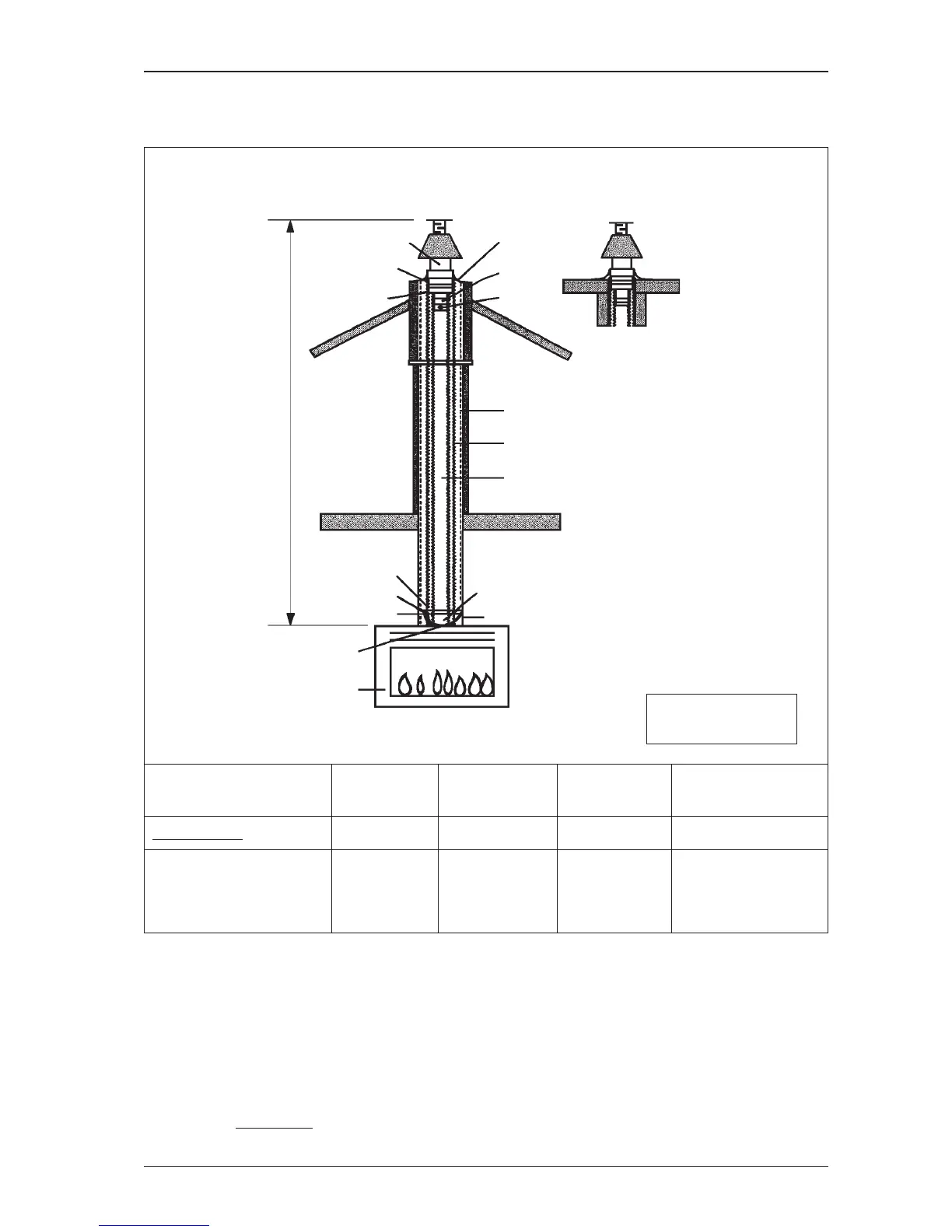

Figure 14: Vertical chimney outlet using an existing unsound lined
chimney or when no chimney liners are present
(Flexible Ø100 mm / Ø150 mm)
Appliance: Distance Y
(min.-max.)
All appliances, except… 2,0 - 11,0 m -
... Jersey
... Vertical Bell Small
2,0 - 11,0 m Width: B = 30 mm
... Vertical Bell Tunnel
... Horizon Bell Medium
Y
7
6
8
1832
31
29
30
29
26
29
27
28
29
4
1
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
Item descriptions:
see 3.4.2
Assemble
restriction plate
