Instructions for use and installation instructions
SMART - BELL
RIGID CONCENTRIC FLUE Ø100 mm - Ø150 mm SYSTEM CONNECTION
POSSIBILITIES
REAR CONNECTION

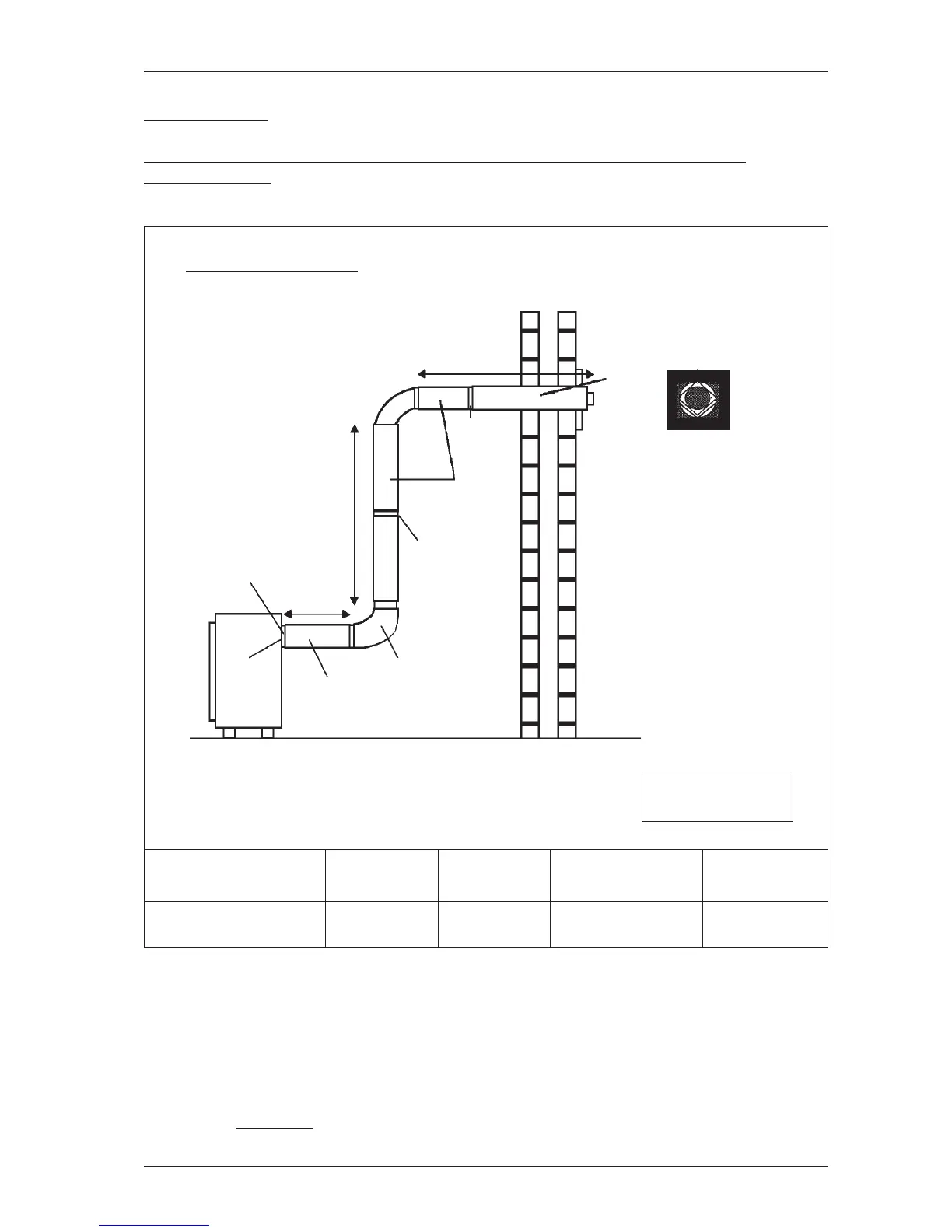

Figure 16: Horizontal wall termination
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
4
2
28
10, 12, 13
14, 15
23
19
X
1
Y
X
2
23
10, 11,
12, 13
Appliance: Distance X
1
Distance X
2
Y
(min.-max.) (min.-max.)
Smart Bell 0 - 0,5 m 0 - 0,6 m 1,0 - 3,0 m -
Item descriptions:
see 3.4.2
Wall
Termination
Position
Assemble
restriction plate
