Instructions for use and installation instructions
3.4.3 Gas connection
Operation (gas regulating block (and receiver)) within the appliance:
The gas connection Ø12 mm (3/8”) is located on the right-hand side of the appliance.
Operation (gas regulating block (and receiver)) outside the appliance (in the operating
unit):
The gas connection is situated where the operating unit is built in near to the appliance.
Use only gas piping with a minimum diameter of 1/2” and a shut-off valve.
3.4.4 Operating unit
If the appliance is fitted with a operating unit comprising gas control block and receiver,
this will be located, once it has been built in, at a maximum of 50 cm from the left or
right hand side of the appliance.
3.4.5 Convection package connections
When fitting a convection package, consideration should be given to the openings at
approximately 1 meter above the appliance for the warm air exiting grids.
If a convection package is to be fitted, the metal “insulation” shield at the top of the
appliance, must also be removed.
3.5 POSITIONING THE APPLIANCE
Important: The fire and fireplace must be mounted on a concrete floor.
If there is no concrete floor, it is essential to re-
enforce the floor boards from beneath with concrete.
Never place the appliance directly on the floor, but
always make sure that there is a clearence of at least
5 cm between the appliance and the floor.
Min. 5 cm
Min. 5 cm

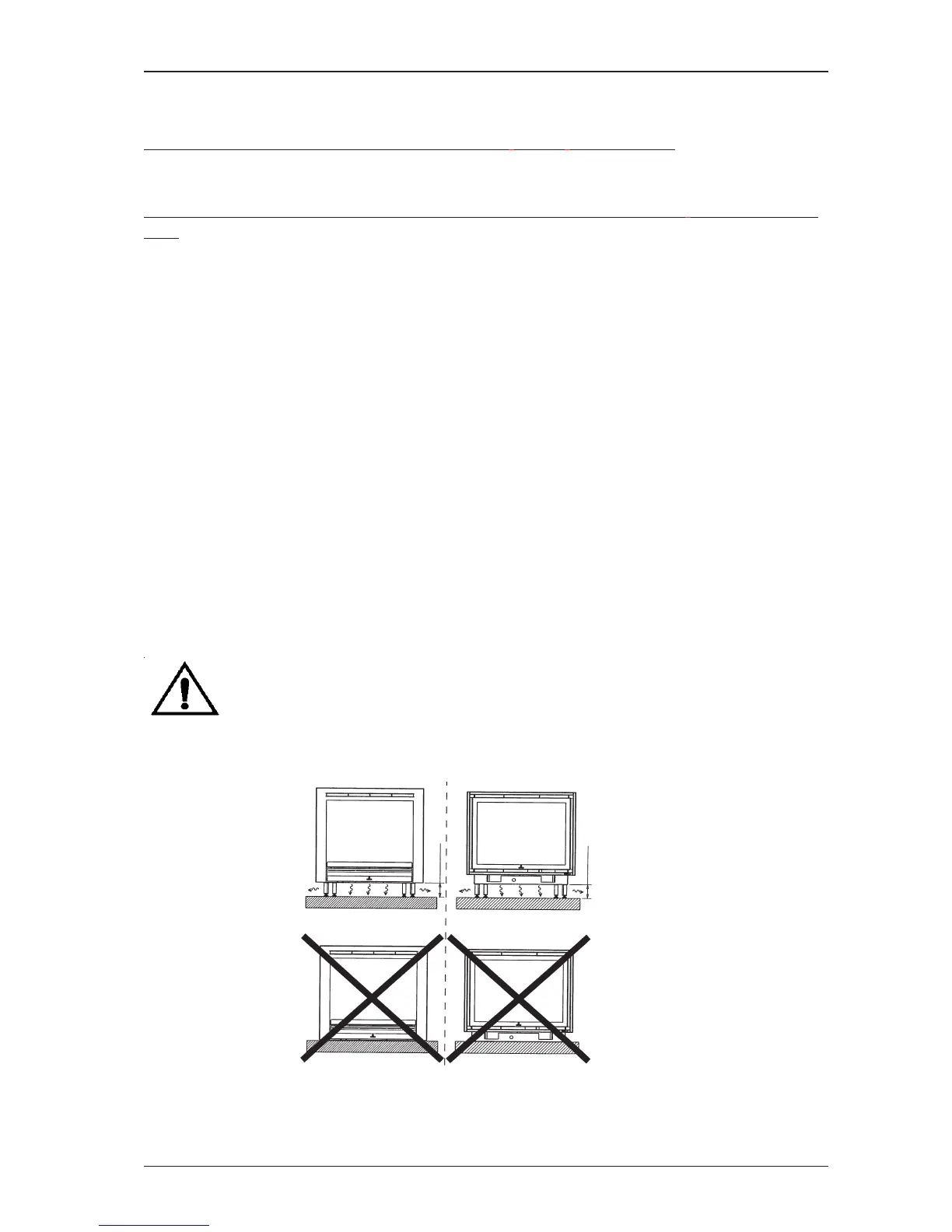

Figure 22: A clearence of at least 5 cm must be maintained between the
appliance and the floor.
