Instructions for use and installation instructions
Remote control
The photo below shows how the piping for a remote control gas regulating block must
be fitted.

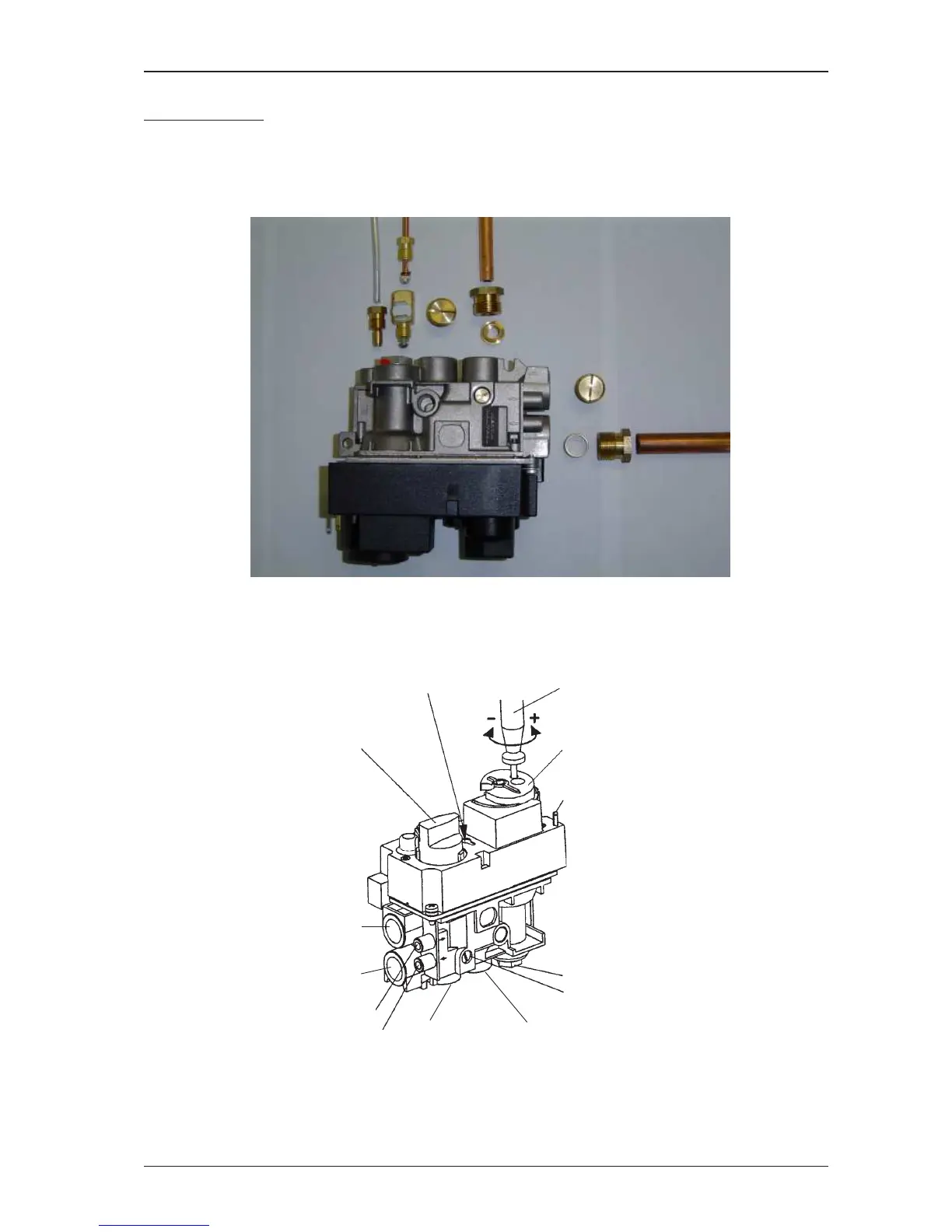

Figure 26: Gas regulating block Remote control
(Tab 2,8 x 0,8 mm)
Connection piezo cable
(Hand Control)
Side-inlet
Inlet Pressure Tap
Thermo Unit Connection
Minimum Rate Adjustment Screw
Motor-Knob
Operating-Knob
Pilot Gas Adjustment
(with Screwdriver)
Maximum Rate
Adjustment Screw
Side-outlet
Outlet Pressure Tap
Bottom Outlet
Bottom Inlet
