USING YOUR APPLIANCE
Wiring colour code: Bk-Black, Bn-Brown, Bu-Blue, Gn-Green, Or-Orange, R-Red, W-White, Y-Yellow, V-Violet
12345
LLLNN
Bu
Bu
Connector
No.1
Connector
No.5
Connector
No.2
Connector
No.6
Earth point left
hand side in top
comparment
R
R
R
R
Bu
Bu
Gn
Gn

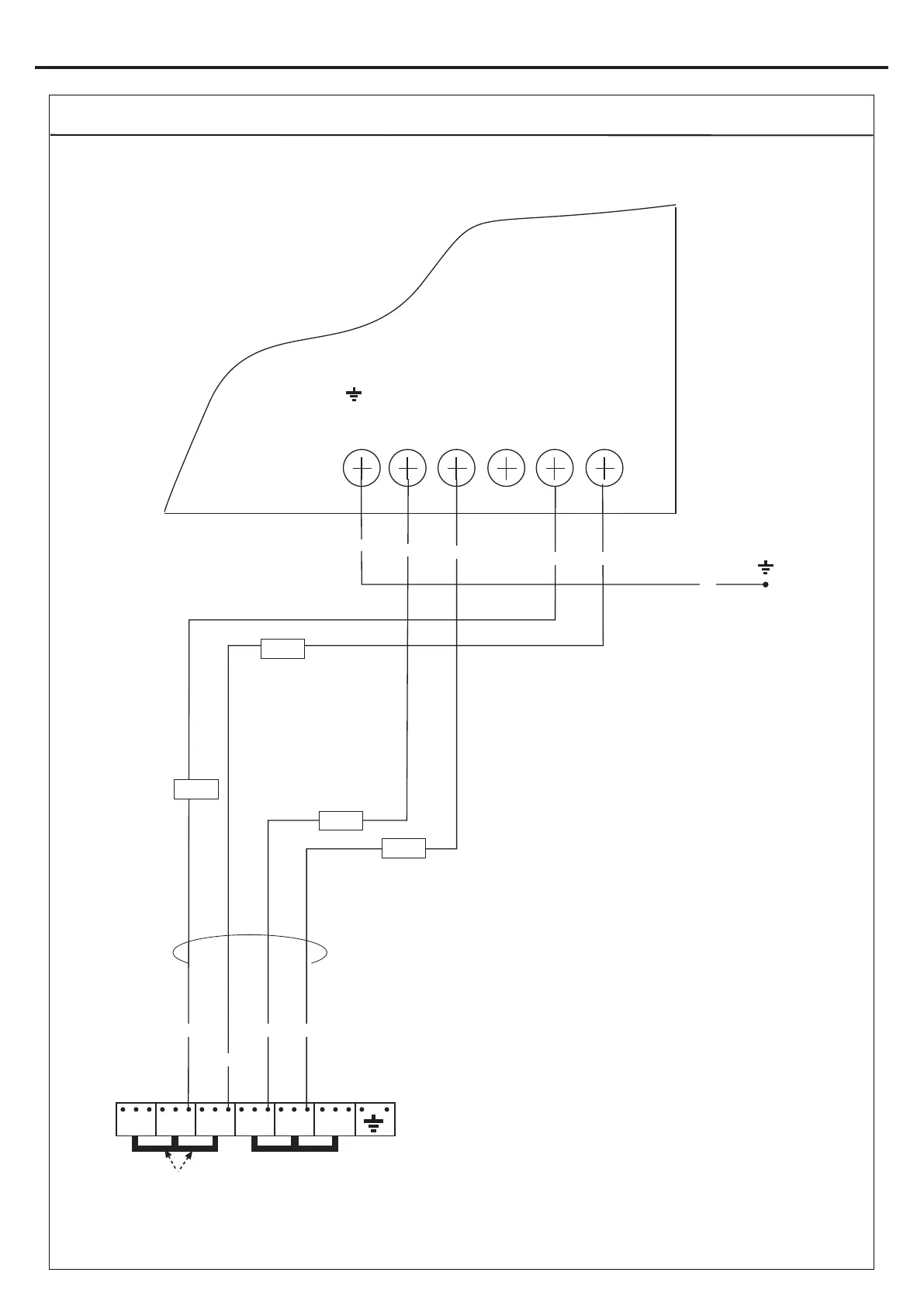

WIRING DIAGRAM- INDUCTION UNIT PAGE 3/3
INLET
TERMINAL
BLOCK
L1
L2 L3 4(N)
5(N)
Remove These Two Links for Multi-Phase Installations !
6(N)
BELLING RICHMOND/COOKCENTRE 1100Ei- AU
083753000
30.08.2018
